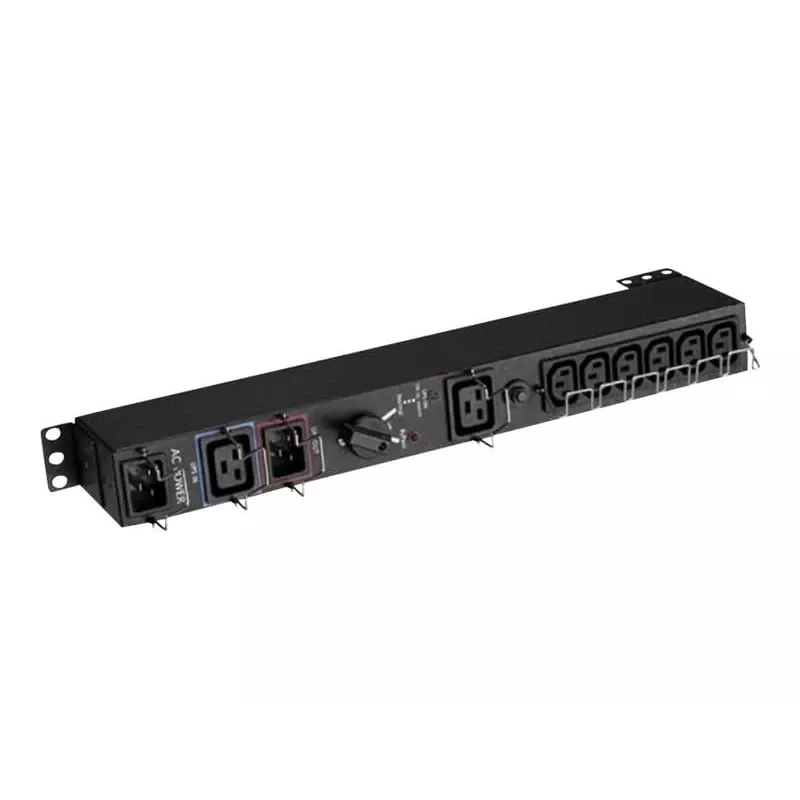

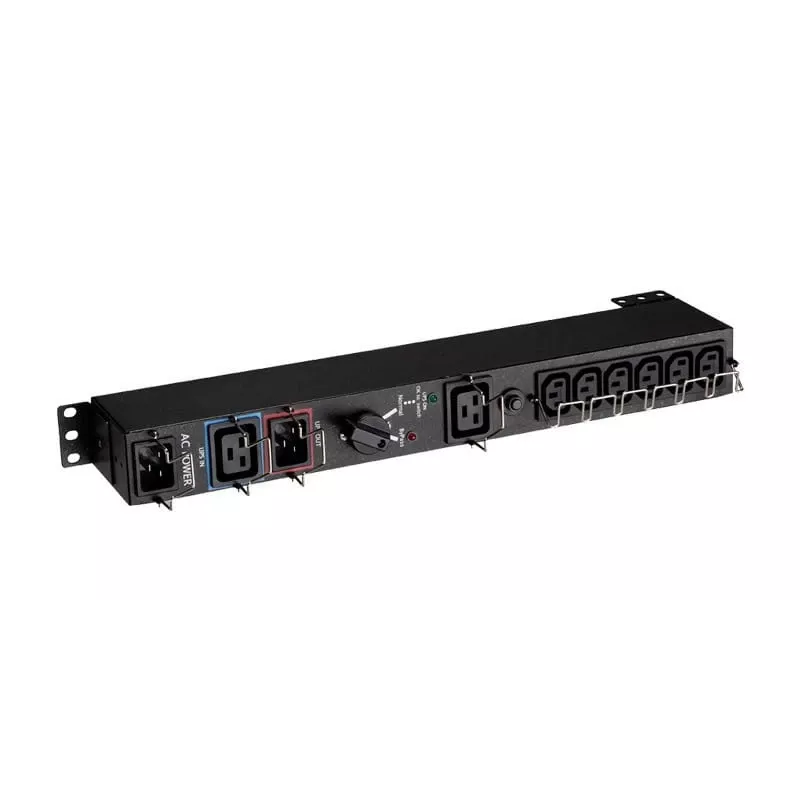

Eaton MBP3KI panel de bypass de mantenimiento (MBP) 220 - 240 V negro

The Eaton MBP3KI maintenance bypass panel (MBP) is a robust, rack-mountable bypass switch designed to add high availability to UPS systems up to 3,000 VA. Operating at 220–240 V AC, this black unit enables seamless replacement or servicing of a connected UPS without interrupting power to protected devices. It offers versatile mounting options, including rack enclosures, wall mounting, or direct attachment to the rear of a Pulsar UPS, with flexible orientation for optimal space utilization.

Key features

• Hot-swap capability allows UPS maintenance or upgrade without power disruption to connected equipment
• Supports UPS systems up to 3,000 VA with input voltage range of 220–240 V AC
• Rack-mountable in standard 19-inch enclosures with 2U height (48.3 cm width x 12 cm depth)
• Input connector: 1 x power IEC 60320 C20 16A
• Output connectors: 6 x IEC connector plus 1 x IEC connector (total 7 output connections)
• Multiple mounting options: rack, wall, or rear of UPS with front-facing or rear-facing orientation on left or right side
• Black finish for professional integration in data center or server room environments
