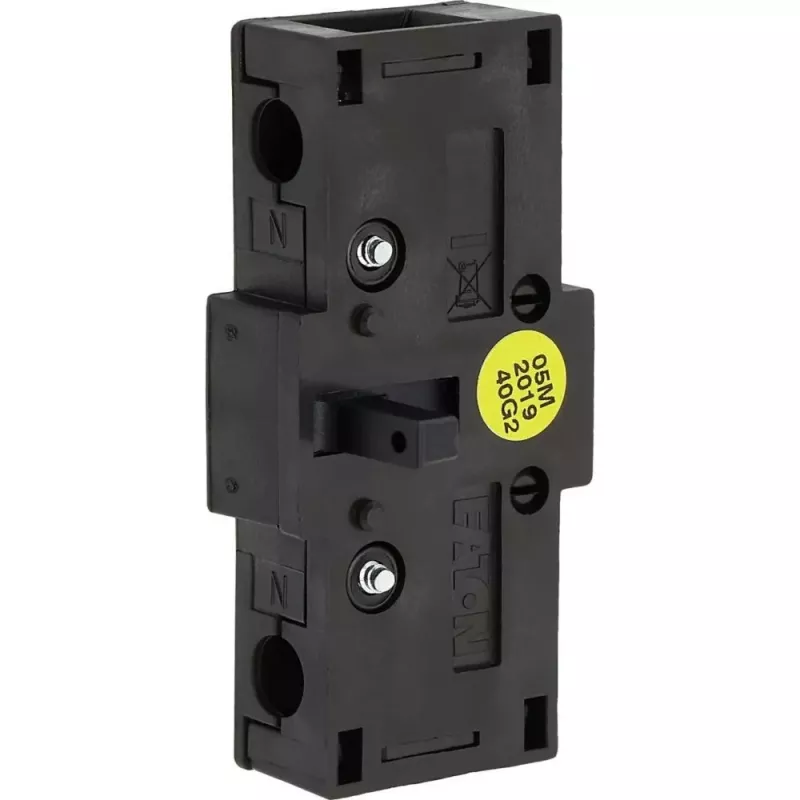

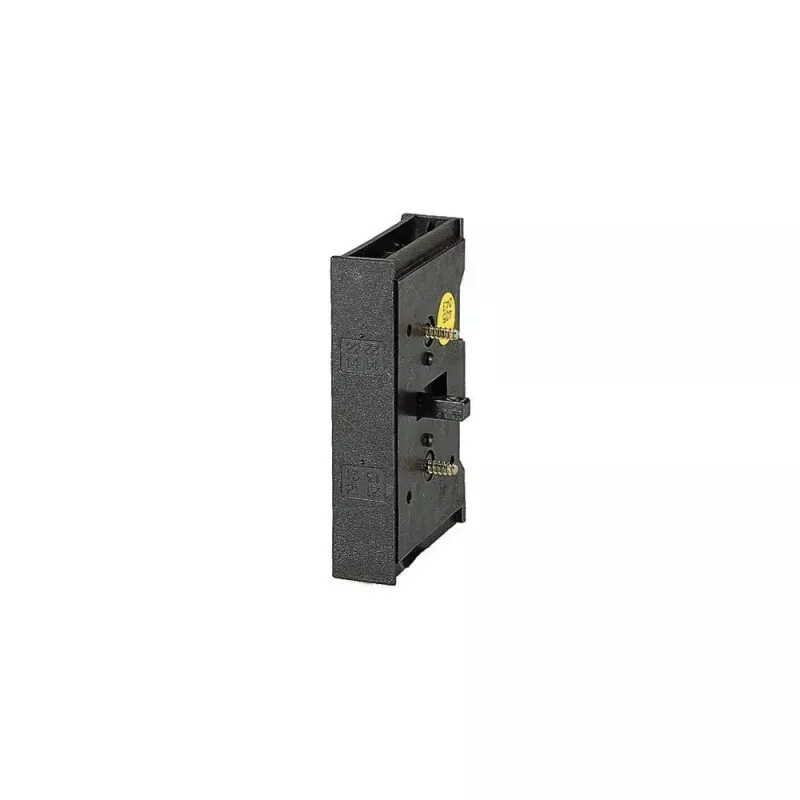

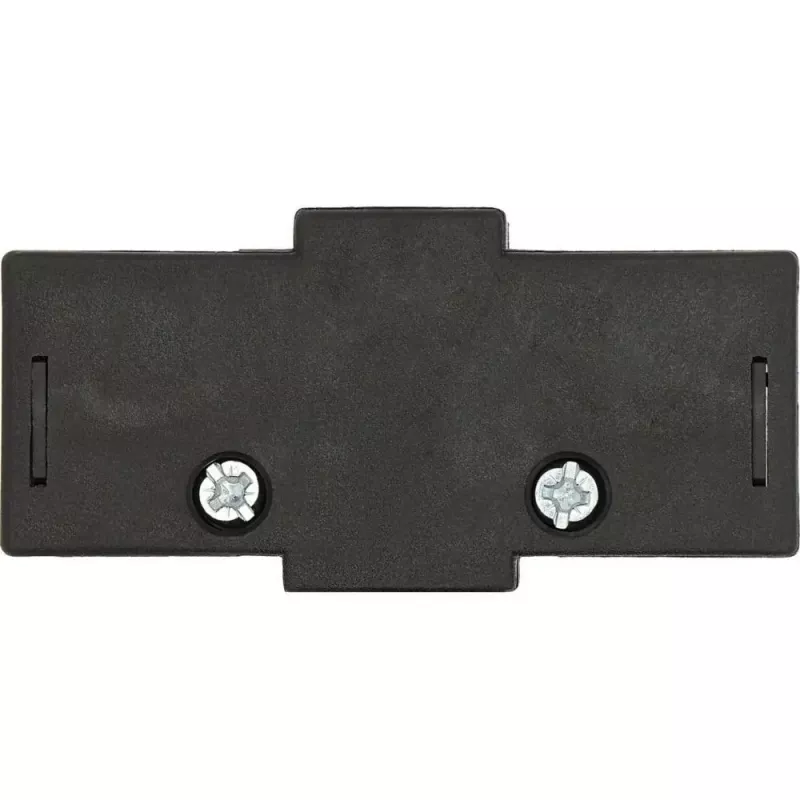

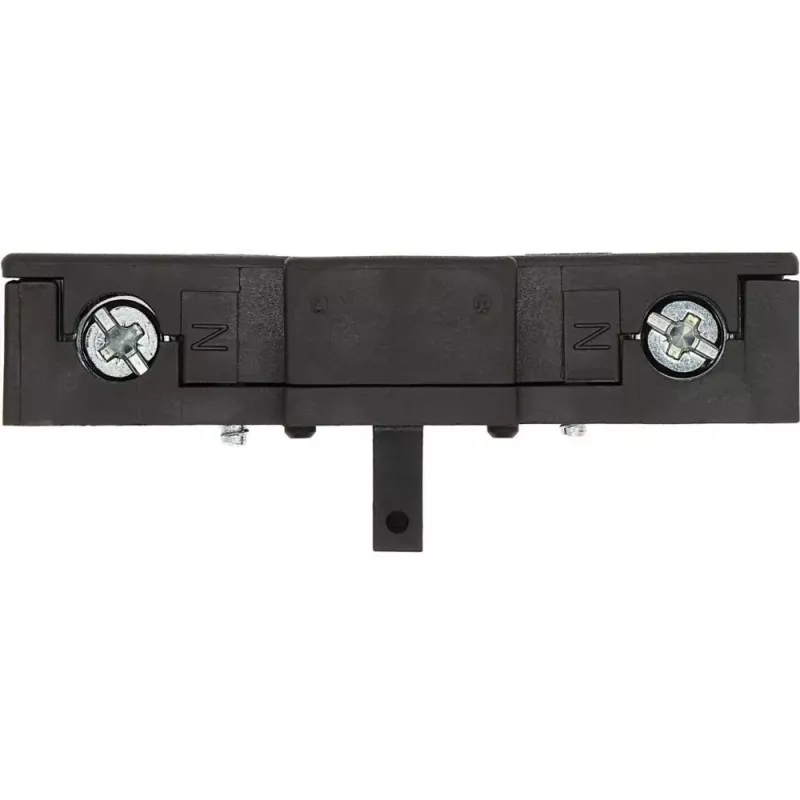

Eaton módulo de neutro N-P1Z para interruptores principales serie P1, 1 polo, montaje lateral 000652

In industrial and commercial electrical installations, main switches and switch-disconnectors often require a separate switching of the neutral conductor to ensure safe isolation and compliance with installation regulations. The Eaton N-P1Z neutral conductor module addresses this need by providing a dedicated 1-pole switching function for the neutral line, designed to be mounted directly onto compatible P1 series main switches.

Who is it for

This module is intended for electricians, panel builders, and maintenance professionals working with Eaton P1 series switch-disconnectors in distribution boards and control panels. It is suitable for applications where the neutral conductor must be switched simultaneously with the phase conductors for safe isolation and maintenance.

Main features

• Switchable neutral conductor module for P1 series main switches
• 1-pole design for neutral line switching
• Side mounting on main switch for compact integration
• Rated operational current up to 63 A (depending on main switch)
• Rated operational voltage up to 690 V AC (depending on main switch)
• Screw terminal connections for secure wiring
• Complies with IEC/EN 60947 standards

Specifications

• Product Type: Switchable Neutral Conductor Module
• Compatibility: Eaton P1 Series Main Switches / Switch-Disconnectors
• Number of Poles: 1-pole
• Function: Switching of Neutral Conductor
• Mounting Type: Side mounting (on main switch)
• Accessory Type: Add-on Module
• Rated Operational Current (Ie): Up to 63 A (depending on main switch)
• Rated Operational Voltage (Ue): Up to 690 V AC (depending on main switch)
• Suitable For: Main switch, Switch-disconnector
• Series: P1
• Connection Type: Screw terminals
• Standards: IEC/EN 60947
• Application: Industrial and Commercial Electrical Installations
• Electrical Component Type: Auxiliary/Control Component

Tips

Verify the compatibility with your specific P1 series main switch model before installation. Ensure that the rated current and voltage of the module match the main switch and the application requirements. Follow all applicable electrical codes and safety practices during installation.
