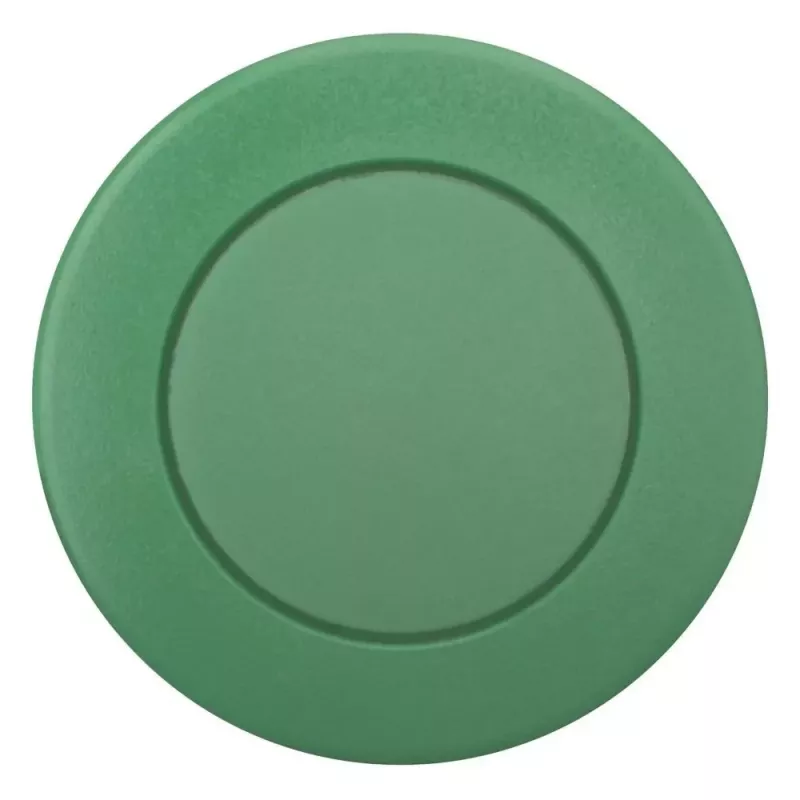

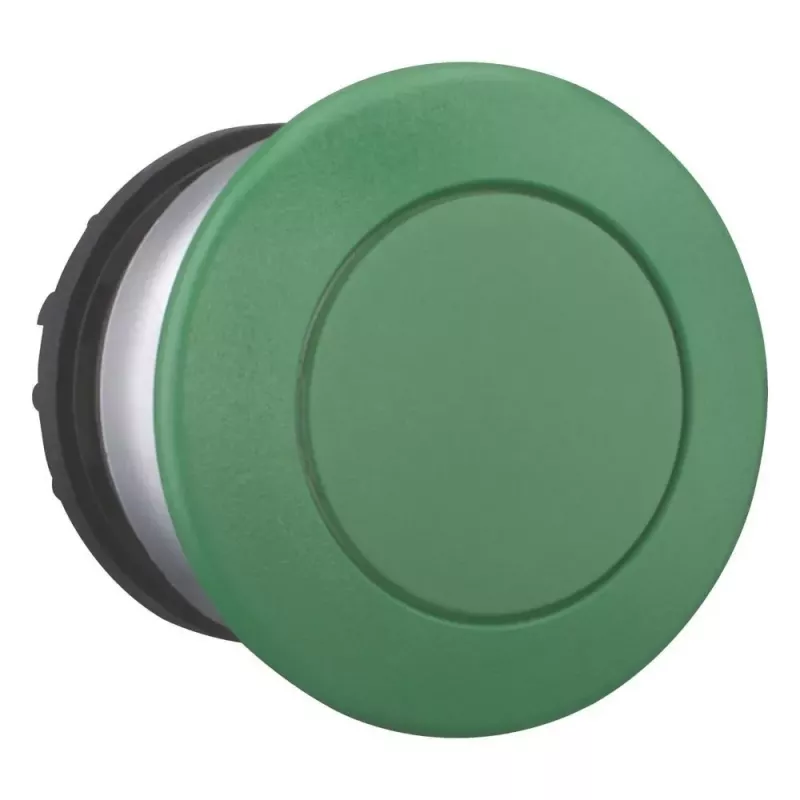

Eaton Moeller M22-DRP-G accionamiento de pulsador de seta, verde, enclavado, sin rotular 216747

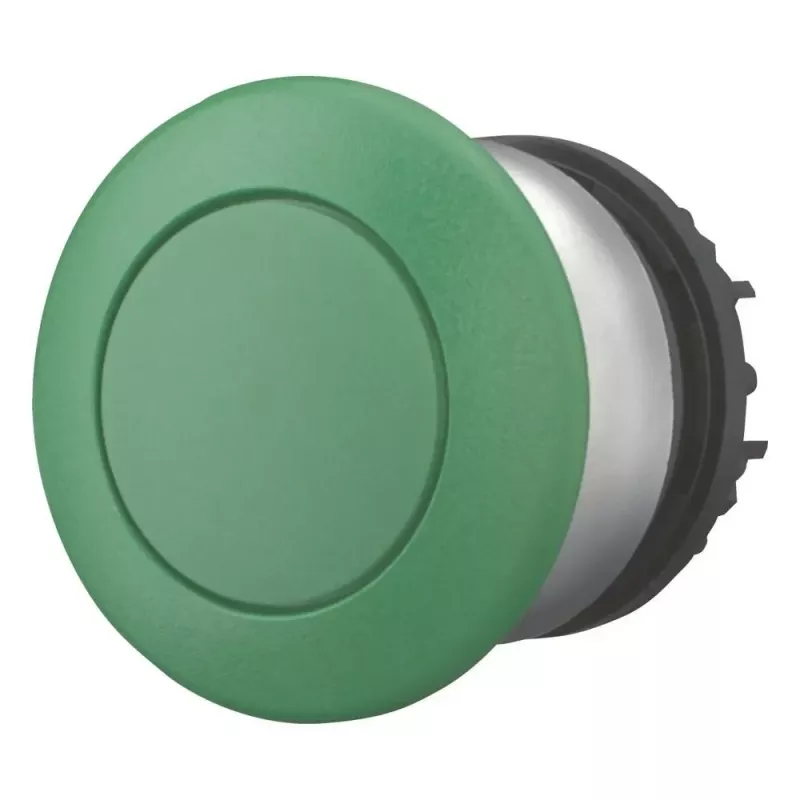

Industrial control panels and machine interfaces rely on clear, durable emergency stop and start functions. The Eaton Moeller M22-DRP-G mushroom pushbutton actuator provides a latching green button with a blank face, ready for custom labeling or simple status indication. Its 38 mm head diameter and robust plastic construction suit frequent use in manufacturing, packaging, and automation environments.

Key specifications

• Actuator type: Mushroom pushbutton actuator
• Actuator colour: Green
• Operation type: Latching (maintained)
• Labeling: Blank (unlabeled)
• Mounting hole diameter: 22.5 mm
• Series: Eaton Moeller M22
• Front ring material: Plastic
• Front ring colour: Black
• Head diameter: 38 mm
• Material: High-grade plastic
• Mechanical life: > 500,000 operations
• Ambient operating temperature: -25 to +70 °C
• Number of actuating positions: 2
• Compatibility: M22 contact blocks and LED elements

Why choose it

The M22-DRP-G is part of Eaton's modular M22 series, allowing you to combine the actuator with a wide range of contact blocks and LED elements. Its latching action keeps the button in the pressed or released position until manually reset, which is ideal for maintaining a selected state in control circuits. The blank face offers flexibility for custom engraving or simple colour-coded indication.

Ideal use cases

• Machine start/stop control stations
• Conveyor system control panels
• Packaging machinery interfaces
• Automation and process control

Good to know

The actuator mounts in a standard 22.5 mm hole and is designed for use with Eaton M22 contact blocks (sold separately). The front ring is black, providing a clear contrast with the green mushroom head.
