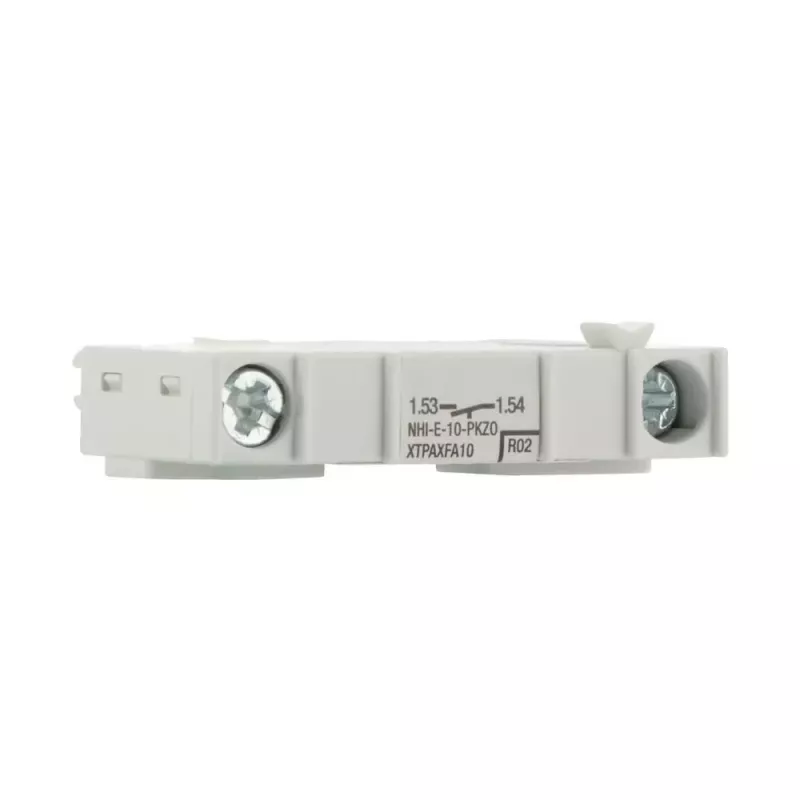

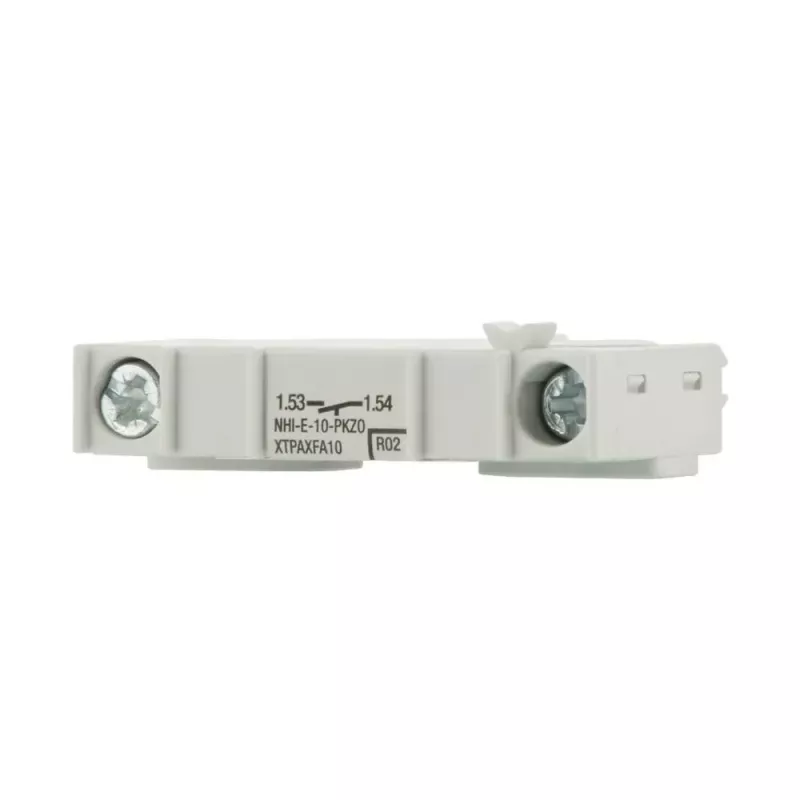

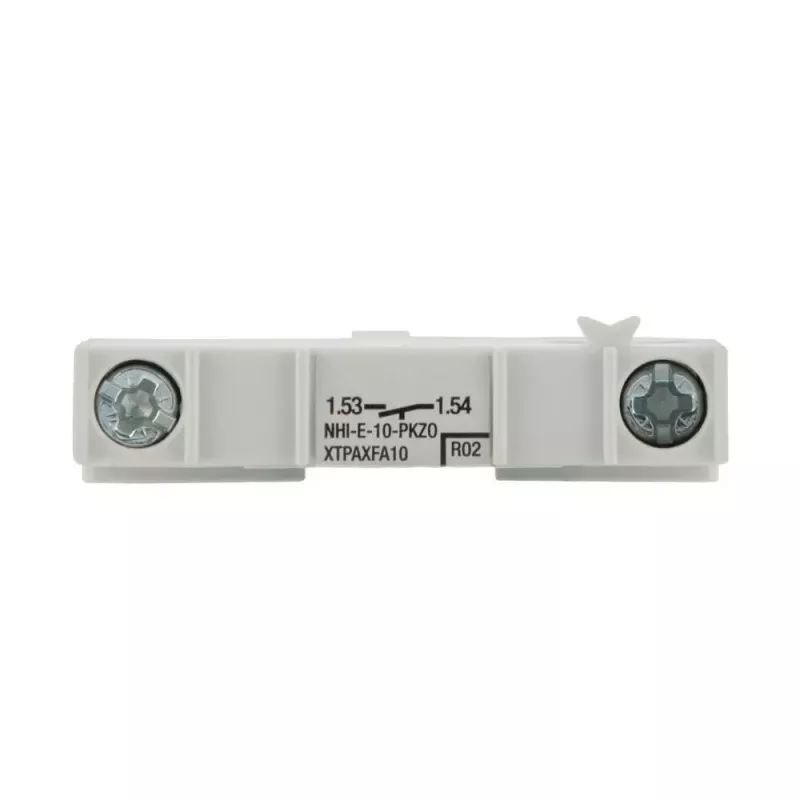

Eaton NHI-E-10-PKZ0 bloque de contactos auxiliares, 1 NA, montaje lateral, blanco, para guardamotores PKZ0 082884

The Eaton NHI-E-10-PKZ0 is an auxiliary contact block engineered for side mounting on PKZ0 motor protective circuit breakers. It provides one normally open contact to signal the breaker's switching state, enabling reliable status monitoring in control circuits. Its white housing is designed for industrial environments, with an operating temperature range from -25 to 55 °C.

Highlights

• 1 normally open (NO) auxiliary contact
• Side mounting on Eaton PKZ0 motor protective circuit breakers
• Rated insulation voltage 690 V AC
• Rated impulse withstand voltage 6 kV
• AC-15 operational current 6 A at 230 V
• DC-13 operational current 0.1 A at 220 V
• Operating temperature -25 to 55 °C
• IP20 degree of protection
• Screw terminals

Full specifications

• Contact configuration: 1 NO
• Mounting type: side mounting
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (Ie) AC-15: 6 A at 230 V
• Rated operational current (Ie) DC-13: 0.1 A at 220 V
• Operating temperature range: -25 to 55 °C
• Storage temperature range: -40 to 80 °C
• Degree of protection: IP20
• Colour: white
• Number of auxiliary contacts: 1
• Terminal type: screw terminals
• Product type: auxiliary contact block
• Series: PKZ0

Final note

The NHI-E-10-PKZ0 integrates directly with Eaton PKZ0 breakers, offering a compact signalling solution for motor protection circuits.
