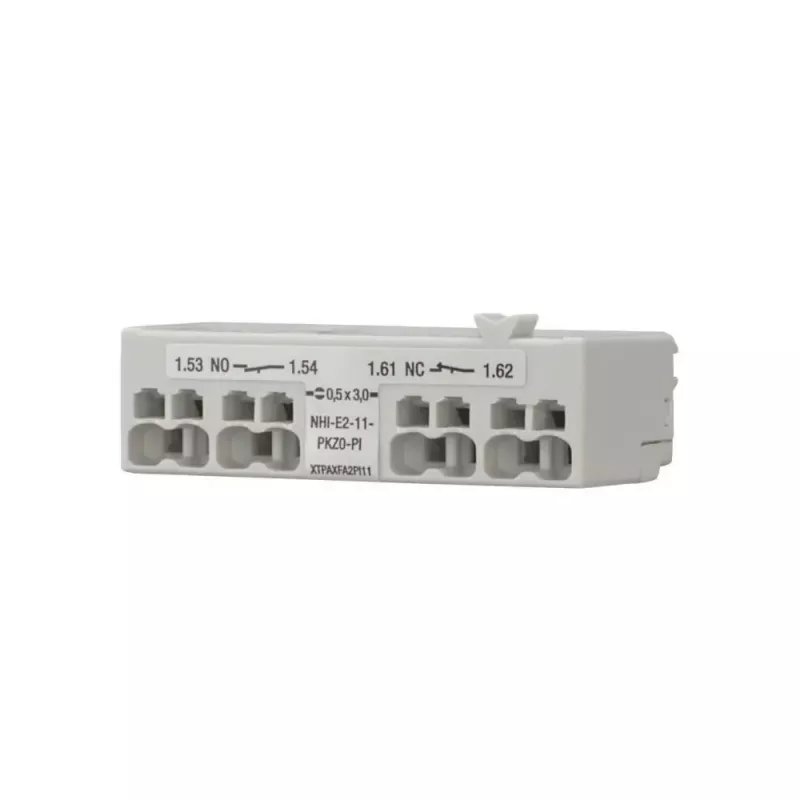

Eaton NHI-E2-11-PKZ0-PIEP-401015 bloque de contactos auxiliares, 1 NA, conexión por tornillo, 690 V, 6 A

The Eaton NHI-E2-11-PKZ0-PIEP-401015 is a high-quality auxiliary contact block from the NHI-E series, designed for use with Eaton PKZ0, PKE, and DILM series motor starters and contactors. This side-mounted auxiliary switch provides reliable signal feedback and control functionality in industrial automation applications.

Advantages

Compact design for space-saving installation; robust screw terminals ensure secure wiring; high electrical durability for long service life; compatible with a wide range of Eaton devices.

Suitable for

• Industrial control panels
• Motor control centers
• Automation systems requiring auxiliary contacts

Key specifications

• Contact Configuration: 1 Normally Open (NO)
• Rated Operational Current (AC-15, 230V): 6 A
• Rated Operational Current (AC-15, 400V): 3 A
• Rated Operational Voltage (Ue): Max 690 V AC
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Terminal Type: Screw Terminals
• Degree of Protection: IP20
• Standards: IEC/EN 60947-5-1
• Connection Capacity: 1 x (0.75 - 2.5 mm²) solid/stranded, 2 x (0.75 - 2.5 mm²) stranded
• Ambient Operating Temperature: -25 to +60 °C

Recommendations

For optimal performance, ensure proper torque settings for screw terminals and use appropriate cable sizes. This auxiliary contact block is ideal for signaling and control circuits in industrial environments.
