Eaton NZM1-XHBR empuñadura giratoria, negra/roja/amarilla, IP66, 85x85 mm, para NZM1/PN1/N(S)1 266632

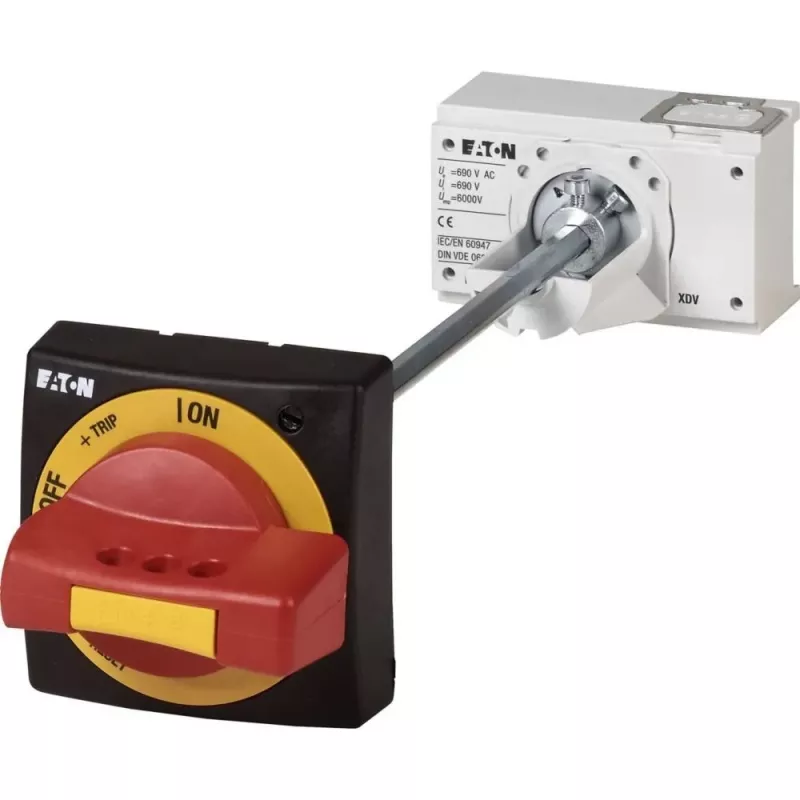

The Eaton NZM1-XHBR rotary handle brings direct, lockable ON/OFF control to NZM1, PN1 and N(S)1 circuit breakers. Its 85 x 85 mm front plate and IP66 rating make it a dependable choice for door-mounted main and emergency-stop switching in demanding environments.

Highlights

• Black handle with red indicator and yellow background plate for clear status recognition
• IP66 protection against dust and powerful water jets
• Lockable in OFF position with up to 3 padlocks for safe maintenance
• Fits Eaton NZM1, PN1 and N(S)1 series circuit breakers
• Door mounting with 85 x 85 mm front plate

In daily use

The handle’s colour coding and robust construction support quick switching and visible status indication. Locking in the OFF position helps prevent accidental re-energisation during service work.

Full specifications

• Product type: Rotary handle
• Compatibility: Eaton NZM1, PN1, N(S)1 series
• Colour: Black handle, red indicator, yellow plate
• Ingress protection: IP66
• Mounting: Door mounting
• Locking: Up to 3 padlocks in OFF position
• Front plate dimensions: 85 x 85 mm
• Depth: 60 mm
• Material: High-quality plastic
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Function: ON/OFF switching
• Application: Main switch, emergency stop switch

Final note

One rotary handle per pack, ready for integration with Eaton NZM1, PN1 and N(S)1 breakers.
