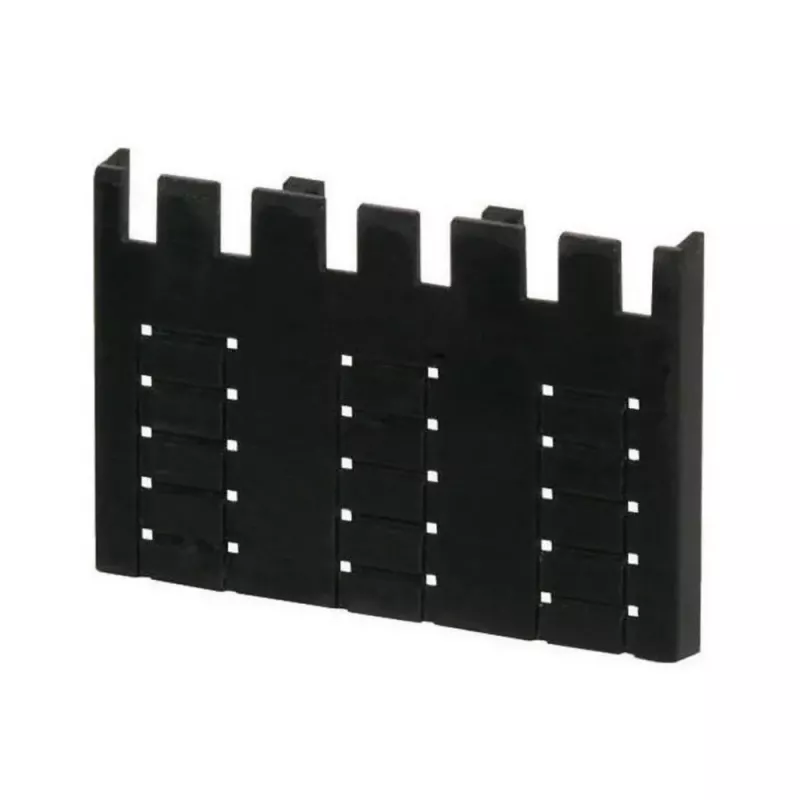

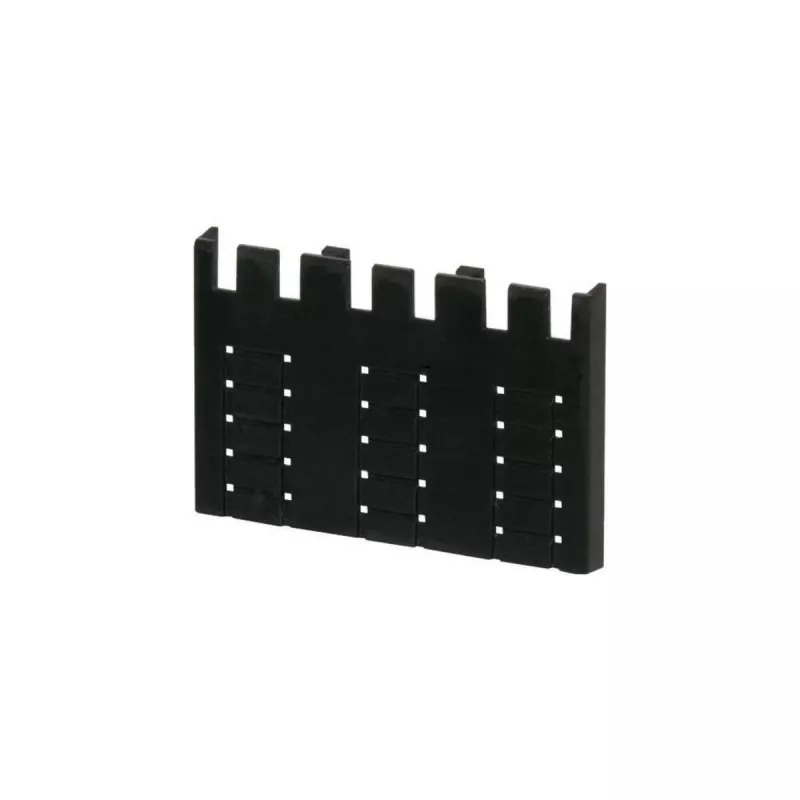

Eaton NZM1-XKSFA cubierta de bornes para interruptor automático NZM1 100780

Direct contact protection for Eaton NZM1 circuit breakers, providing IP20 protection when installed. This terminal cover is a snap-on accessory that shields live terminals, enhancing safety in electrical installations.

Overview

The Eaton NZM1-XKSFA is a terminal cover designed for use with NZM1 series circuit breakers. It provides direct contact protection by covering the connection terminals, preventing accidental contact with live parts. The cover is made of insulating plastic, is grey in colour, and is halogen-free and flame retardant. It is suitable for both 3-pole and 4-pole devices, as a set covers the complete device.

What stands out

• Direct contact protection (IP20 when installed)
• Compatible with Eaton NZM1, N(S)1, and N(S)1-4 series
• Snap-on mounting for quick installation
• Halogen-free and flame-retardant plastic
• Set covers both 3-pole and 4-pole devices

Technical details

• Product type: Terminal cover
• Accessory type: Direct contact protection
• Compatibility: Eaton NZM1, N(S)1, N(S)1-4
• Number of poles covered: 3-pole / 4-pole (set for complete device)
• Material: Insulating plastic
• Colour: Grey
• Mounting method: Snap-on / clip-on
• Protection degree (installed): IP20
• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +80°C
• Flame retardant: Yes
• Halogen-free: Yes
• RoHS compliant: Yes
• REACH compliant: Yes

Our verdict

A reliable and essential safety accessory for Eaton NZM1 circuit breakers, ensuring compliance with electrical safety standards by preventing accidental contact with live terminals.
