EATON P1-32/I2/SVB interruptor principal 32A 3 polos montaje en superficie con función de parada de emergencia 207314

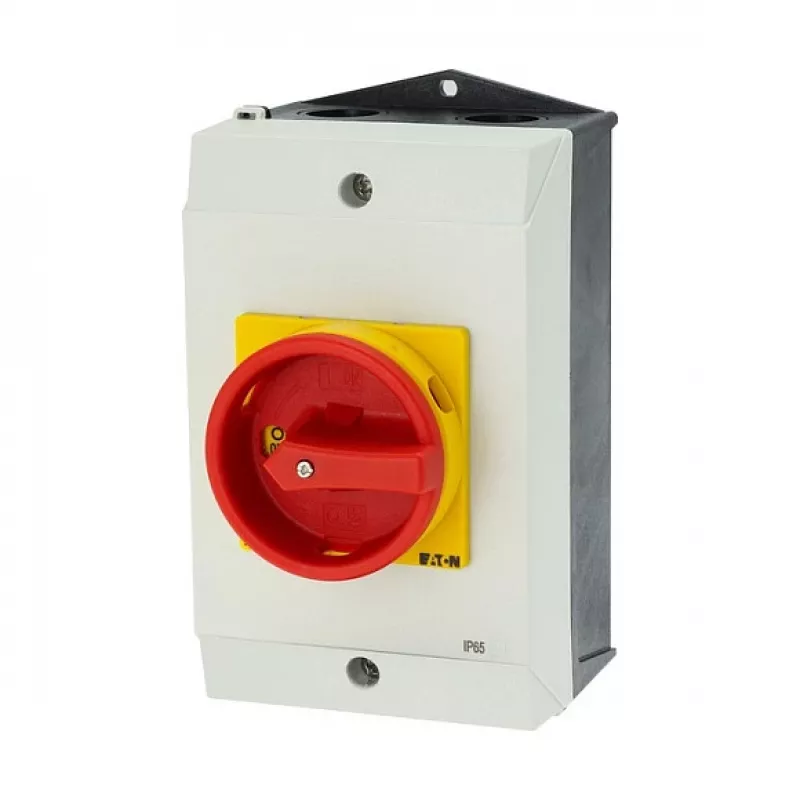

This EATON P1-32/I2/SVB is a robust 3-pole main switch with integrated emergency stop function, engineered for surface mounting in industrial control and distribution applications. With a rated uninterrupted current of 32 A and operational voltage up to 690 V AC, it reliably disconnects power and provides a safe stop function in critical situations. The red handle and yellow front plate ensure high visibility and quick identification, while the IP65 front protection makes it suitable for demanding environments.

Advantages

The switch offers a compact design with screw terminals for secure wiring and a clear 0-1 switching position. Its insulated housing and compliance with IEC/EN 60947 and VDE 0660 standards guarantee safety and durability. The emergency stop function is integrated, allowing immediate manual interruption of the power supply. The operating temperature range from -25 to +50 °C ensures reliable performance in a wide variety of industrial settings.

Suitable for

• Main switch in industrial control panels
• Emergency stop applications in machinery
• Power distribution and motor control circuits
• Surface mounting in workshops and production lines

Key specifications

• Number of poles: 3
• Rated uninterrupted current: 32 A
• Rated operational voltage: 690 V AC
• Switching function: Main switch, emergency stop
• Mounting type: Surface mounting
• Protection degree (front): IP65
• Protection degree (terminals): IP20
• Connection type: Screw terminal
• Handle colour: Red
• Front plate colour: Yellow
• Number of switch positions: 2 (0-1)
• Rated power AC-23A, 400V: 15 kW
• Rated power AC-3, 400V: 11 kW
• Standards: IEC/EN 60947, VDE 0660

Recommendations

For reliable power isolation and emergency stop functionality in industrial environments, the EATON P1-32/I2/SVB is an excellent choice. Ensure proper wiring by a qualified electrician and verify that the switch is mounted in a location accessible for emergency operation.
