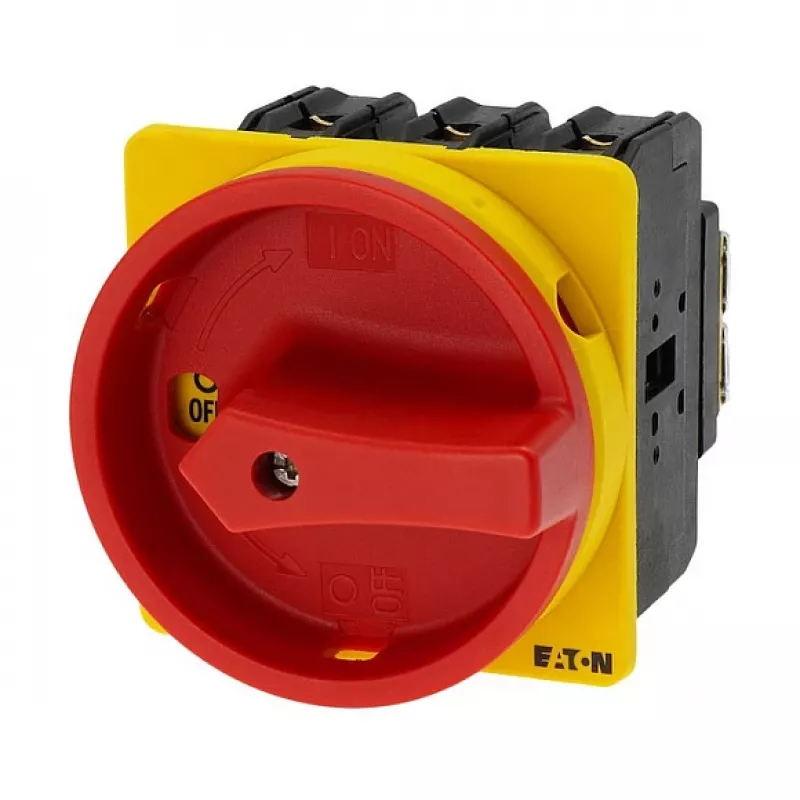

Eaton P3-63/EA/SVB interruptor principal 63A 3 polos paro de emergencia empotrable rojo/amarillo

In industrial and commercial electrical installations, the ability to reliably disconnect power and provide emergency stop functionality is critical for safety and operational control. The Eaton P3-63/EA/SVB main switch addresses this need with a robust, panel-mounted solution that combines high switching capacity with clear visual status indication. This 3-pole switch (with neutral option) is rated for 63 A and up to 690 V AC, making it suitable for a wide range of power distribution and motor control applications. Its red handle and yellow locking ring ensure immediate recognition as an emergency stop device, while the lockable OFF position prevents unauthorized re-energization during maintenance.

Who is it for

This switch is ideal for electrical panel builders, machine OEMs, and maintenance engineers who require a dependable main disconnect or emergency stop switch for industrial machinery, control cabinets, and power distribution boards. It is particularly suited to applications where safety regulations demand a lockable isolation point and clear emergency stop indication.

Main features

• Rated operational current of 63 A and voltage up to 690 V AC, suitable for demanding industrial loads.
• 3-pole configuration with optional neutral (4-pole), providing flexibility for various circuit designs.
• Emergency stop function: red handle and yellow locking ring ensure high visibility and quick identification.
• Lockable in the OFF (0) position, allowing secure isolation during maintenance or repair.
• Flush mounting design for integration into control panels and enclosures.
• High degree of protection: IP65 on the front, IP20 on terminals.

Specifications

• Switch type: Main switch / Emergency stop switch
• Number of poles: 3-pole + N (4-pole)
• Rated operational current (Ie): 63 A
• Rated operational voltage (Ue): 690 V AC
• Mounting type: Flush mounting
• Handle colour: Red
• Locking ring colour: Yellow
• Lockability: Lockable in 0 (Off) position
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated conditional short-circuit current (Iq): 6 kA (with 63A gG/gL fuse)
• Rated power (AC-23A, 400V): 30 kW
• Rated power (AC-3, 400V): 22 kW
• Terminal type: Screw terminals
• Standards: IEC/EN 60947
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Operating temperature range: -25 to +50 °C
• Function: Emergency switching off

Tips

When installing, ensure the switch is mounted in a location that is easily accessible in an emergency. Use appropriate cable lugs and torque settings for screw terminals to maintain reliable connections. For enhanced safety, implement a lockout/tagout procedure using the lockable OFF position.
