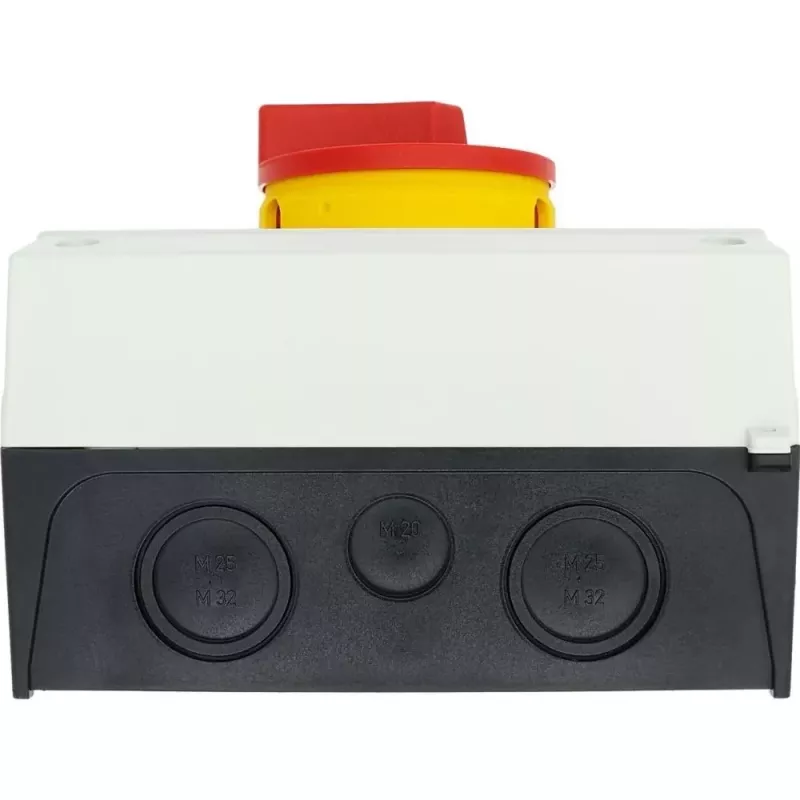

Eaton P3-63/I4/SVB/N interruptor principal 3 polos con función de parada de emergencia, 63 A, rojo/amarillo 207349

The Eaton P3-63/I4/SVB/N is a 3-pole main switch with emergency switching off function, rated for 63 A. Its red handle and yellow locking ring provide clear visual indication for safety-critical disconnection tasks, setting it apart from standard disconnect switches.

Highlights

• 3-pole configuration for three-phase circuits
• 63 A rated operational current
• Emergency switching off (EMO) function

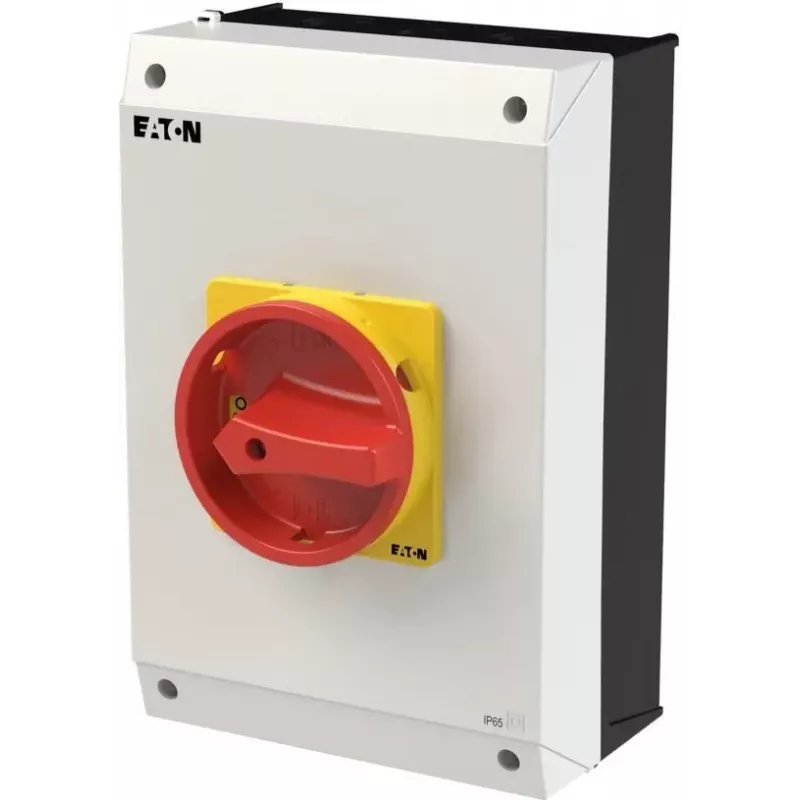

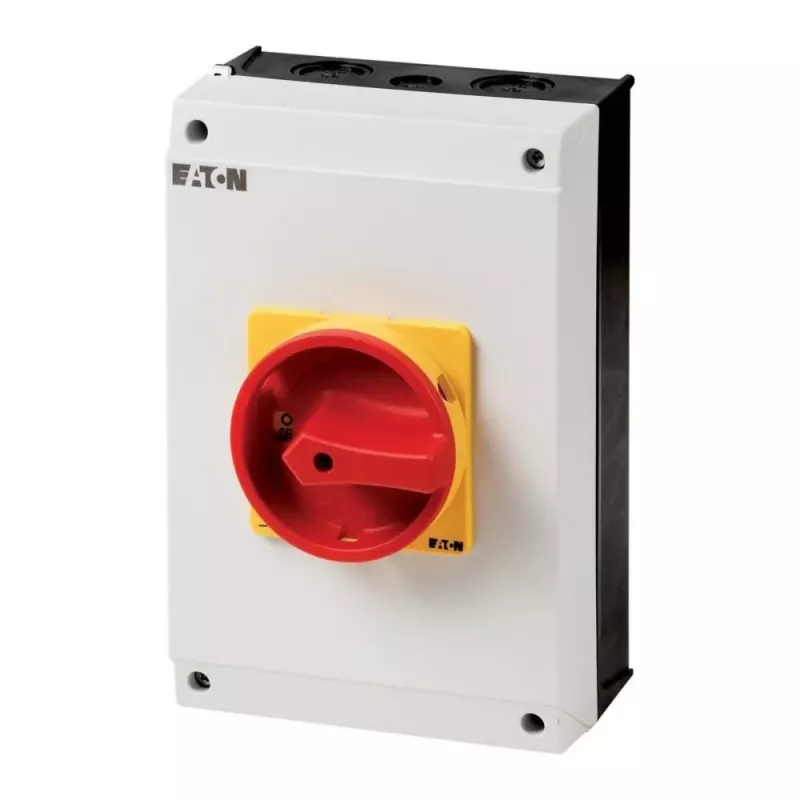

• Red handle and yellow locking ring for high visibility
• Surface mounting for straightforward installation
• Screw terminals for secure wiring

In daily use

This switch is suitable for industrial control panels and machinery where a reliable means of isolation and emergency stop is required. The 90° switching angle allows quick operation, and the IP65 front protection supports use in dusty or wet environments.

Full specifications

• Number of poles: 3
• Rated operational current: 63 A
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Switching function: Emergency switching off

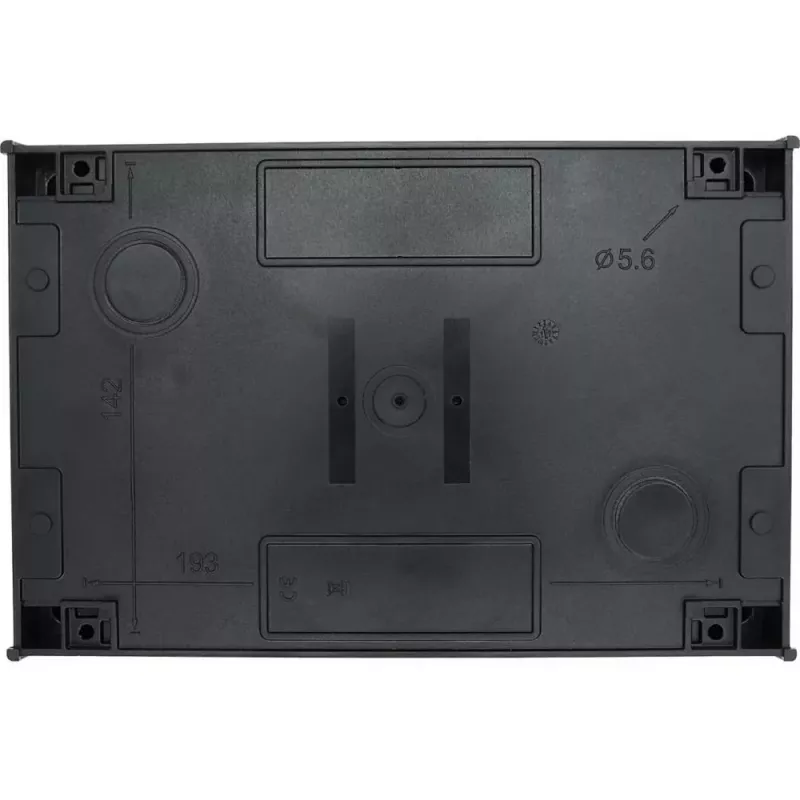

• Mounting type: Surface mounting
• Handle color: Red
• Locking ring color: Yellow
• Degree of protection (front): IP65
• Degree of protection (enclosure): IP65
• Switching angle: 90°
• Rated short-circuit withstand current: 1.2 kA (1s)
• Rated short-circuit making capacity: 2.5 kA
• Terminal type: Screw terminals
• Operating temperature range: -25 to +50 °C
• Rated power (AC-23A, 400V): 30 kW
• Rated power (AC-3, 400V): 22 kW

Final note

A robust and visible main switch for demanding industrial applications.
