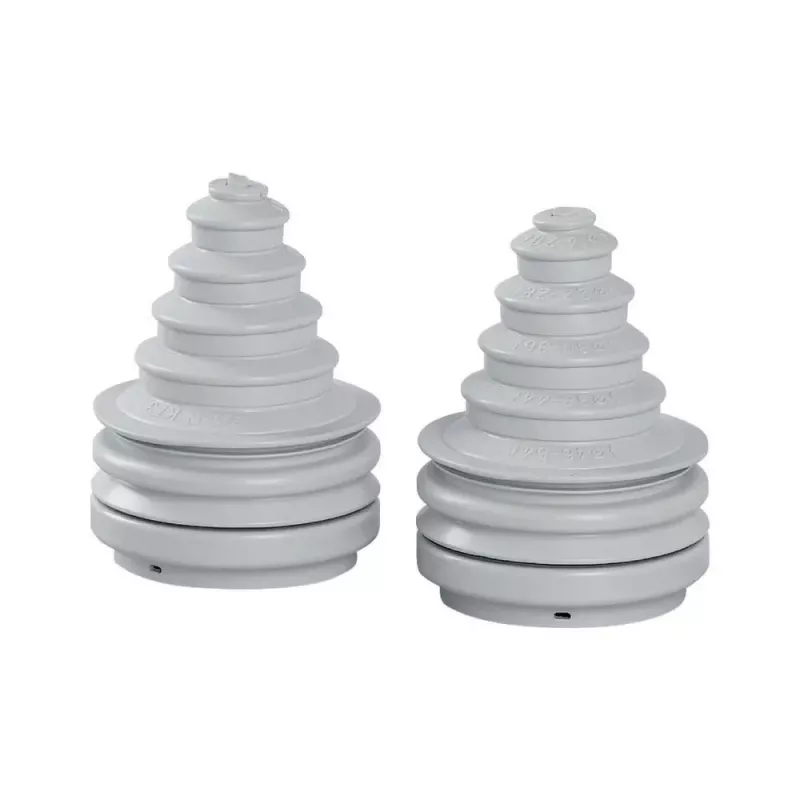

EATON pasacables para cable 14-54 mm KT3 (031523)

Industrial cable entries often leave gaps that allow dust, moisture, and mechanical stress to reach critical connections. This cable grommet closes that gap, sealing cable entries in enclosures and providing strain relief for cables with diameters from 14 to 54 mm.

Who is it for

Electrical installers and panel builders who need a reliable, halogen-free sealing insert for cable glands in industrial environments.

Main features

• Fits cable diameters 14–54 mm
• Made of TPE (thermoplastic elastomer)
• Black colour
• Halogen-free
• Compatible with PFLITSCH UNI Dicht cable glands

Specifications

• Model series: KT3
• Outer diameter: 63 mm
• Height: 20 mm
• Temperature range: -40 °C to +100 °C
• Material: TPE
• Colour: Black

Tips

Select the correct grommet size based on the cable's outer diameter to ensure a proper seal and strain relief.
