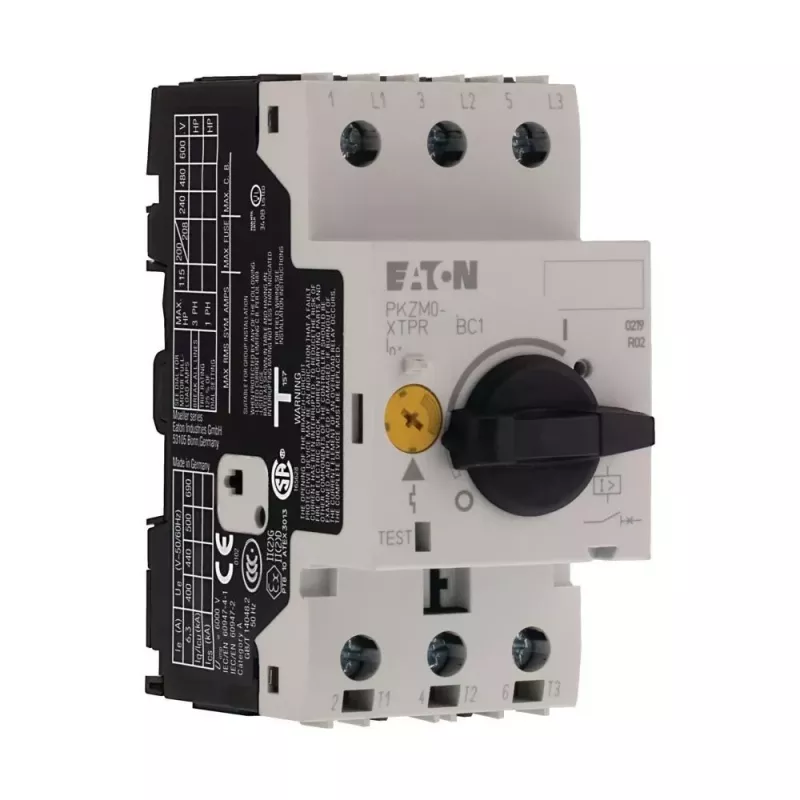

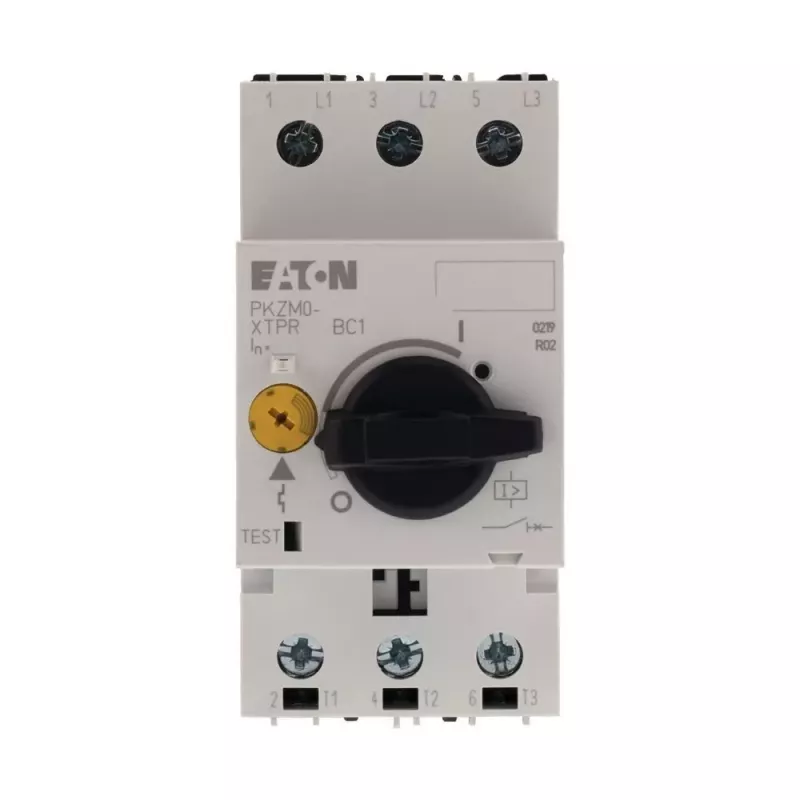

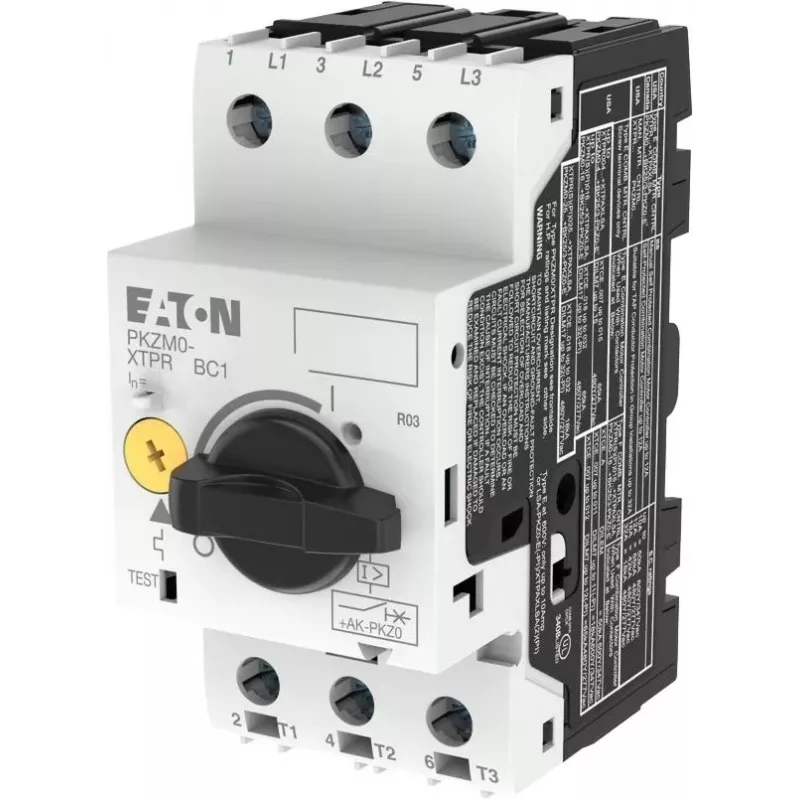

EATON PKZM0-0.4 interruptor de protección de motor, 0,4A, 3 polos, botón giratorio, 0,09kW/400V 072732

Motor protection circuit breaker from the PKZM0 series, rated for 0.4 A operational current, providing reliable protection for motors up to 0.09 kW at 400 V AC. Its rotary knob actuation ensures clear switching and status indication.

Advantages

Combines thermal overload and magnetic short-circuit protection in one compact device, with high breaking capacity up to 150 kA at 400 V. Suitable for DIN rail or screw mounting.

Suitable for

• Protection of three-phase motors up to 0.09 kW at 400 V
• Industrial control panels and machine building
• Applications requiring manual isolation and motor protection

Key specifications

• Rated operational current: 0.4 A
• Overload release range: 0.25 - 0.4 A
• Rated operational voltage: 690 V AC max
• Number of poles: 3
• Mounting: DIN rail / screw
• Connection: screw terminals
• Rated short-circuit breaking capacity: 150 kA at 400 V
• Protection degree (front): IP20

Recommendations

Ideal for protecting small motors in industrial environments where space is limited and reliable protection is essential.
