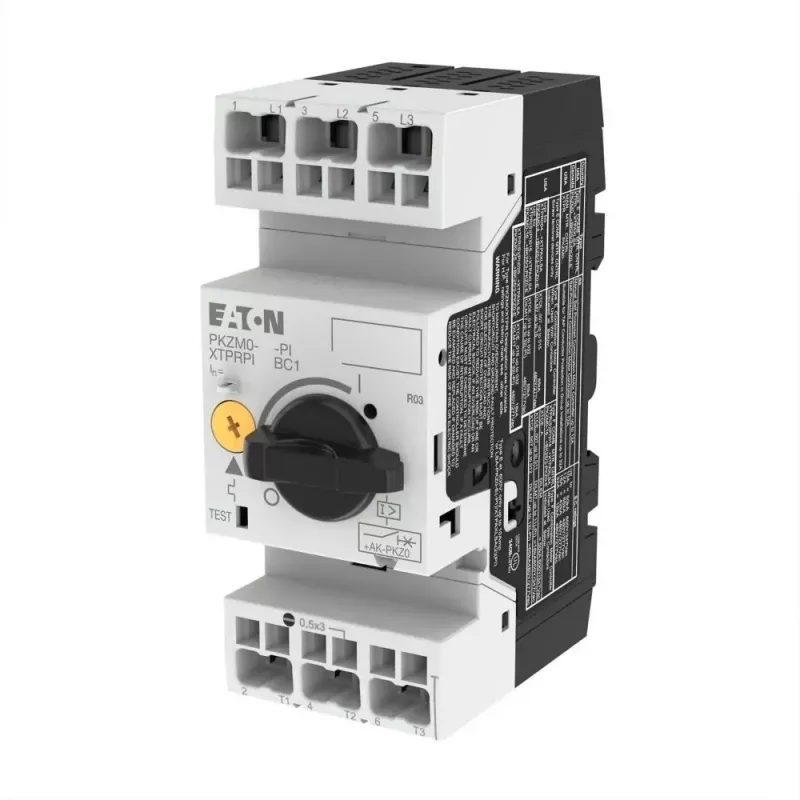

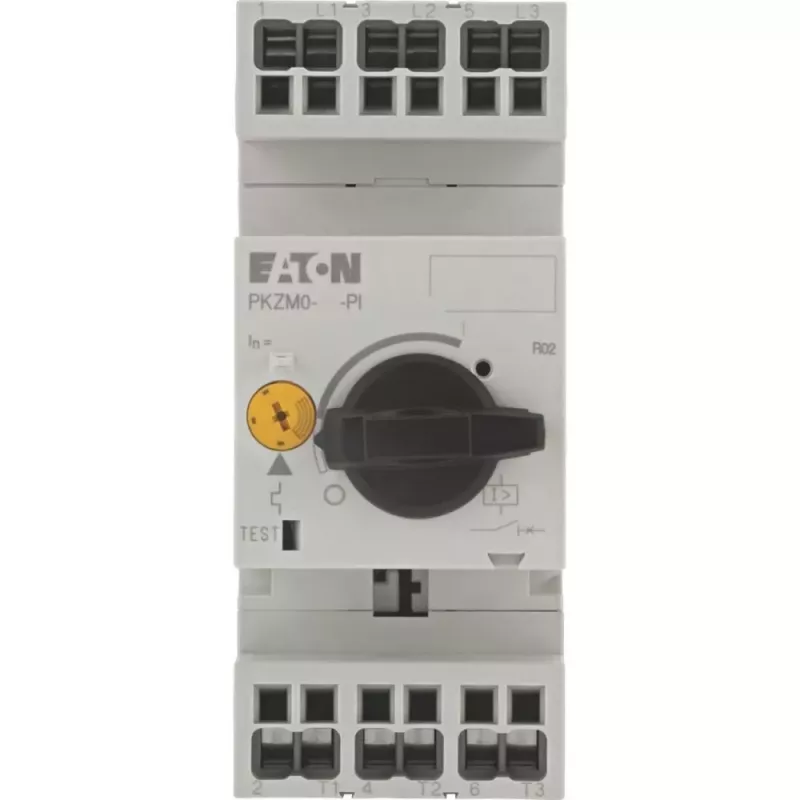

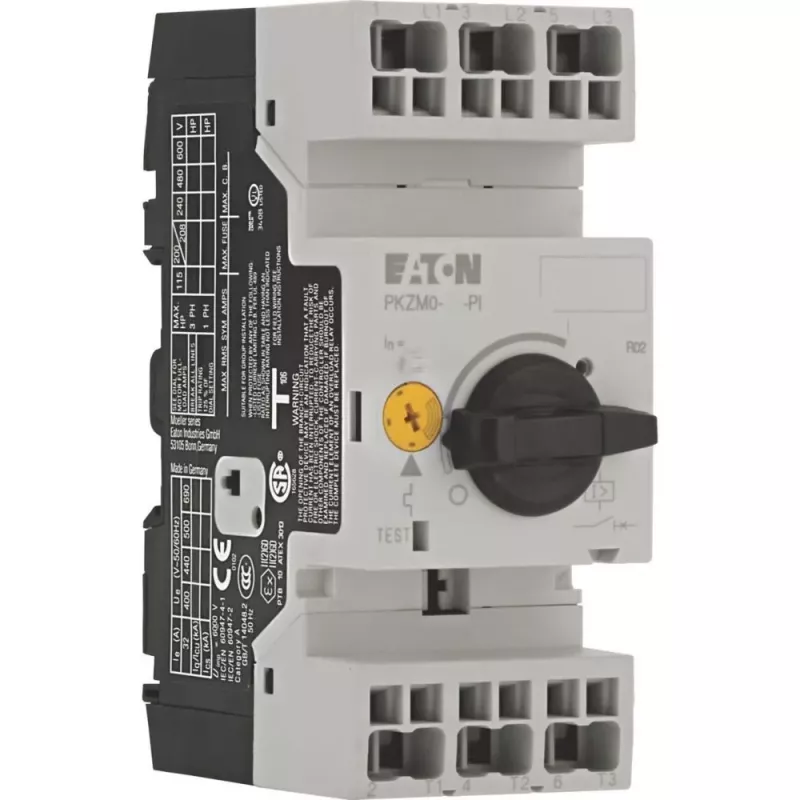

Eaton PKZM0-0.63-PI interruptor protector de motor, 0,4-0,63 A, tripolar, bornes push-in 199151

Motor protection circuit breaker with thermal-magnetic trip and a rated operational current of 0.4 to 0.63 A. The PKZM0-0.63-PI protects three-phase motors up to 690 V AC and offers a short-circuit breaking capacity of 150 kA at 230/240 V AC.

Advantages

Push-in terminals speed up wiring and eliminate the need for ferrules. The rotary handle gives clear status indication and allows manual operation. The compact design fits standard 45 mm cutouts and mounts on DIN rail or with screws.

Suitable for

• Protection of small three-phase motors in industrial control panels
• Applications requiring reliable overload and short-circuit protection
• Installations where space is limited and push-in wiring is preferred

Key specifications

• Rated operational current: 0.4 - 0.63 A
• Number of poles: 3
• Rated operational voltage: up to 690 V AC
• Short-circuit breaking capacity: 150 kA at 230/240 V AC
• Connection type: push-in terminals
• Mounting: DIN rail (EN 60715) or screw mounting
• Degree of protection: IP20
• Ambient operating temperature: -25 to +55 °C

Recommendations

For motor protection in compact control panels, the PKZM0-0.63-PI offers reliable thermal-magnetic tripping and fast push-in wiring. Its high breaking capacity ensures safety even in demanding industrial environments.
