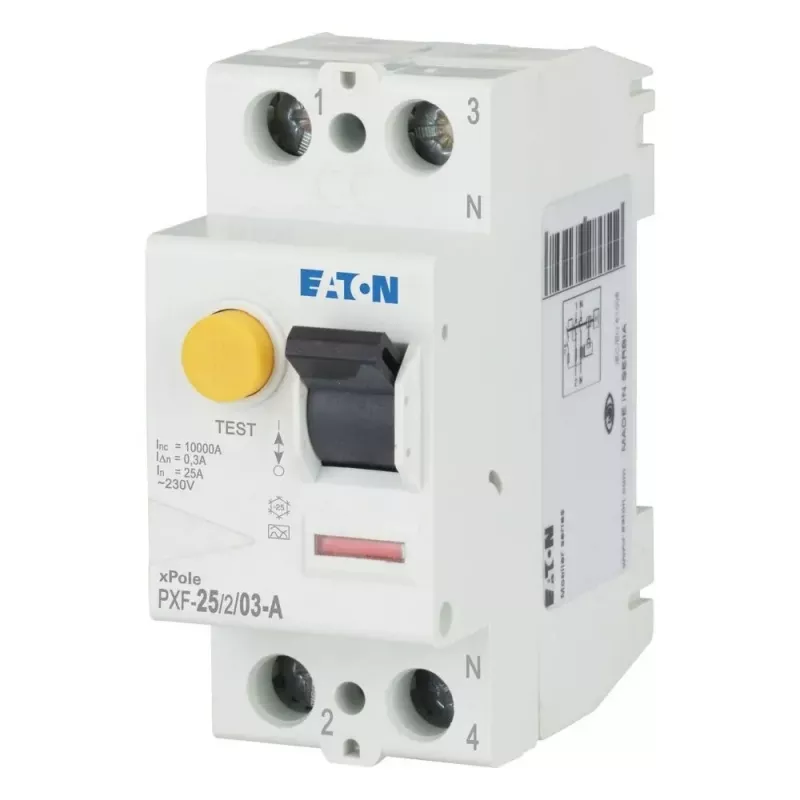

Eaton PXF-25/2/03-A interruptor diferencial (RCCB) 25 A 2 polos 30 mA tipo A 236746

Electricians and panel builders install the Eaton PXF-25/2/03-A in residential and commercial distribution boards to protect circuits against earth leakage currents. This 2-pole residual current circuit breaker (RCCB) is rated at 25 A with a 30 mA trip sensitivity, providing personal and fire protection for socket outlets, lighting, and appliances.

Key specifications

• Rated current: 25 A
• Number of poles: 2
• Rated residual current: 30 mA
• Type: A (AC and pulsating DC)
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Width: 2 modules (35 mm)
• Short-circuit current: 10 kA
• Impulse withstand voltage: 4 kV

Why choose it

The PXF-25/2/03-A offers reliable earth fault protection with a compact 2-module width, making it easy to install in standard distribution boards. Its Type A tripping characteristic ensures detection of both AC and pulsating DC residual currents, suitable for modern electrical installations with electronic loads.

Ideal use cases

• Protection of socket outlet circuits in homes and offices
• Earth leakage protection for lighting and appliance circuits
• Use in distribution boards requiring DIN rail mounting

Good to know

The device operates within a temperature range of -25 to +40 °C and has a mechanical life of 20,000 operating cycles. It complies with IEC/EN 61008 standards.
