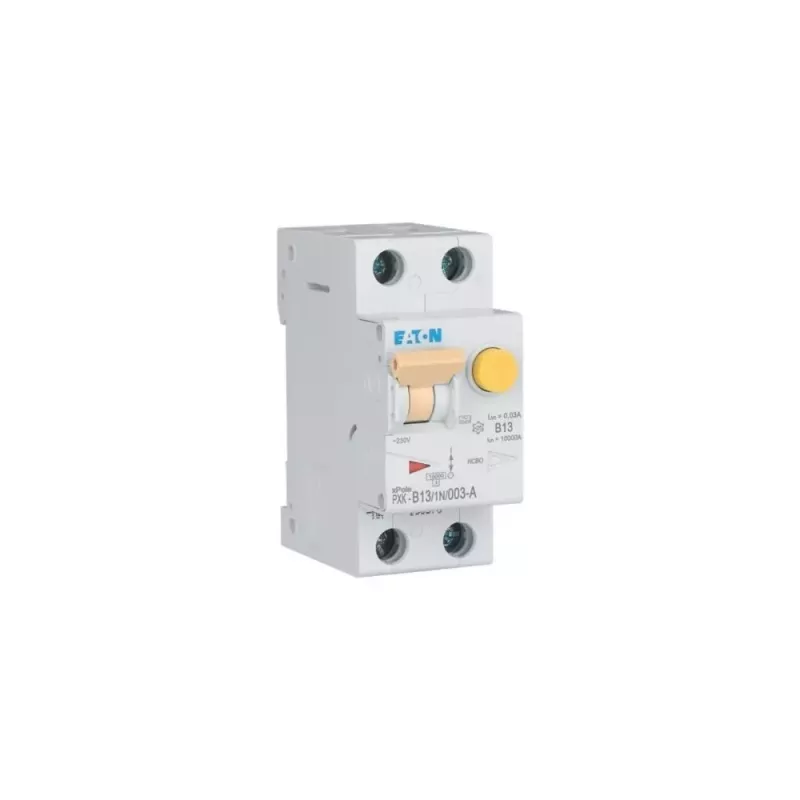

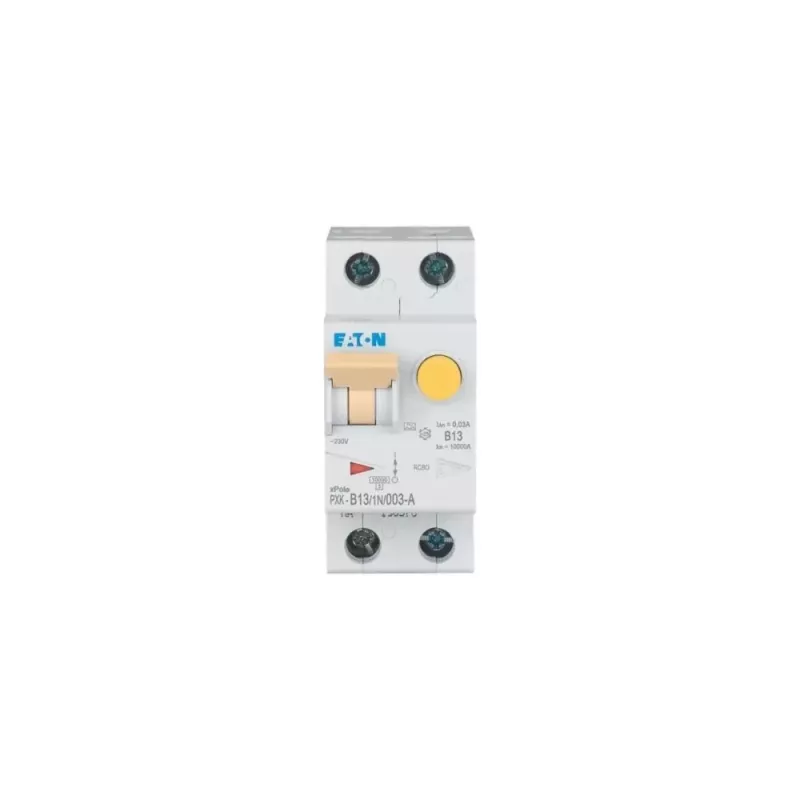

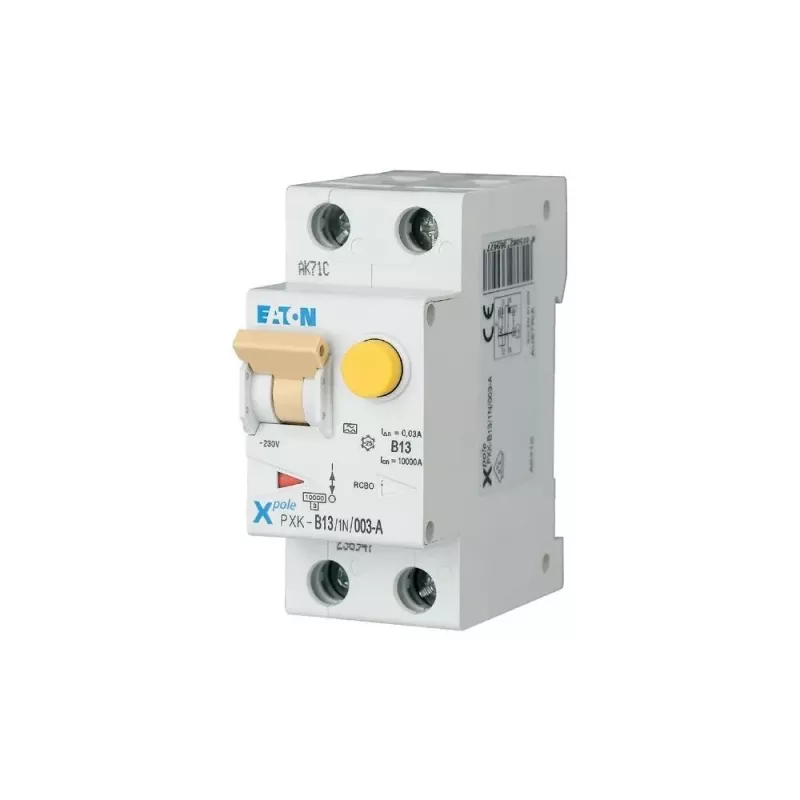

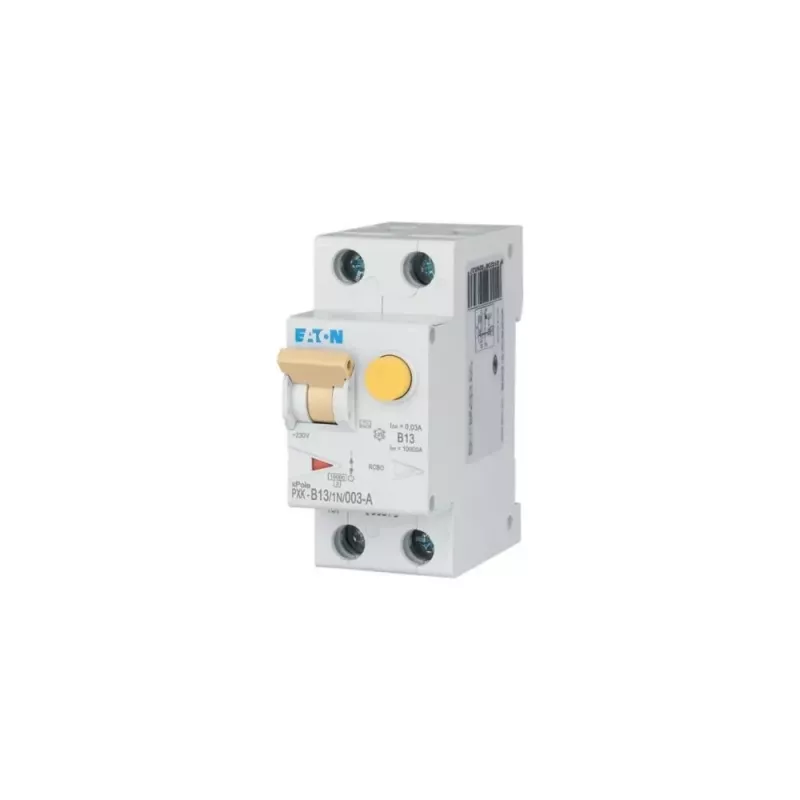

Eaton PXK-B13/1N/003-A RCBO, 13 A, 30 mA, 1P+N, curva B, 10 kA, 230 V AC, carril DIN, 2 módulos 236947

Protect circuits against overload, short-circuit, and residual current faults with the Eaton PXK-B13/1N/003-A. This RCBO combines miniature circuit breaker and residual current protection in a single 2-module DIN rail unit, ensuring personnel and fire safety for residential and commercial installations.

Who is it for

Electricians and panel builders who need reliable combined protection for single-phase final circuits, especially where space is limited and compliance with IEC/EN 61009 is required.

Main features

• Rated current 13 A with B tripping characteristic for general loads
• Residual current sensitivity 30 mA, type A (AC and pulsating DC)
• Breaking capacity 10 kA at 230 V AC
• 1-pole + neutral switching, 2 modules wide
• Terminal capacity 1-25 mm², IP20 terminals

Specifications

• Rated current: 13 A
• Tripping characteristic: B
• Number of poles: 1P+N
• Rated residual current: 30 mA
• Type of residual current: A
• Rated breaking capacity: 10 kA
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal capacity: 1-25 mm²
• Degree of protection (terminals): IP20
• Degree of protection (enclosure): IP40 with cover
• Standards: IEC/EN 61009
• Module width: 2 modules (35 mm)
• Short-circuit current rating (Ics): 10 kA
• Operating temperature range: -25 to +50 °C

Tips

Ensure the upstream protective device provides adequate backup protection. For circuits with high inrush currents, verify that the B characteristic is suitable or consider a C curve alternative.
