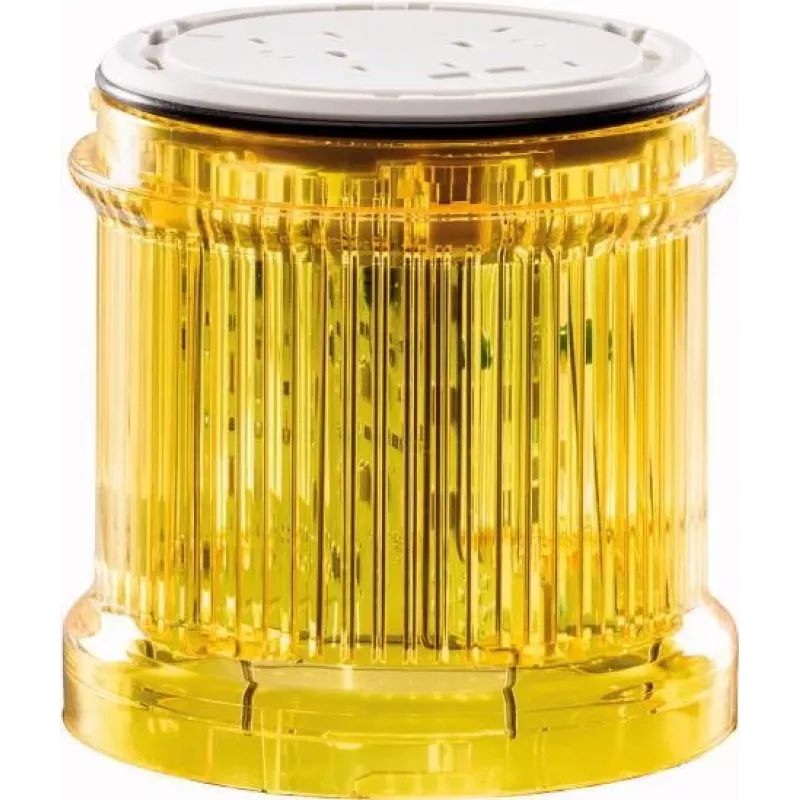

Eaton SL7-L-Y Elemento de torre de señalización LED, amarillo, 12-230V AC/DC 171437

Industrial machines often lack clear visual status indication, leading to delayed operator response and increased downtime. The Eaton SL7-L-Y LED element provides a bright yellow steady light for signal towers, ensuring machine states are visible from a distance even in harsh environments.

Who is it for

Maintenance engineers, machine builders, and plant operators who need reliable, modular visual signaling for automated equipment, conveyor systems, and production lines.

Main features

• Yellow LED light with permanent (steady) illumination
• Wide operating voltage range 12–230 V AC/DC for flexible integration
• Low current consumption of only 15 mA
• Modular plug-in design for easy installation into SL7 signal towers
• Robust polycarbonate housing with IP66 protection
• Operating temperature range -30 to 60 °C

Specifications

• Product type: LED element
• Light colour: Yellow
• Light type: Permanent light
• Operating voltage: 12–230 V AC/DC
• Current consumption: 15 mA
• Service life: > 100,000 hours
• Housing material: Polycarbonate (PC)
• Mounting type: Modular (for signal tower base/adapter)
• Approvals: CE, UL, CSA, CCC, EAC

Tips

Combine with other SL7 elements (red, green, audible) to create a complete multi-status signal tower. Ensure the supply voltage matches the rated range for optimal longevity.
