Eaton T0-1-102/I1/SVB-SW Interruptor principal 2 polos, 20 A, 690 V AC, empuñadura negra, placa frontal blanca 207144

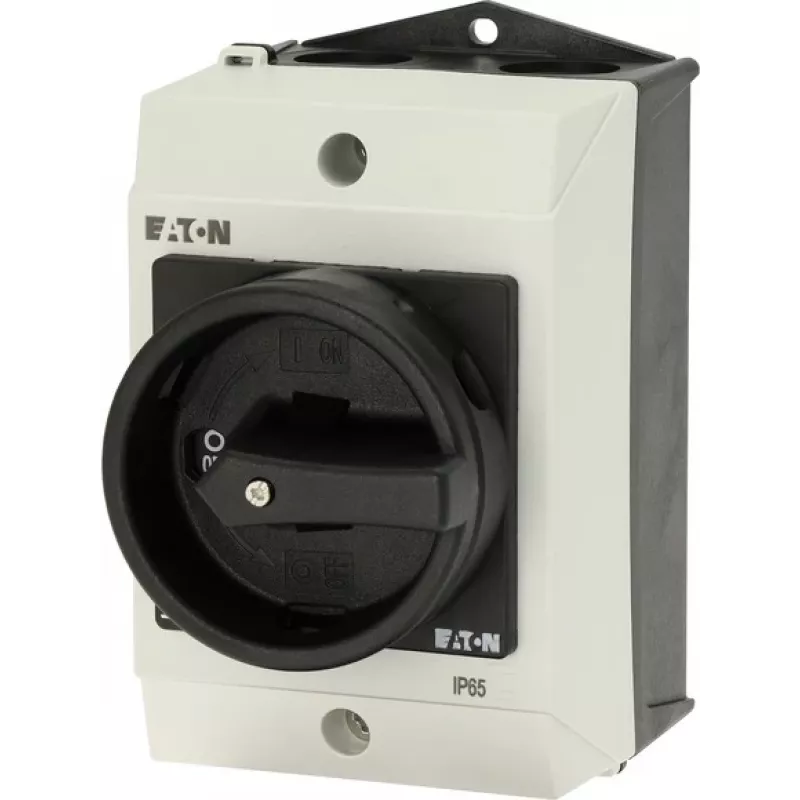

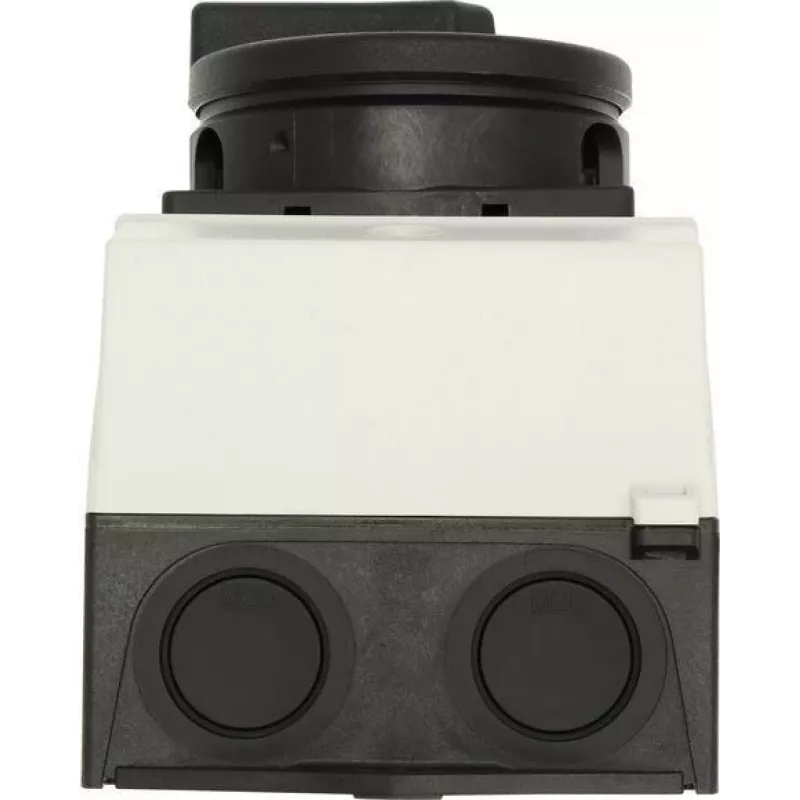

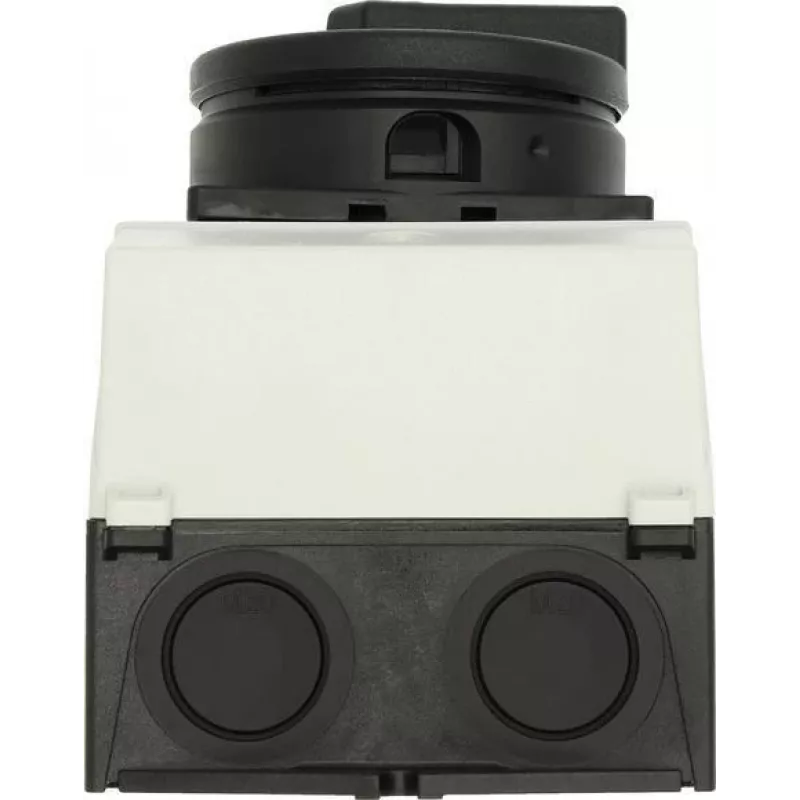

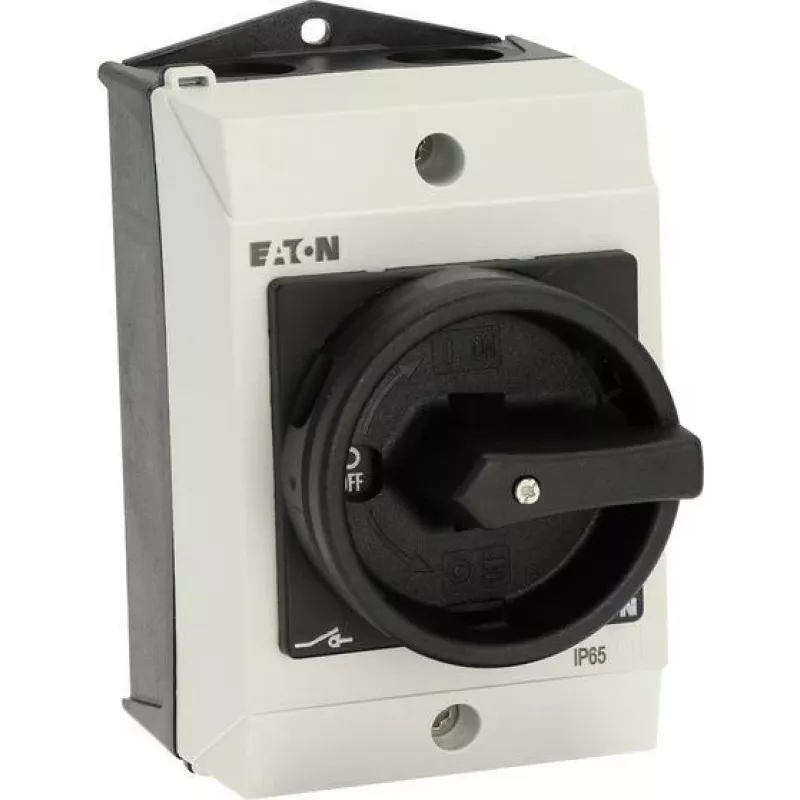

In industrial control panels and machine building, a reliable main switch is essential for safe disconnection. The Eaton T0-1-102/I1/SVB-SW is a 2-pole main switch with a black handle and white front plate, designed for front mounting. It provides a clear ON-OFF switching function and is built to handle demanding electrical loads.

Key specifications

• Switching function: Main switch
• Number of poles: 2
• Switching positions: 2 (ON-OFF)
• Rated operational current: 20 A
• Rated operational voltage: 690 V AC
• Rated operational power AC-23A (400 V): 5.5 kW
• Rated operational power AC-3 (400 V): 3 kW
• Degree of protection (front): IP65
• Degree of protection (rear): IP20
• Mounting type: Front mounting
• Handle colour: Black
• Front plate colour: White
• Front plate dimensions: 48 x 48 mm
• Connection type: Screw terminals
• Switching angle: 90 degrees
• Standards compliance: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C
• Rated short-circuit current (Icw): 0.32 kA (1s)

Why choose it

The T0-1-102/I1/SVB-SW offers robust performance with a high degree of front protection (IP65), making it suitable for harsh industrial environments. Its compact 48 x 48 mm front plate allows for space-efficient panel installation, while the screw terminals ensure secure wiring.

Ideal use cases

• Main disconnect for machine tools and control cabinets
• Motor circuit isolation in industrial automation
• Switching of resistive and inductive loads up to 20 A

Good to know

The switch complies with international standards IEC/EN 60947 and VDE 0660, ensuring safety and reliability. It operates within an ambient temperature range of -25 to +50 °C, suitable for a wide range of industrial settings.
