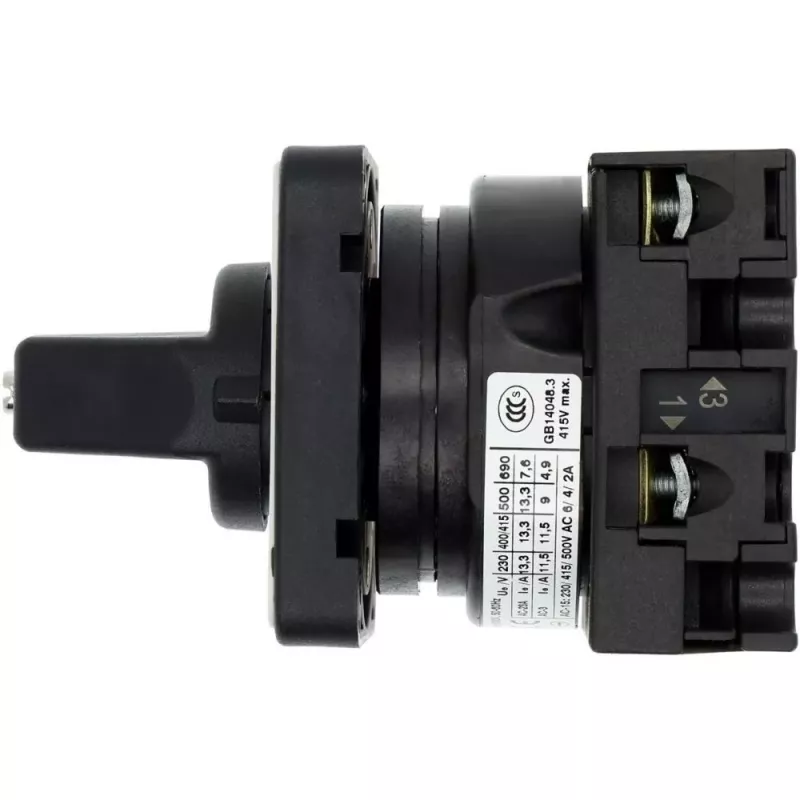

Eaton T0-1-15402/E interruptor de levas 2 polos, 20A, 690V AC, IP65, negro 053092

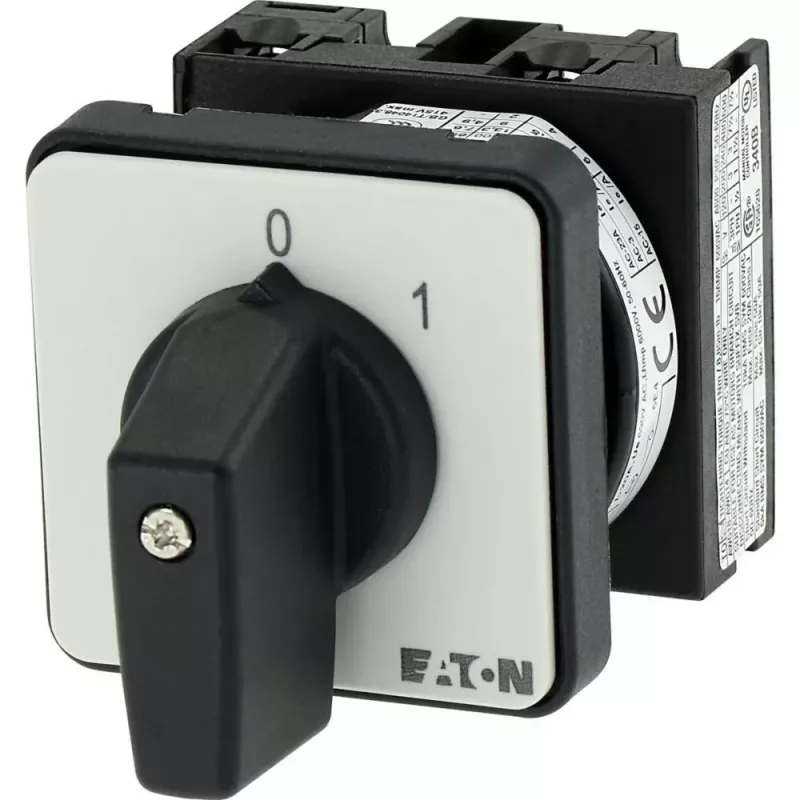

Rated at 20 A and 690 V AC, this Eaton cam switch delivers robust circuit control in a compact 48 x 48 mm flush-mount design. The T0-1-15402/E offers a 2-pole ON-OFF switching function with a 90° switching angle and a black handle, ensuring clear, reliable operation.

Overview

Engineered for industrial applications, this switch combines high electrical endurance with a front protection rating of IP65, making it suitable for demanding environments. Screw terminals provide secure wiring, while compliance with IEC/EN 60947-3, UL 60947-4-1, and CSA standards ensures global acceptance.

What stands out

• High rated operational current of 20 A at 690 V AC
• IP65 front protection for dust and water resistance
• Mechanical life of 3 million operations

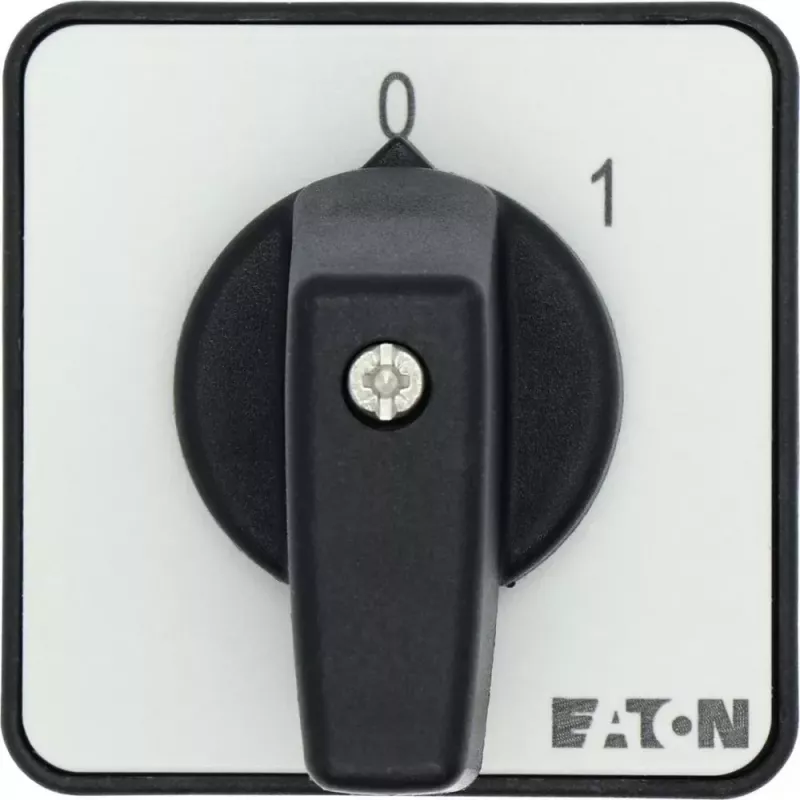

• Compact 48 x 48 mm front plate for easy panel integration
• Certified to international standards (CE, UL, CSA)

Technical details

• Product type: Cam switch
• Number of poles: 2
• Switching function: ON-OFF
• Rated operational current (Ie): 20 A
• Rated operational voltage (Ue): 690 V AC
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Flush mounting
• Handle colour: Black

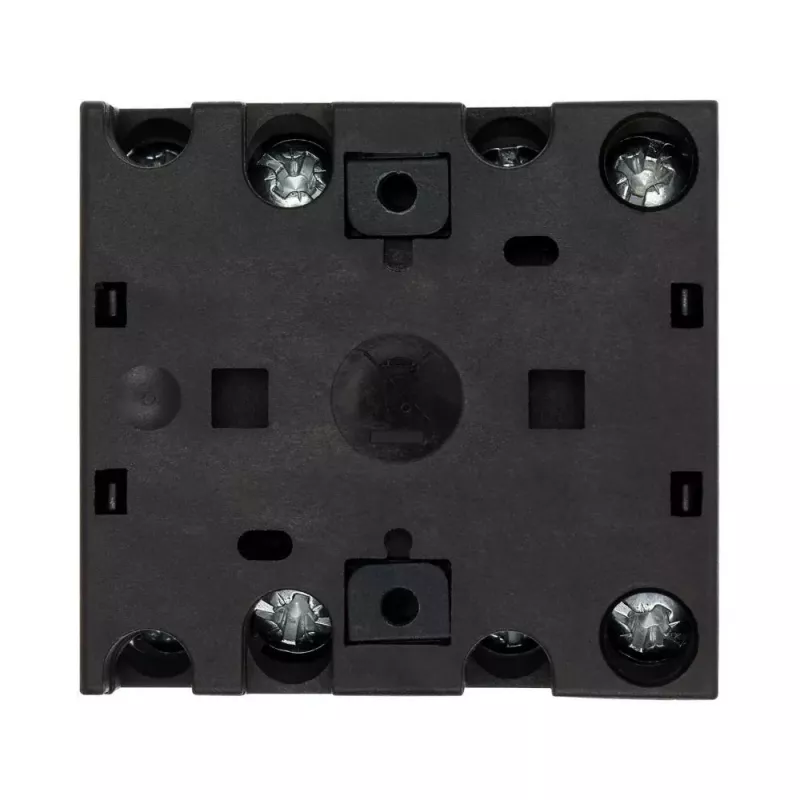

• Terminal type: Screw terminals
• Switching angle: 90°
• Number of switching positions: 2
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Ambient operating temperature: -25 to +50 °C
• Electrical life: 0.5 x 10^6 operations
• Mechanical life: 3 x 10^6 operations
• Front plate dimensions: 48 x 48 mm

Our verdict

A reliable and durable cam switch for industrial control panels, offering high performance and international certifications.
