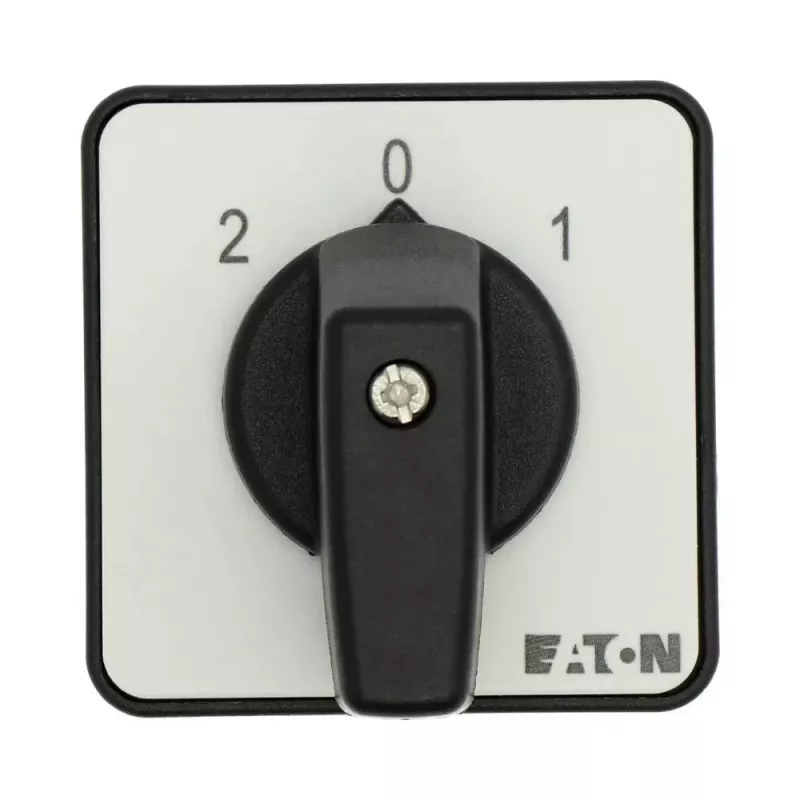

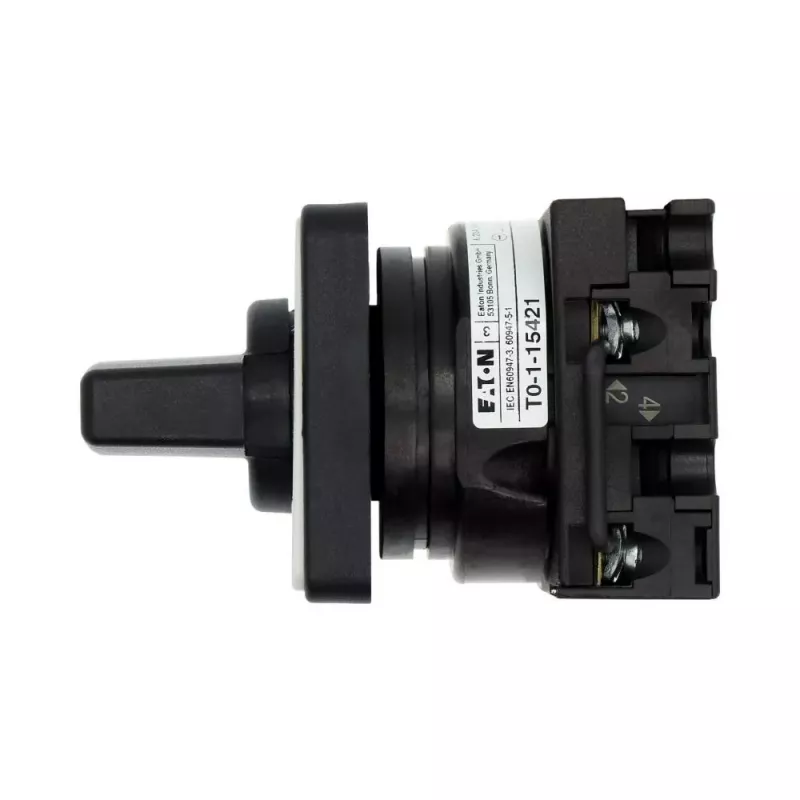

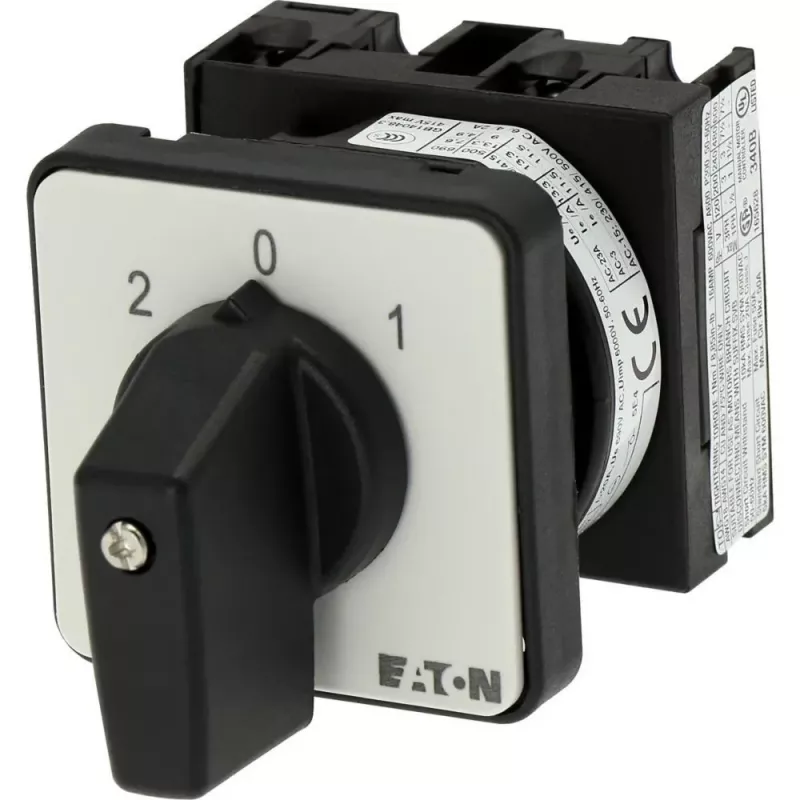

Eaton T0-1-15421/E Interruptor de levas, 1 polo, ON-OFF, 20 A, 690 V AC, palanca, negro, placa frontal 48x48 mm 095806

The Eaton T0-1-15421/E stands out as a robust cam switch built for reliable manual load breaking in industrial control circuits. Its compact 48 x 48 mm front plate and IP65-rated front protection make it suitable for flush mounting in panels where space and sealing matter.

Highlights

• 1-pole ON-OFF switching with a 90° toggle lever
• Rated operational current of 20 A at 400 V AC-21A, up to 690 V AC
• Flush mounting with screw terminals and IP20 terminal protection
• Black actuator and insulated enclosure for safe operation

In daily use

This cam switch is intended for front-panel installation, providing a clear manual control point for motors, heating circuits, or auxiliary power. The toggle lever gives a positive, unmistakable switching action, while the screw terminals accept standard wiring without special tools.

Full specifications

• Switch type: Cam switch
• Number of poles: 1
• Switching function: ON-OFF
• Rated operational current (Ie): 20 A at 400 V AC-21A
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Switching angle: 90°
• Number of switching positions: 2
• Mounting type: Flush mounting (front panel)
• Actuator type: Toggle lever
• Actuator colour: Black
• Front plate dimensions: 48 x 48 mm
• Protection degree (front): IP65
• Protection degree (terminals): IP20

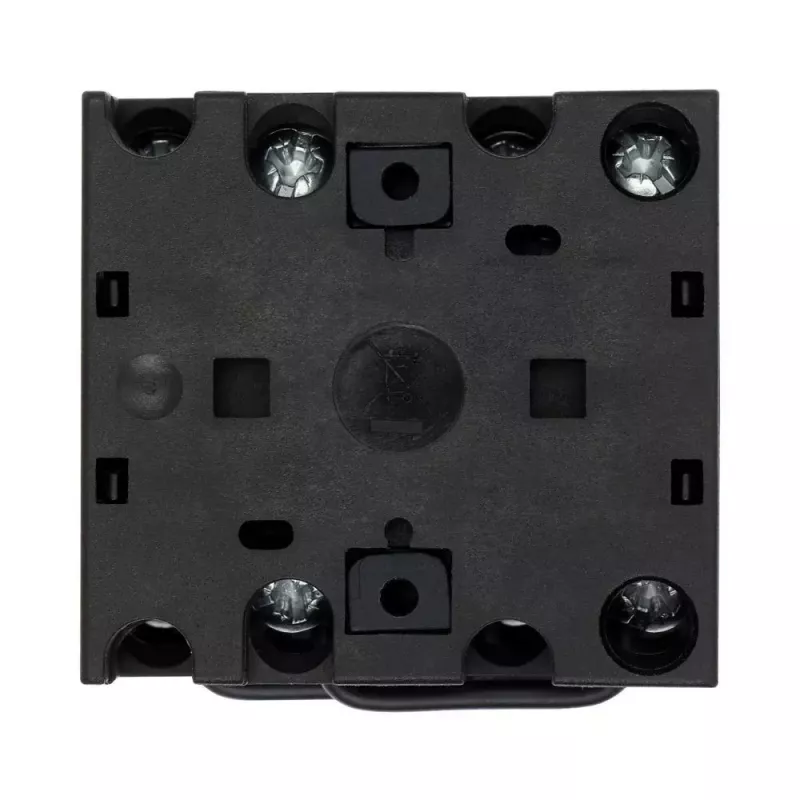

• Terminal type: Screw terminals
• Ambient operating temperature: -25 to +50 °C
• Enclosure material: Insulated material

Final note

The T0-1-15421/E combines a proven cam mechanism with a sealed front face, making it a dependable choice for machine builders and panel shops.
