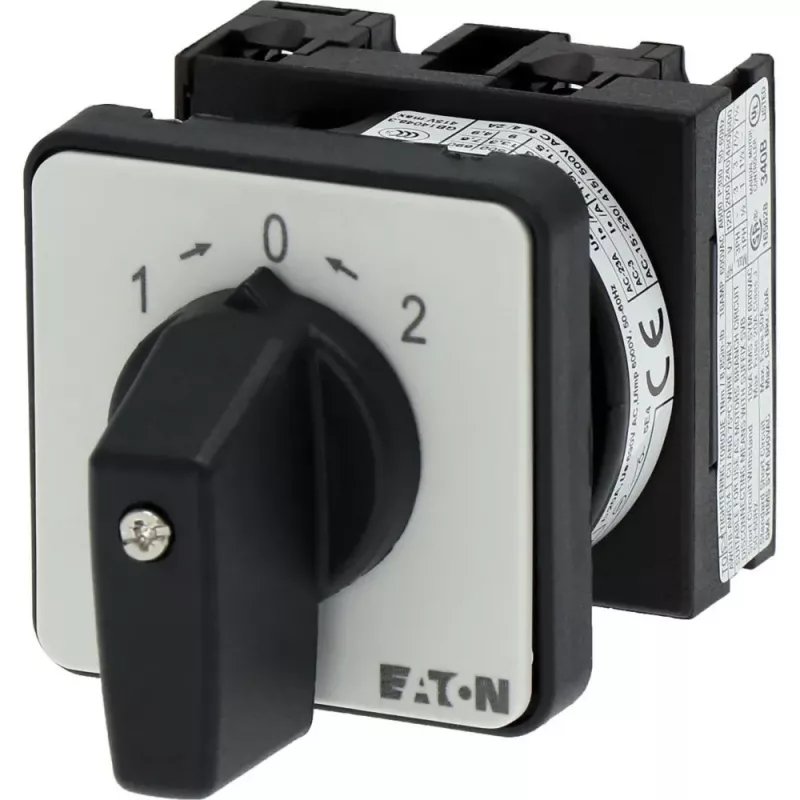

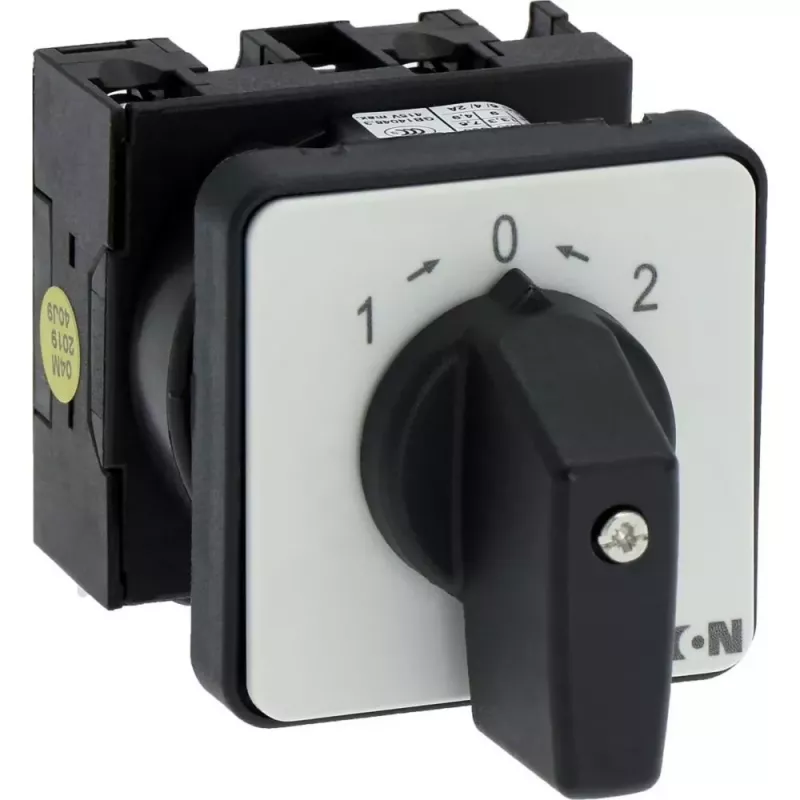

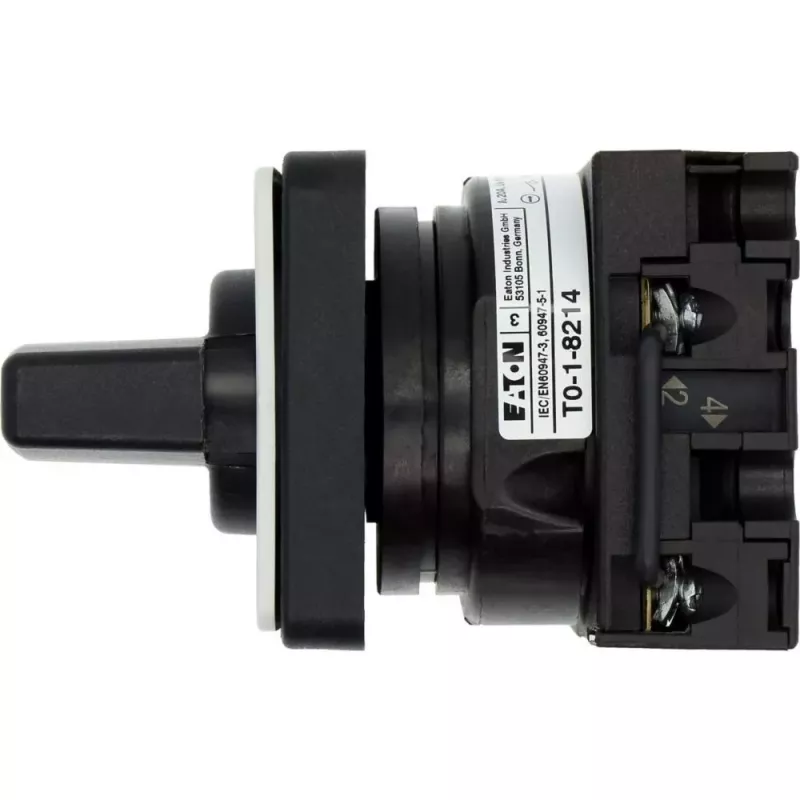

Eaton T0-1-8214/E conmutador 6,5 kW 3 polos 3 posiciones

Manual changeover switches are critical for safely switching between power sources in industrial and commercial installations. The Eaton T0-1-8214/E provides a robust, panel-mounted solution for controlling three-phase circuits, ensuring reliable isolation and transfer.

Who is it for

This switch is intended for electricians, panel builders, and maintenance engineers who need a dependable, front-mounted changeover switch for motor control, power distribution, or backup generator applications.

Main features

• 3-pole changeover switch with 3 positions (1-0-2) for source selection or motor reversing.
• Rated operational power of 6.5 kW (AC-23A, 400V) and 5.5 kW (AC-3, 400V).
• Rated operational current of 20 A at 400V.
• Front protection degree IP65, suitable for demanding environments.

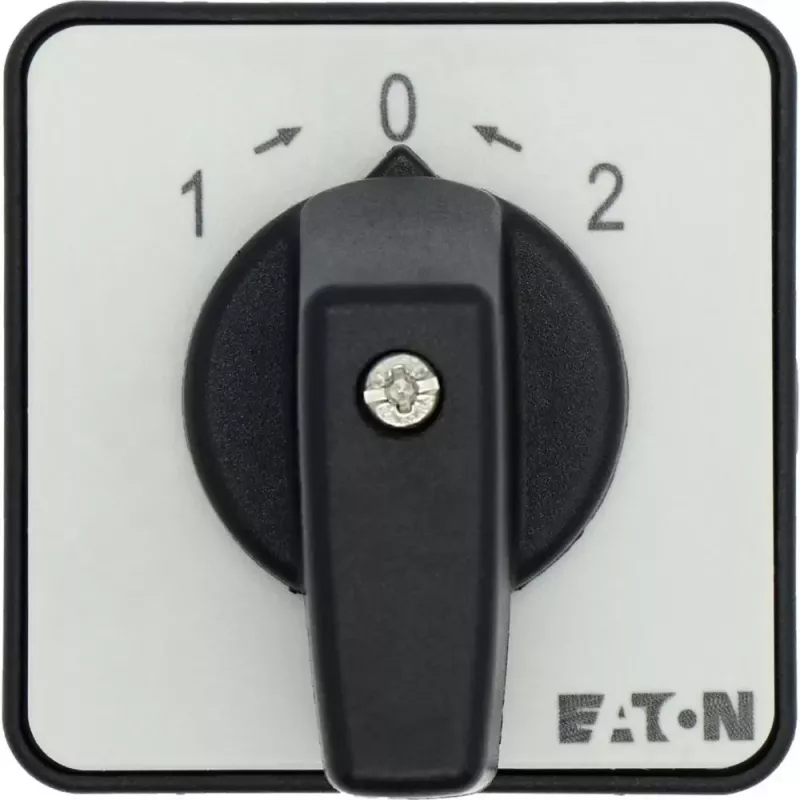

• Compact front plate dimensions 48 x 48 mm, ideal for standard panel cutouts.
• Screw terminals for secure wiring.
• Black handle for clear visual indication.

Specifications

• Switch type: Changeover switch
• Number of poles: 3
• Switching positions: 3 (1-0-2)
• Rated operational current (Ie) at 400V: 20 A
• Rated operational power (AC-23A, 400V): 6.5 kW
• Rated operational power (AC-3, 400V): 5.5 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Panel mounting (front mounting)
• Switching angle: 90°
• Handle colour: Black
• Front plate dimensions: 48 x 48 mm
• Connection type: Screw terminals
• Number of auxiliary contacts: 0
• Rated short-circuit making capacity (Icm): 1 kA

Tips

Ensure the panel cutout matches the 48 x 48 mm front plate. For outdoor or washdown areas, the IP65 front protection is beneficial, but protect the terminals from moisture as they are IP20.
