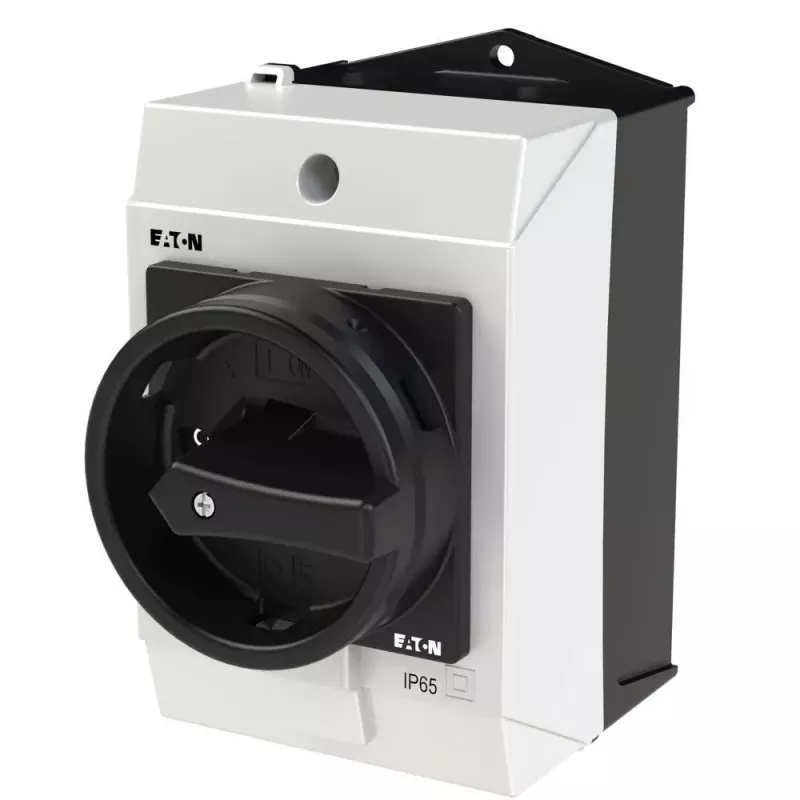

EATON T0-2-15679/I1/SVB-SW interruptor principal 20A 3 polos montaje en superficie con función de parada de emergencia 207150

Industrial electricians and maintenance teams rely on the EATON T0-2-15679/I1/SVB-SW as a robust main switch for safely isolating machinery and control panels. Its surface-mount design and 3-pole configuration make it suitable for a wide range of industrial applications.

Key specifications

• Rated uninterrupted current: 20 A
• Number of poles: 3
• Mounting type: Surface mounting
• Switching function: STOP function (emergency stop / maintenance switch)
• Degree of protection: IP65 (front), IP20 (terminals)
• Rated operational voltage: 690 V AC
• Lockable in OFF position with up to 3 padlocks

Why choose it

The switch features a red rotary handle on a yellow front plate for high visibility and quick identification. Its robust construction and IP65 front protection make it suitable for demanding environments. The ability to lock the switch in the OFF position enhances safety during maintenance work.

Ideal use cases

• Isolating power to industrial machinery
• Emergency stop applications
• Maintenance and repair operations
• Control panel disconnection

Good to know

The switch is rated for 20 A and can handle operational power up to 5.5 kW at 400 V AC (AC-23A). It complies with IEC/EN 60947 standards and features screw terminals for secure wiring.
