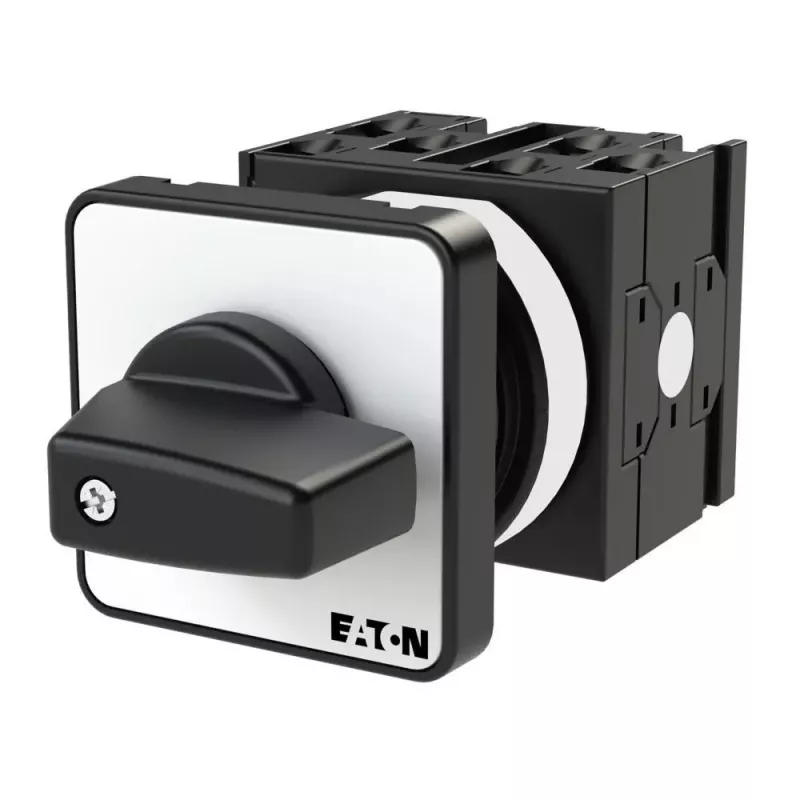

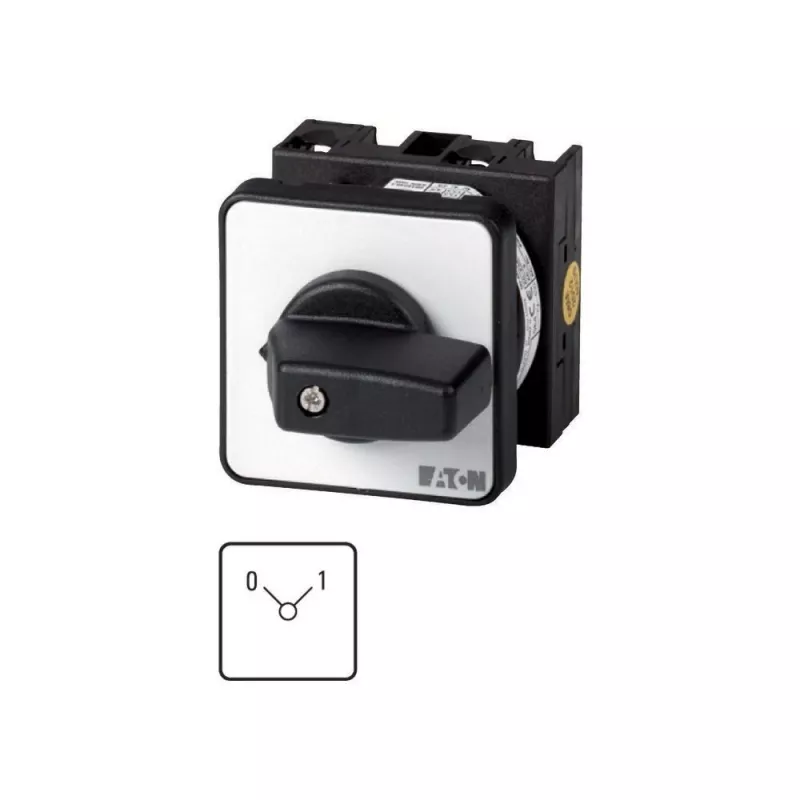

Eaton T0-3-15475/E Interruptor on-off tripolar 20A 690V AC IP65 empuñadura giratoria 013022

With a rated operational voltage of 690 V AC and a 20 A current rating, the Eaton T0-3-15475/E On-Off Switch delivers robust performance for demanding industrial control applications. This 3-pole disconnector is engineered for front or panel mounting, featuring an IP65 protected front and a black rotary handle for clear ON/OFF indication.

Overview

The Eaton T0-3-15475/E is a high-quality on-off switch designed for reliable switching and isolation in electrical circuits. It belongs to Eaton's T0 series, known for its compact design and dependable operation. The switch is suitable for use as a main switch or disconnector in various industrial and commercial installations. Its 3-pole configuration allows switching of three-phase loads, while the rotary handle provides a 90° switching angle with two positions (ON/OFF). The front of the switch offers IP65 protection, making it resistant to dust and water jets, suitable for use in harsh environments.

What stands out

• High rated operational voltage of 690 V AC, suitable for a wide range of applications.
• Robust 20 A rated current for handling moderate power loads.
• IP65 front protection ensures durability in dusty or wet conditions.
• Compact front/panel mounting design for easy integration into control panels.
• Clear rotary handle with 90° switching angle for straightforward operation.
• Complies with IEC/EN 60947 and VDE 0660 standards for safety and performance.

Technical details

• Switch type: On-Off switch (main switch, disconnector)
• Number of poles: 3
• Rated operational current (Ie): 20 A at 400 V AC-21A
• Rated operational voltage (Ue): 690 V AC
• Mounting type: Front mounting, panel mounting
• Degree of protection (front): IP65
• Actuator type: Rotary handle
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Terminal type: Screw terminals
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Rated short-circuit withstand current (Icw): 0.32 kA (1s)
• Rated uninterrupted current (Iu): 20 A
• Rated power (AC-23A, 400V): 5.5 kW
• Ambient operating temperature: -25 to +50 °C
• Standards: IEC/EN 60947, VDE 0660
• Handle color: Black

Our verdict

The Eaton T0-3-15475/E is a reliable and durable on-off switch that meets stringent industrial standards. Its high voltage rating, IP65 protection, and robust construction make it an excellent choice for controlling and isolating power in demanding environments.
