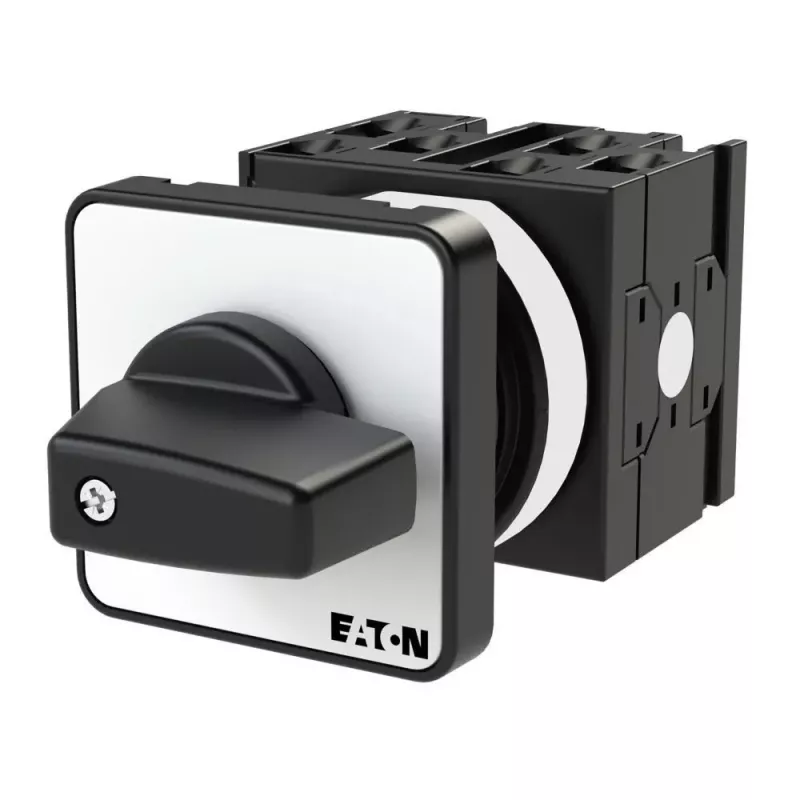

Eaton T0-3-8244/E interruptor de control, 7 posiciones, 6,5 kW, tripolar, empuñadura negra

The Eaton T0-3-8244/E stands apart from conventional control switches by combining a compact 7-position cam mechanism with a robust 6.5 kW switching capacity, making it a dependable choice for demanding industrial control circuits. Its front-mounted design and central fixing simplify panel integration, while the black standard handle ensures clear, tactile operation.

Highlights

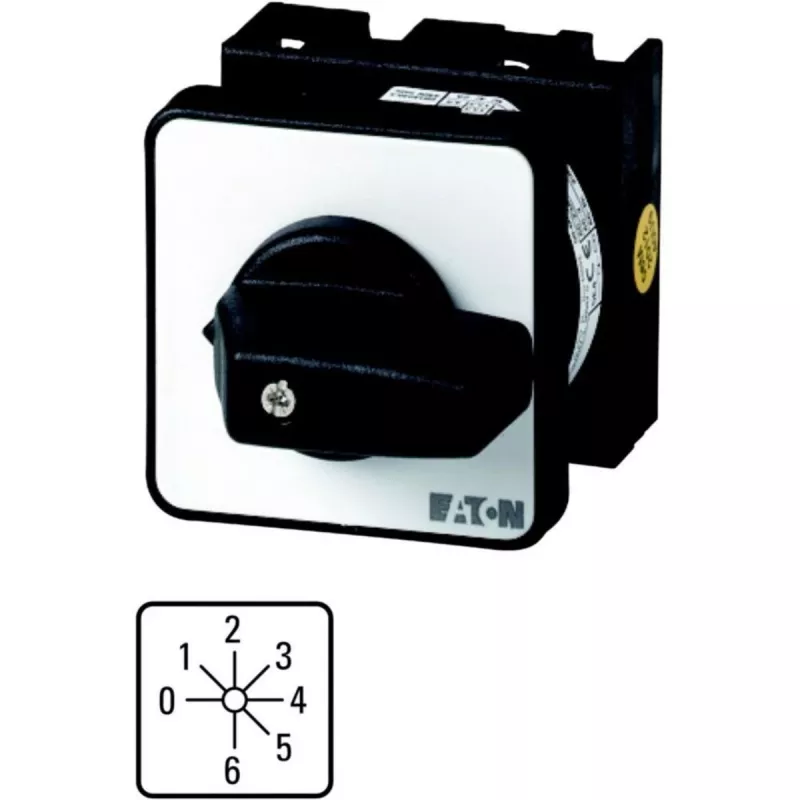

• 7 switch positions with 45° switching angle for precise multi-step control
• Rated operational power of 6.5 kW at 400 V AC-23A, suitable for motor loads
• 3-pole configuration with screw terminals for secure wiring
• Front degree of protection IP65, rear IP20 for flexible installation
• Rated uninterrupted current 20 A, insulation voltage 690 V

In daily use

This control switch is engineered for straightforward operation and long-term reliability. The black handle provides a firm grip, and the defined 45° detents allow operators to select positions confidently without overshooting. With a wide operating temperature range from -25 °C to +50 °C, it performs consistently in harsh environments.

Full specifications

• Switch type: Cam switch / control switch
• Number of poles: 3
• Number of switch positions: 7
• Switching program: 8244
• Rated uninterrupted current (Iu): 20 A
• Rated operational current AC-23A at 400 V: 13.2 A
• Rated operational power AC-23A at 400 V: 6.5 kW
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6000 V
• Degree of protection (front): IP65
• Degree of protection (rear): IP20
• Mounting type: Front mounting, central fixing
• Terminal type: Screw terminals
• Switching angle: 45°
• Handle type: Black standard handle
• Standards: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C
• Connection capacity: 1 x 2.5 mm² / 2 x 1.5 mm²

Final note

The Eaton T0-3-8244/E is a versatile and durable control switch, ideal for applications requiring multiple switching states and high reliability.
