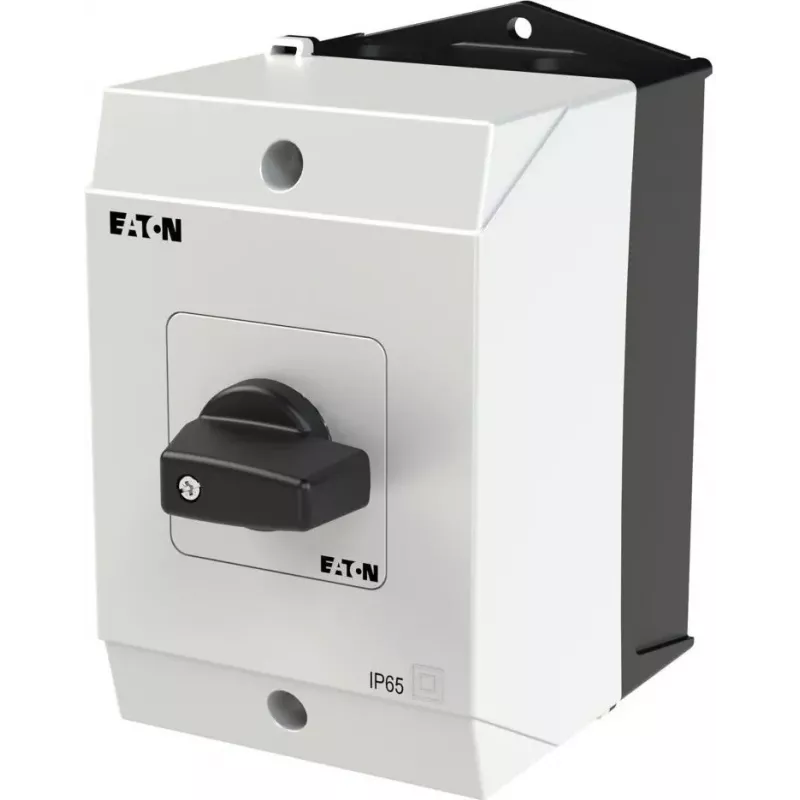

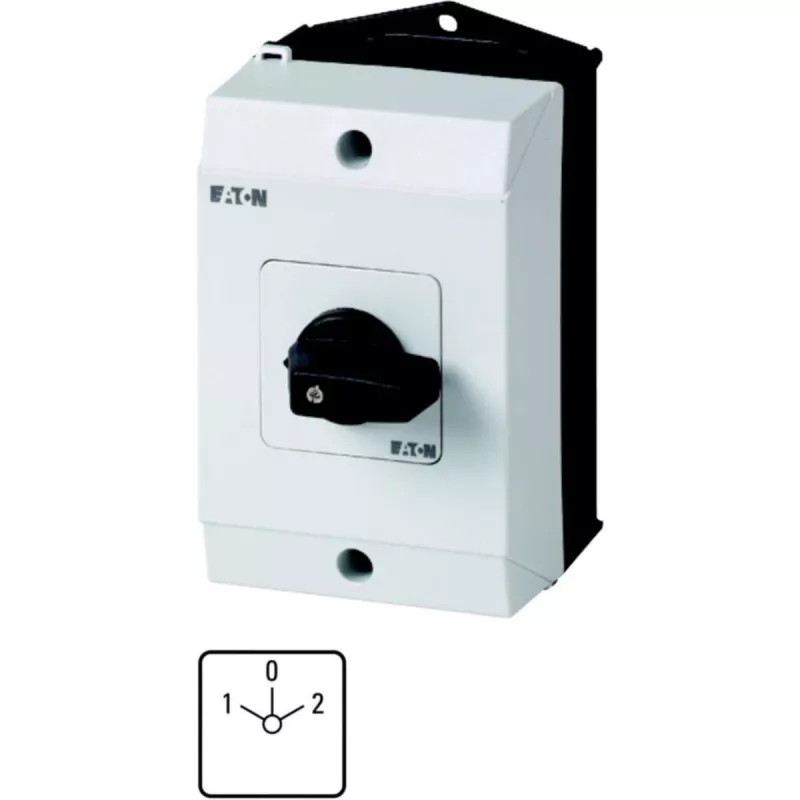

Eaton T0-3-8401/I1 Interruptor de levas 3 polos, 20 A, palanca negra, montaje en panel frontal 207132

Industrial electricians and panel builders use the Eaton T0-3-8401/I1 cam switch to control three-phase circuits in machinery, control cabinets, and power distribution systems. This 3-pole switch provides reliable ON-OFF switching with a black toggle lever designed for front panel mounting.

Key specifications

• Switch type: Cam switch
• Number of poles: 3
• Switching function: ON-OFF (0-1)
• Number of switching positions: 2
• Actuator type: Toggle lever
• Actuator colour: Black
• Mounting type: Front panel mounting
• Rated operational current (AC-21A, 500 V): 20 A
• Rated operational current (AC-23A, 400 V): 13.2 A
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Rated power (AC-23A, 400 V): 5.5 kW
• Connection type: Screw terminals
• Protection degree (front): IP65
• Protection degree (rear): IP20
• Operating temperature range: -25 to +50 °C
• Electrical life: 0.2 x 10^6 operations
• Mechanical life: 0.5 x 10^6 operations

Why choose it

The Eaton T0-3-8401/I1 offers robust construction and clear switching status, making it suitable for demanding industrial environments. Its front panel mounting and screw terminals ensure secure installation and reliable connections.

Ideal use cases

• Motor control circuits
• Power distribution panels
• Machine tools and industrial equipment

Good to know

The switch complies with IEC/EN 60947, VDE 0660, UL, and CSA standards. It is designed for use in applications requiring a durable and dependable 3-pole ON-OFF switch.
