Eaton T0-4-8410/E interruptor de levas 3 polos 20A 690V 4 posiciones negro 024604

Industrial electricians and panel builders use the Eaton T0-4-8410/E cam switch to control three-phase circuits in machine control panels, motor starters, and distribution boards. The switch offers four switching positions (0-1-2-3) with a 90° switching angle, allowing manual selection of different circuit configurations. Its black handle and black 48 x 48 mm front plate provide a clean, professional appearance suitable for modern control cabinets.

Key specifications

• Type: Cam switch
• Number of poles: 3
• Rated uninterrupted current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Number of switching positions: 4 (0-1-2-3)
• Switching angle: 90°
• Mounting: Front mounting (central mounting)
• Front plate dimensions: 48 x 48 mm

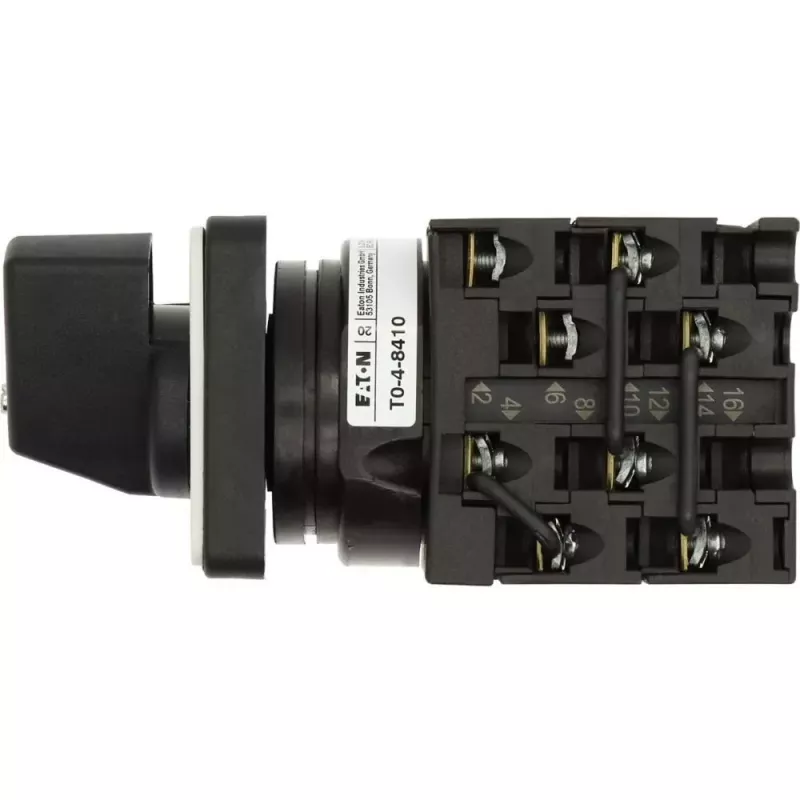

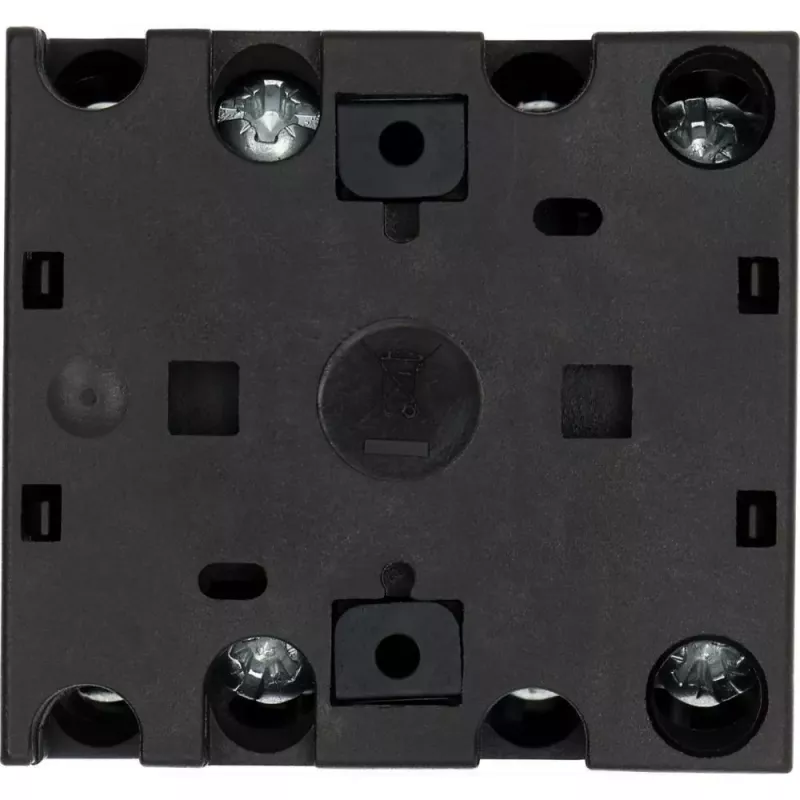

• Connection: Screw terminals
• Handle colour: Black
• Front plate colour: Black
• Protection class (front): IP65
• Protection class (terminals): IP20
• Operating temperature: -25 to +50 °C
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit current (Icw): 0.32 kA (1s)

Why choose it

The T0-4-8410/E combines robust construction with flexible switching capability. Its IP65 front protection makes it suitable for dusty or damp environments, while the screw terminals ensure secure connections. The switch complies with IEC/EN 60947, providing confidence in its performance and safety.

Ideal use cases

• Manual control of three-phase motors
• Selection of power sources or circuits in control panels
• Switching of resistive and inductive loads up to 20 A

Good to know

The switch is designed for front mounting with a central fixing, making it easy to install in standard panel cut-outs. Its black colour scheme blends well with other control devices.
