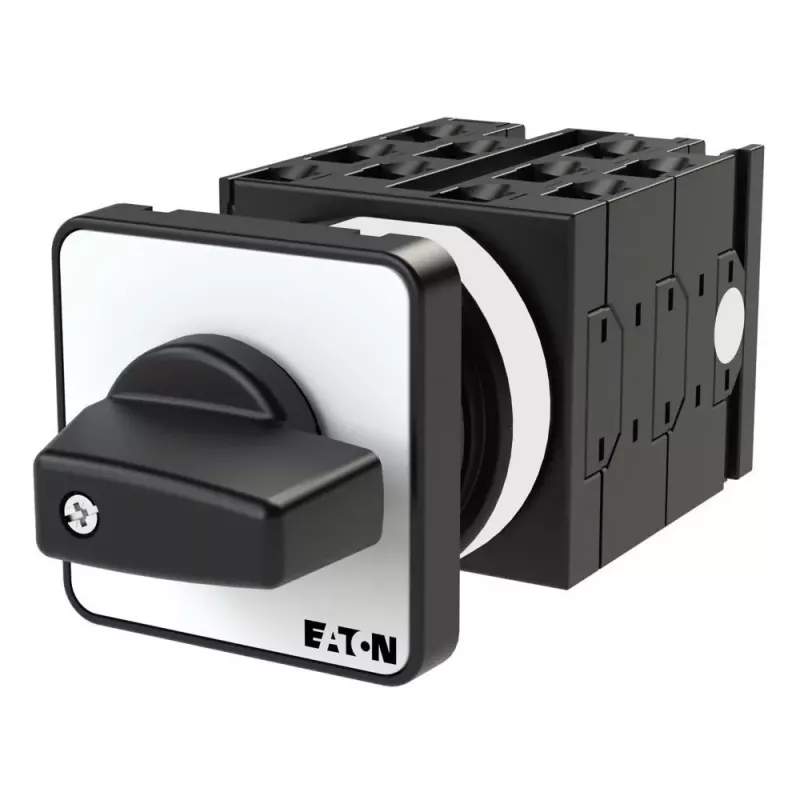

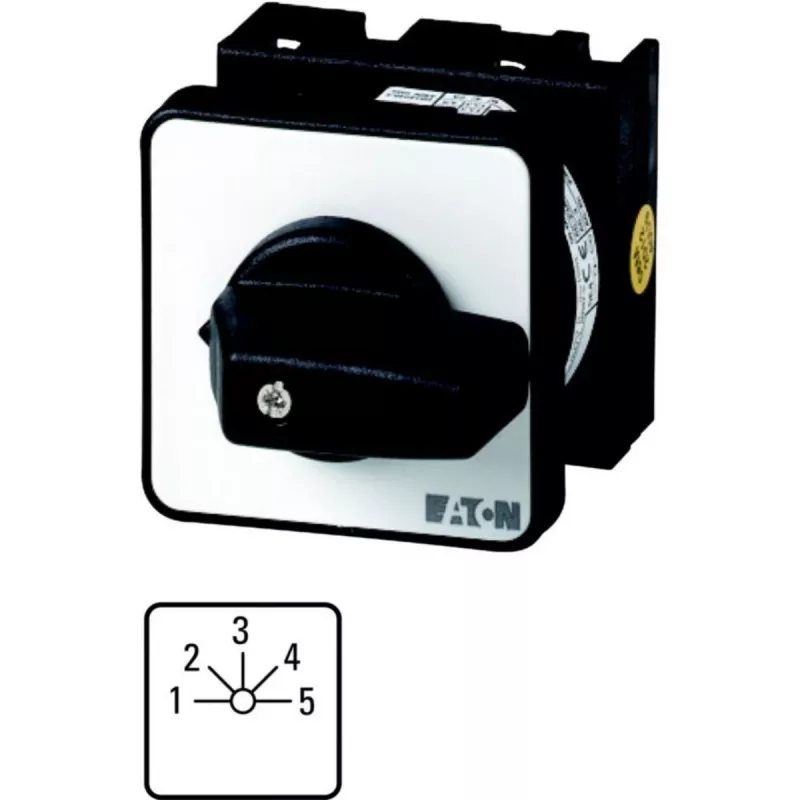

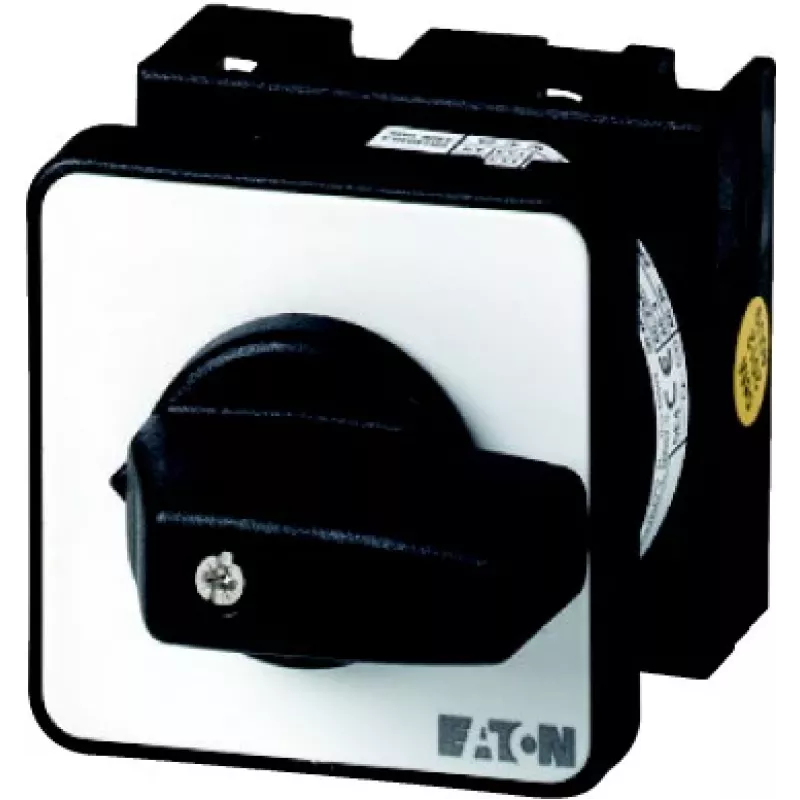

Eaton T0-5-15139/E interruptor de levas 2 polos, ON-OFF, 20A, 690V AC, montaje en panel frontal, negro/blanco 014135

Handle 20 A at 690 V AC with this 2-pole cam switch, built for front panel mounting and rated for AC-23A loads up to 5.5 kW at 400 V. The rotary knob provides a clear ON-OFF action across 90°, and the IP65 front protection suits demanding industrial environments.

Overview

The Eaton T0-5-15139/E is a 2-pole cam switch with a 1-0 (ON-OFF) switching function. It mounts through a 22.5 mm hole on a 48 x 48 mm front plate and uses screw terminals for secure wiring. The black knob and white legend plate offer high visibility.

What stands out

• Rated operational current of 20 A at 690 V AC
• IP65 front protection against dust and water jets
• Rated insulation voltage 690 V and impulse withstand 6 kV
• Compact 48 x 48 mm front plate with 22.5 mm mounting hole

Technical details

• Switch type: Cam switch
• Number of poles: 2
• Switching function: ON-OFF (1-0)
• Rated operational current (Iu): 20 A
• Rated operational voltage (Ue): 690 V AC
• Mounting type: Front panel mounting
• Actuator type: Rotary knob
• Number of switching positions: 2 (OFF, ON)
• Switching angle: 90°
• Front protection class: IP65
• Terminal type: Screw terminals
• Handle color: Black
• Legend plate color: White
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated power (AC-23A, 400V): 5.5 kW
• Standards compliance: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +50 °C
• Front plate dimensions: 48 x 48 mm
• Mounting hole diameter: 22.5 mm

Our verdict

A robust 2-pole cam switch for industrial control panels, offering high current capacity and reliable IP65 front protection.
