Eaton tapa final EK-3/16-EVGK-GVK (EP-501077)

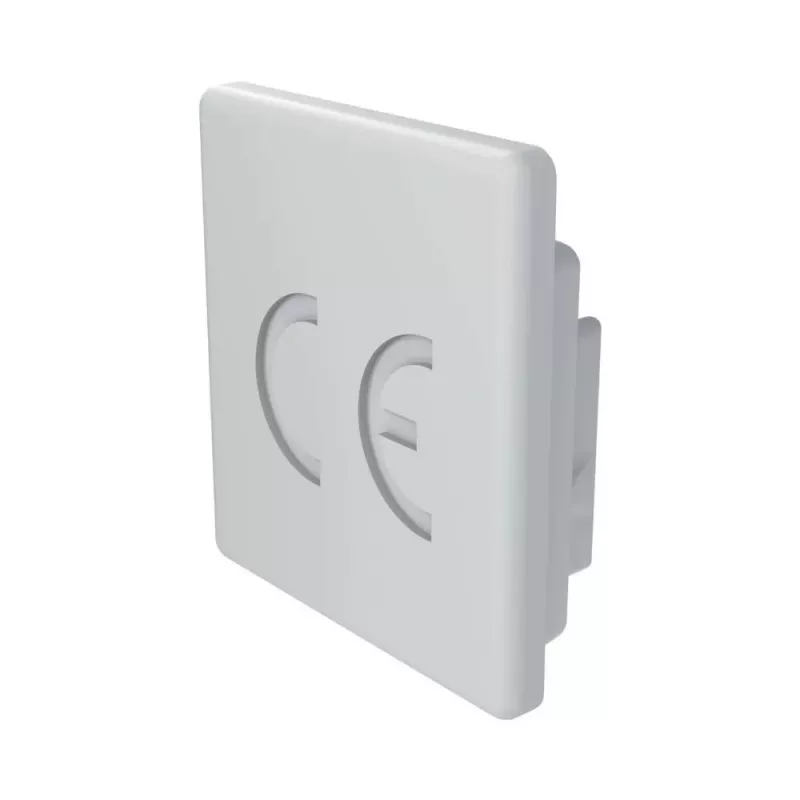

In low-voltage power distribution systems, busbar ends must be safely insulated to prevent accidental contact and short circuits. The Eaton Endkappe EK-3/16-EVGK-GVK is a busbar end cap designed for 3-pole busbar systems in Eaton xEnergy power distribution assemblies. It snaps onto the busbar ends, providing insulation and protection against accidental contact, while also offering resistance to chemicals, UV radiation, and aging. Made of high-grade insulating plastic, this end cap is suitable for operating temperatures from -25°C to +70°C and insulation voltages up to 1000 V AC / 1500 V DC. It is part of the xEnergy series and complies with IEC 61439 for low-voltage switchgear and controlgear assemblies.

Key specifications

• Product type: Busbar end cap
• Number of poles: 3-pole
• System compatibility: Eaton xEnergy busbar systems
• Material: High-grade insulating plastic
• Colour: Grey
• Mounting type: Snap-on / clip-on
• Flammability rating: Self-extinguishing (UL 94 V-0 equivalent)
• Operating temperature range: -25°C to +70°C
• Insulation voltage: Up to 1000 V AC / 1500 V DC
• Resistance: Chemicals, UV radiation, aging
• Standards compliance: IEC 61439

Why choose it

This end cap ensures safe insulation of busbar ends, preventing accidental contact and enhancing the reliability of your power distribution system. Its snap-on design allows for quick and secure installation without additional tools. The robust plastic material withstands harsh environmental conditions, making it suitable for a wide range of industrial applications.

Ideal use cases

• Terminating busbar ends in Eaton xEnergy distribution boards
• Enhancing safety in low-voltage switchgear assemblies
• Protecting busbar ends from dust, moisture, and accidental contact

Good to know

The end cap is designed for 3-pole busbar systems and is part of the Eaton xEnergy series. It meets the requirements of IEC 61439 for low-voltage switchgear and controlgear assemblies. The self-extinguishing plastic material adds an extra layer of safety in case of fire.
