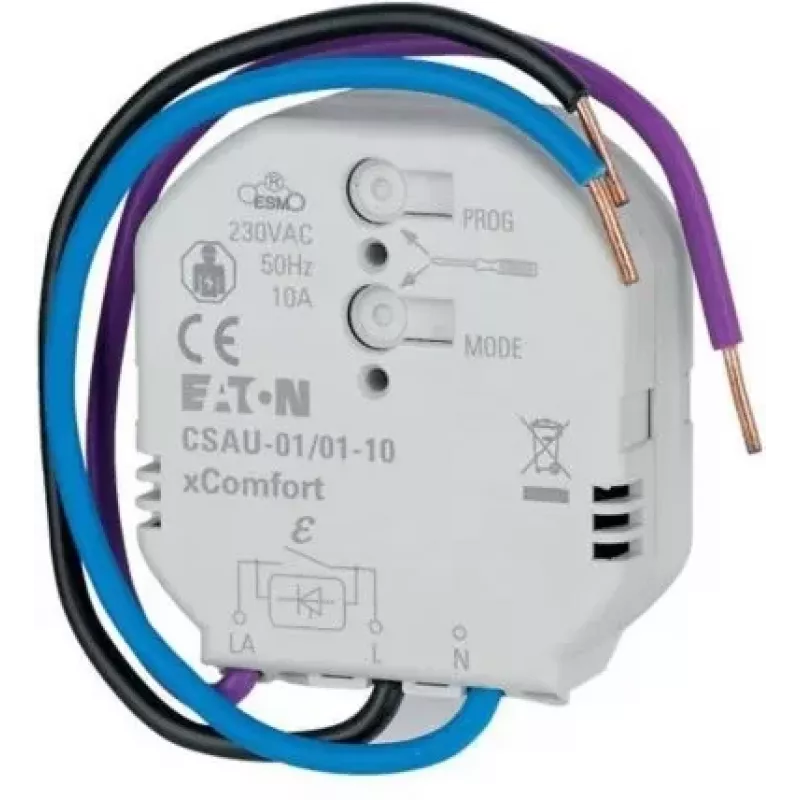

Eaton xComfort actuador de conmutación inalámbrico 10A (172937)

Manually switching lights or small loads in existing buildings often means chasing new wires, which is disruptive and expensive. The Eaton xComfort Wireless Switching Actuator 10A solves this by letting you control a 230 V load wirelessly from any xComfort transmitter or Smart Home Controller, without additional cabling.

Who is it for

Electricians and smart-home installers who need a reliable, flush-mounted switching solution for lighting or small appliances in residential or commercial retrofits. It fits standard flush boxes and integrates seamlessly into the Eaton xComfort Smart Home System.

Main features

• Wireless control via Eaton xComfort radio frequency (868.3 MHz)
• Switching capacity up to 10 A resistive load at 230 V AC
• Supports resistive, inductive, and capacitive loads (max 6 A for inductive/capacitive at cos φ=0.6)
• Flush-mounted design for standard flush boxes
• Low standby power consumption under 0.5 W
• Operates in temperatures from -5 °C to +45 °C

Specifications

• Device type: Wireless switching actuator
• Wireless technology: Eaton xComfort (Radio Frequency)
• Operating voltage: 230 V AC, 50 Hz
• Number of channels: 1
• Mounting type: Flush-mounted
• Radio frequency: 868.3 MHz
• Standby power consumption: < 0.5 W
• Load types supported: Resistive, inductive, capacitive
• Max. inductive load (cos φ=0.6): 6 A
• Max. capacitive load (cos φ=0.6): 6 A
• Housing material: Plastic

Tips

Ensure the load is protected by an external fuse or circuit breaker, as the actuator does not provide overload or short-circuit protection. Pair it with an xComfort transmitter or Smart Home Controller for remote operation and automation.
