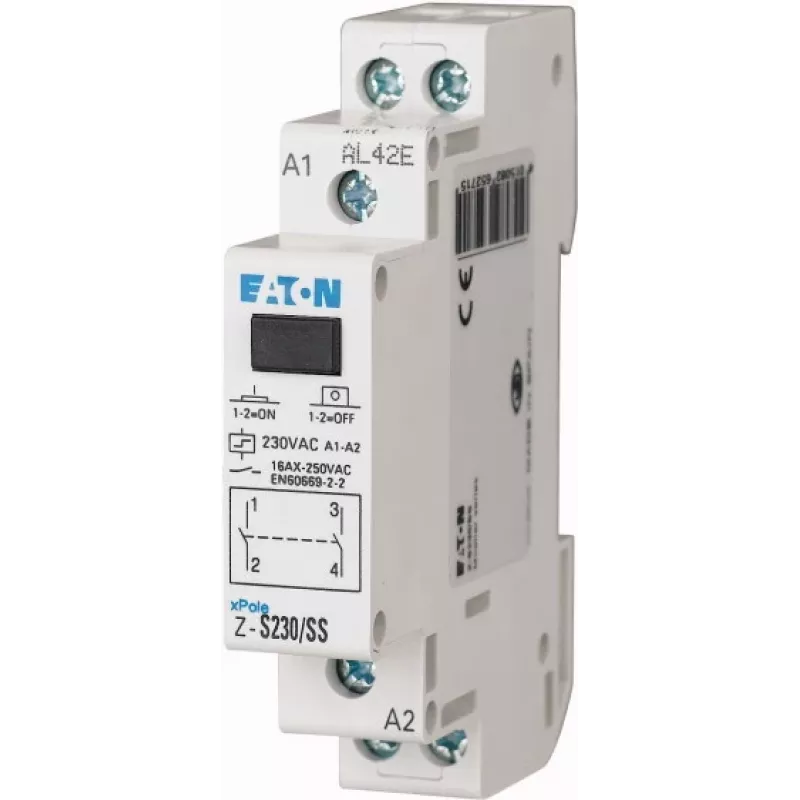

Eaton Z-S230/SS Contactor modular 2NO 20A 230V AC blanco 265271

The Eaton Z-S230/SS stands out as a modular contactor designed for DIN rail installation, offering reliable switching in a compact 1-module width. Its 2 normally open contacts handle up to 20 A at 230 V AC, making it suitable for lighting and heating control in residential and commercial settings.

Highlights

• 2-pole, 2 NO contact configuration
• Rated operational current 20 A at 230 V AC
• Control voltage 230 V AC, 50/60 Hz
• Compact 1-module (17.5 mm) width
• Screw terminals for secure wiring

In daily use

Mount the contactor on a DIN rail and connect the control circuit to the 230 V AC coil. When energized, both contacts close simultaneously, switching the load circuit. The white housing blends with standard electrical panels, and the IP20 terminal protection ensures safe operation in dry environments.

Full specifications

• Rated insulation voltage (Ui): 440 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Electrical durability: 100,000 operations
• Mechanical durability: 1,000,000 operations
• Operating temperature: -25 to +50 °C
• Degree of protection: IP20 (terminals), IP40 (front)

Final note

A dependable modular contactor for standard 230 V AC switching tasks, combining compact size with robust performance.
