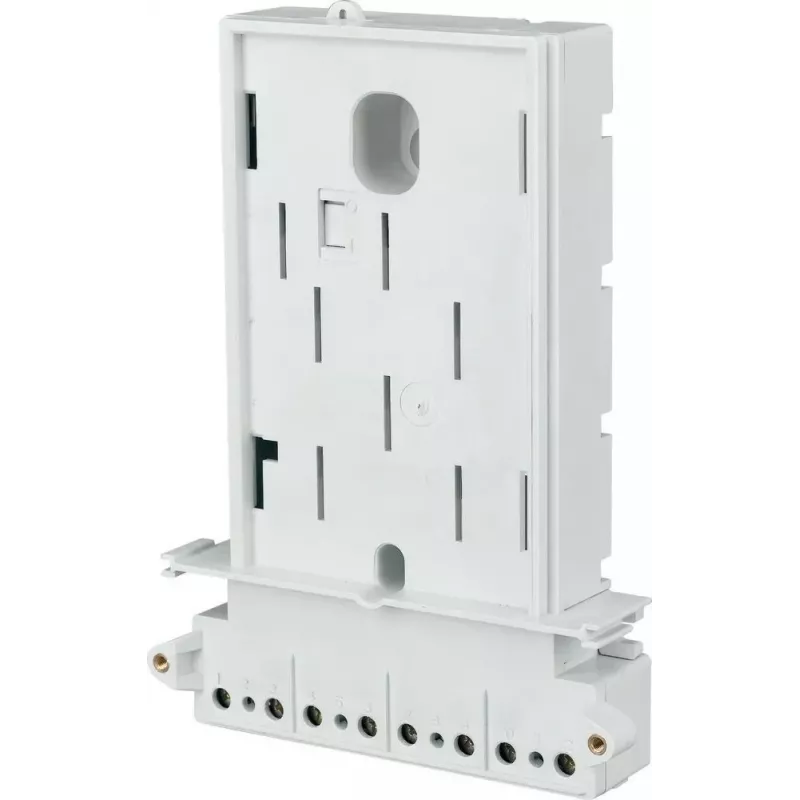

Eaton ZSD-Z3 adaptador eHZ 113089

Electricians retrofitting meter cabinets often struggle to fit compact electronic household meters (eHZ) into existing 3-point mounting systems. The Eaton ZSD-Z3 eHZ Adapter solves this by providing a secure mechanical interface, allowing quick and reliable installation without custom brackets or modifications.

Key specifications

• Adapter type: eHZ adapter for electronic household meters
• Meter-side mounting: eHZ standard mounting
• Cabinet-side mounting: 3-point mounting (Dreipunktbefestigung)
• Material: durable thermoplastic
• Colour: light grey, RAL 7035
• Number of meter positions: 1
• Manufacturer part number: 113089

Why choose it

The ZSD-Z3 adapter streamlines eHZ meter installation by eliminating the need for custom brackets or modifications. Its robust thermoplastic construction withstands mechanical stresses in meter cabinets, while the light grey RAL 7035 finish blends seamlessly with standard electrical enclosures. Designed specifically for Eaton's ZSD series, it ensures perfect compatibility and long-term reliability.

Ideal use cases

• Retrofitting existing meter cabinets to accept eHZ meters
• New installations in residential distribution boards
• Commercial and industrial sub-metering applications
• Standardizing meter mounting across multiple installations

Good to know

The adapter is intended for use in meter cabinets and distribution boards, providing a code-compliant mounting solution. It is part of the Eaton ZSD series.
