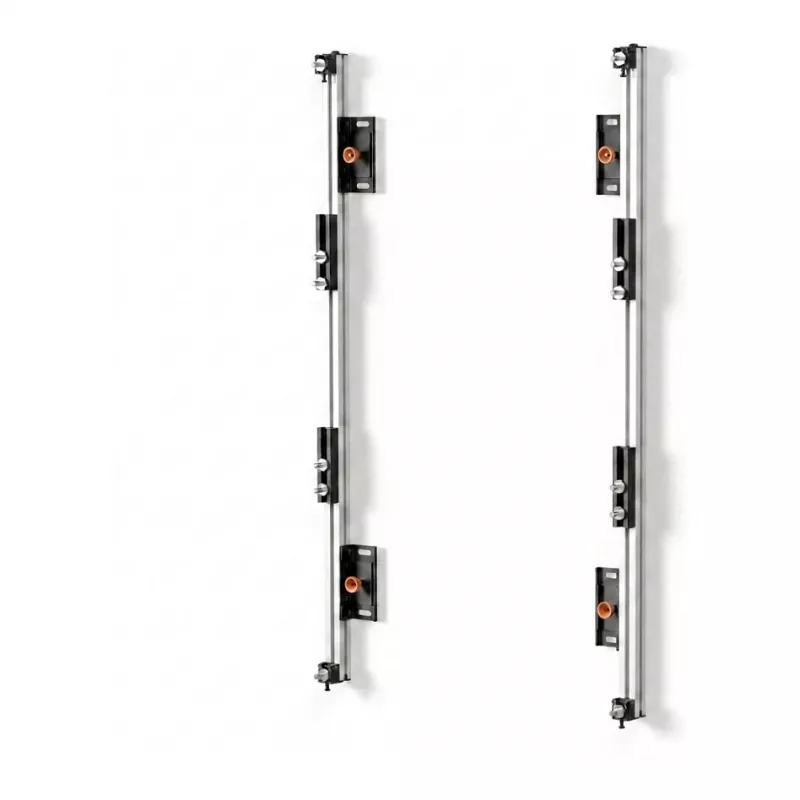

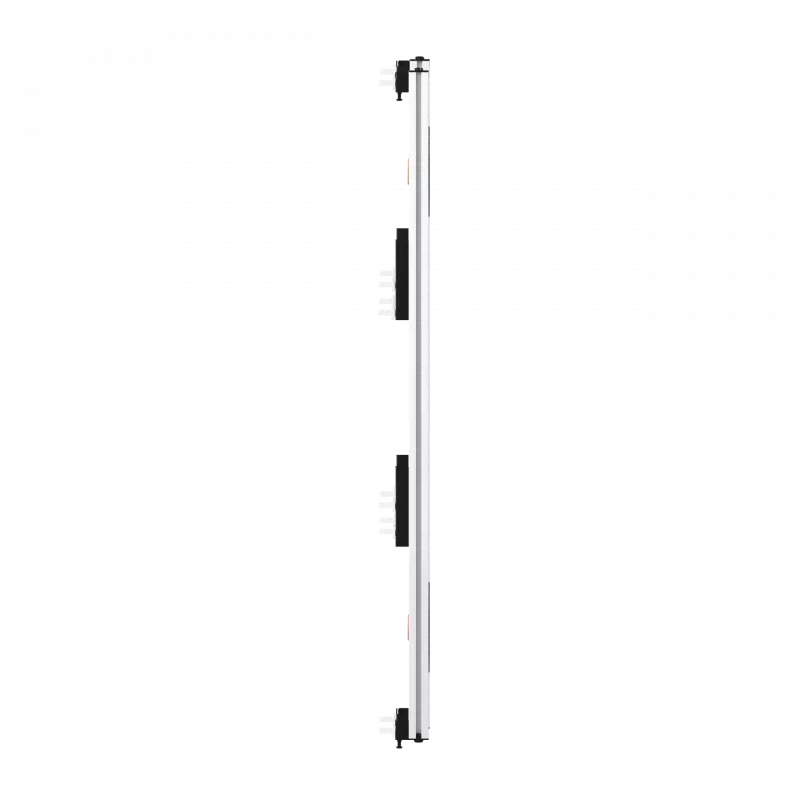

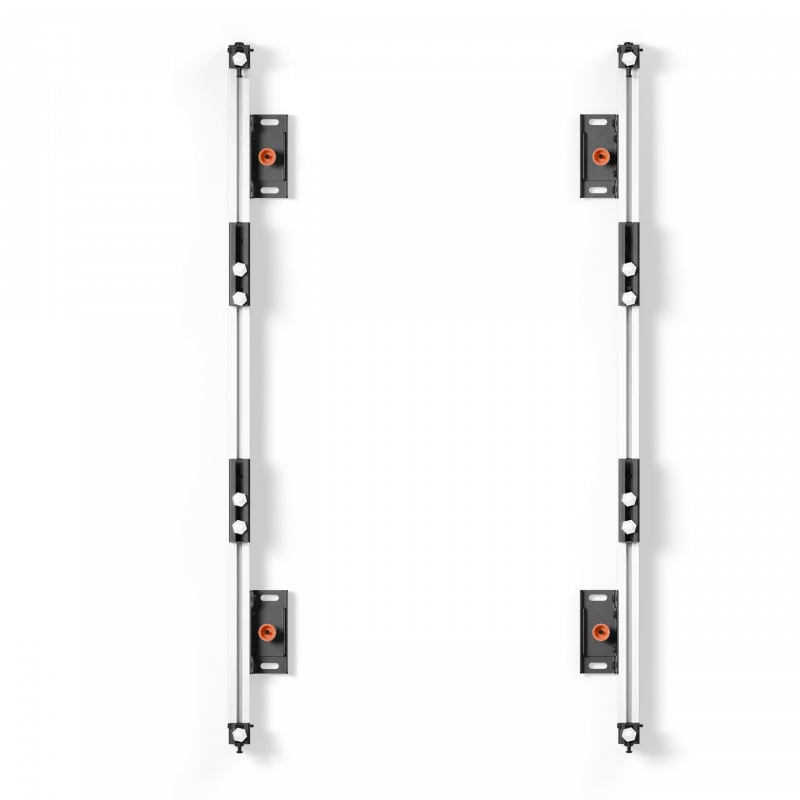

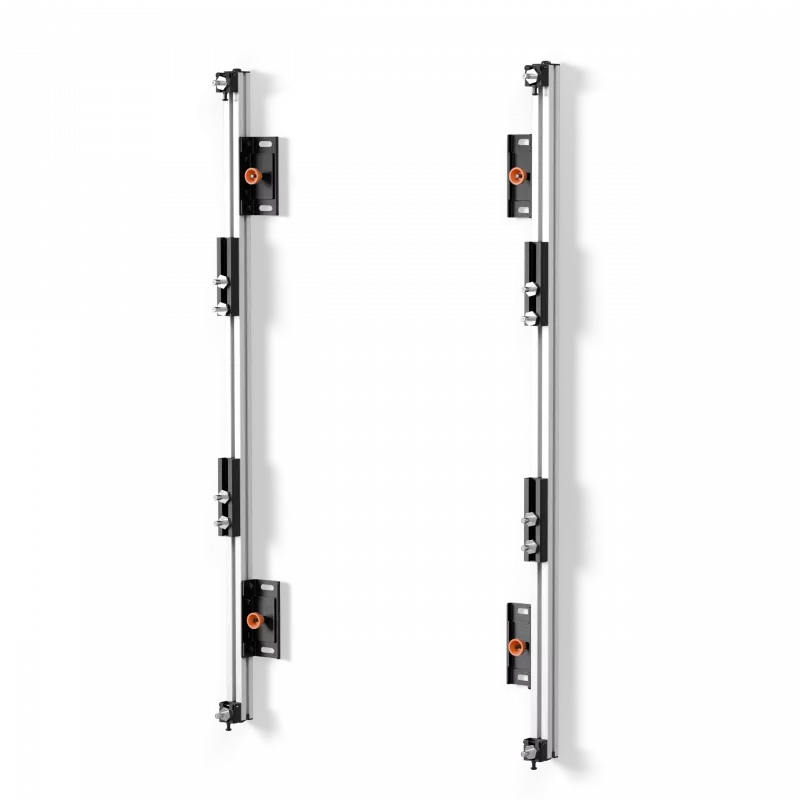

EDBAK ULS3337 sistema LED universal para 3 cajas 600 x 337,5 mm | Negro

The EDBAK ULS3337 is a universal LED video wall mounting frame engineered to support up to three LED cabinets, each measuring 600 x 337.5 mm. Its high-grade steel construction with durable powder coating delivers exceptional stability for indoor installations, while the modular design allows flexible configuration in wall-mounted, floor-standing, or suspended setups.

Advantages

Precise 6-axis micro-adjustment ensures seamless panel alignment, eliminating visible gaps and uneven surfaces. Integrated cable management keeps wiring tidy and hidden, while tool-less panel mounting accelerates assembly and reduces installation time. The fully modular and expandable structure adapts to evolving display requirements, making it a future-proof investment for dynamic environments.

Suitable for

• Indoor LED video walls in retail, corporate, entertainment, and control room settings
• Configurations requiring up to three 600 x 337.5 mm LED cabinets
• Wall-mounted, floor-standing, or suspended installations

Key specifications

• Brand: EDBAK
• Model: ULS3337
• MPN: ULS3337
• EAN: 5902841110151
• Product Colour: Black
• Material: High-grade Steel
• Finish: Durable Powder Coating
• Number of LED Cabinets Supported: 3
• LED Cabinet Dimensions Supported: 600 x 337.5 mm
• Mounting Configuration: Modular (wall, floor, suspended)
• Micro-Adjustment Capability: Yes (6-axis)
• Integrated Cable Management: Yes
• Assembly: Tool-less panel mounting
• Modularity: Fully modular and expandable
• Maximum Load Capacity: Up to 150 kg
• Minimum Installation Depth: Approx. 75 mm (wall-mounted)
• Adjustable Depth: Yes
• Orientation Support: Landscape

Recommendations

For seamless indoor LED video walls, pair the ULS3337 with EDBAK-compatible cabinets and professional installation services to maximize alignment precision and long-term reliability.
