Switch gestionado Edgecore ECS5520-18T Layer 2+ con 16x 10GbE SFP+ y 2x 40GbE QSFP+ F0PEC5520200S

Aggregating high-bandwidth access in enterprise and campus networks demands a switch that can handle dense 10G connectivity without bottlenecks. The Edgecore ECS5520-18T addresses this need with a compact 1U form factor, combining sixteen 10GbE SFP+ ports and two 40GbE QSFP+ uplinks for flexible, high-speed aggregation.

Who is it for

This managed Layer 2+ switch suits network administrators and IT teams who need to connect multiple 10G devices—servers, storage, or access switches—while maintaining simple management and reliable performance. It is ideal for small to medium-sized enterprise networks or campus distribution layers.

Main features

• 16 x 10GbE SFP+ ports for high-density fiber or copper connectivity.
• 2 x 40GbE QSFP+ uplink ports for high-capacity uplinks or stacking.
• Full Layer 2+ management with static routing and VRRP for basic L3 redundancy.
• 480 Gbps switching capacity and 357 Mpps forwarding rate for line-rate performance.
• Dual-core ARM Cortex A9 CPU with 2 GB DDR3 RAM for responsive management.
• Hot-swappable fans with front-to-back airflow for reliable cooling.

Specifications

• Total ports: 18 (16x 10GbE SFP+, 2x 40GbE QSFP+)
• Console port: 1x RJ-45
• Management port: 1x RJ-45 out-of-band
• Switching capacity: 480 Gbps
• Forwarding rate: 357 Mpps
• MAC address table: 32K entries
• VLAN support: 4K (IEEE 802.1Q)
• Jumbo frame support: up to 12K bytes
• Layer 3 features: static routing, VRRP
• CPU: Dual-core ARM Cortex A9
• DRAM: 2 GB DDR3
• Flash: 16 MB SPI Flash, 4 GB eMMC
• Power supply: single AC, 100-240V, 50/60 Hz
• Max power consumption: 70 W (without optics)

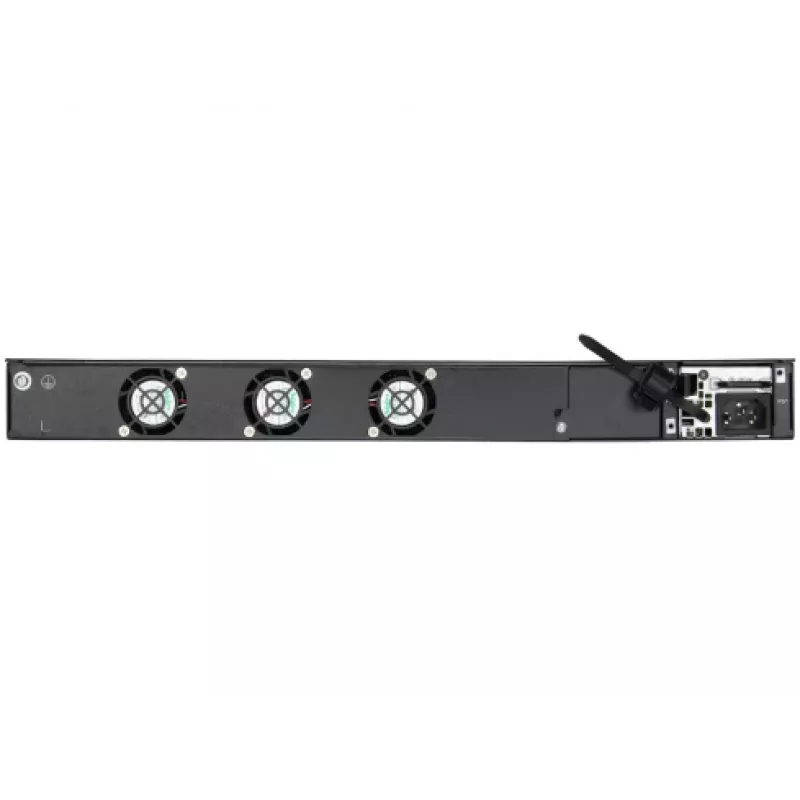

• Fans: 3x hot-swappable, front-to-back airflow
• Form factor: 1U rack-mountable
• Operating temperature: 0°C to 45°C (32°F to 113°F)

Tips

To maximize the switch's potential, use the 40GbE QSFP+ ports for uplinks to the core or for stacking multiple units. Ensure proper airflow in the rack—front-to-back—and keep the ambient temperature within the specified range for optimal reliability.
