EFB Electronics I-V(ZN)HH 8E 9/125 OS2 Cable Breakout 2,8 mm Amarillo

The EFB Electronics I-V(ZN)HH 8E 9/125 OS2 breakout cable is a high-performance indoor fiber optic cable designed for reliable single-mode transmission. With 8 fibers and a 2.8 mm sub-unit diameter, this LSZH (Low Smoke Zero Halogen) cable ensures safety and durability in sensitive environments. Its yellow jacket provides easy identification, making it ideal for structured cabling and data center applications.

Advantages

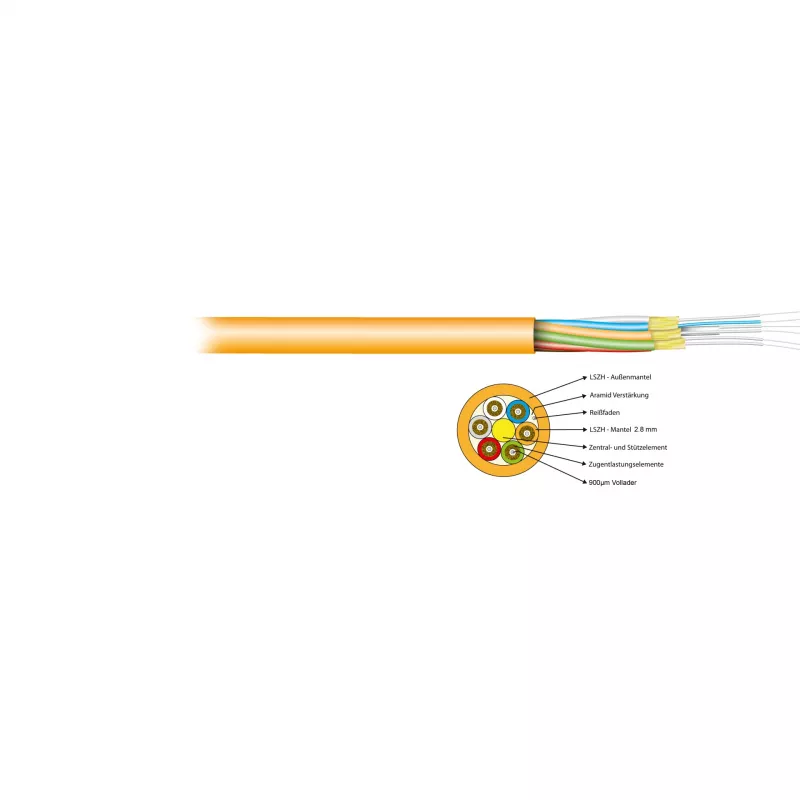

This breakout cable offers exceptional attenuation performance (≤0.35 dB/km at 1310 nm and ≤0.25 dB/km at 1550 nm), ensuring low signal loss over long distances. The halogen-free, flame-retardant design meets IEC 60332-1 standards, providing enhanced safety. Its robust construction with a non-metallic central strength member and individual buffered fibers allows for easy termination and flexibility in installation.

Suitable for

• Indoor fiber optic networks
• Data centers and server rooms
• Telecommunications infrastructure
• LAN and WAN backbone connections
• FTTx and enterprise cabling

Key specifications

• Cable Type: Breakout Fiber Optic Cable
• Fiber Type: Single-mode OS2
• Number of Fibers: 8
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Sub-Unit Diameter: 2.8 mm
• Overall Cable Diameter: Approx. 10.5 mm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Minimum Bend Radius (Static): 10 x Outer Diameter
• Minimum Bend Radius (Dynamic): 20 x Outer Diameter
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Standards Compliance: IEC 60794-2, IEC 60332-1, IEC 60754-1/2, IEC 61034-1/2

Recommendations

For optimal performance, use with appropriate OS2 connectors and ensure proper cable management to maintain bend radius specifications. This cable is ideal for backbone installations where high bandwidth and low latency are critical.
