Módulo Keystone EFB Elektronik E-20070

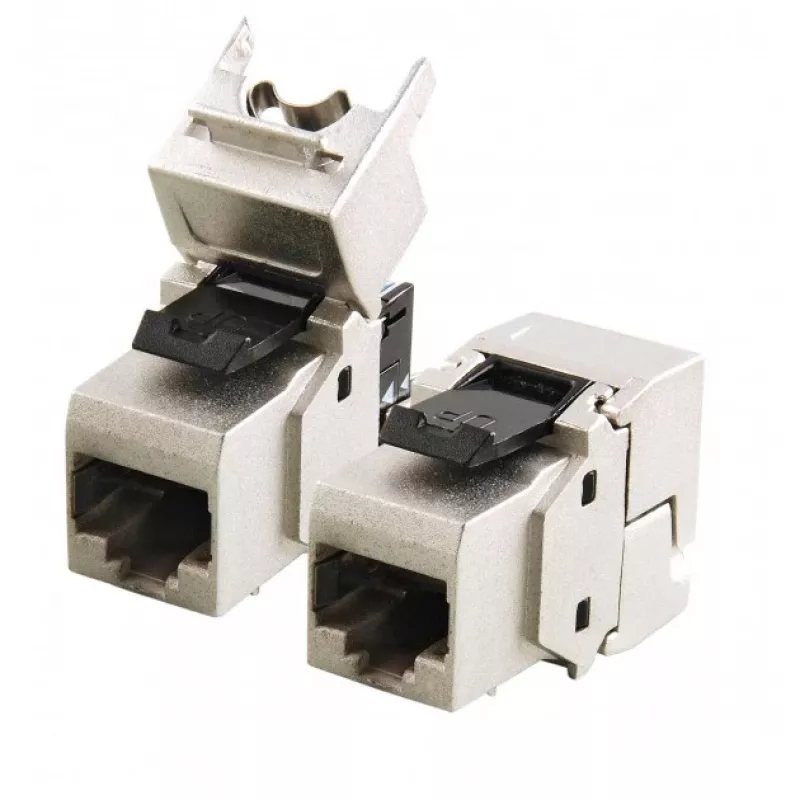

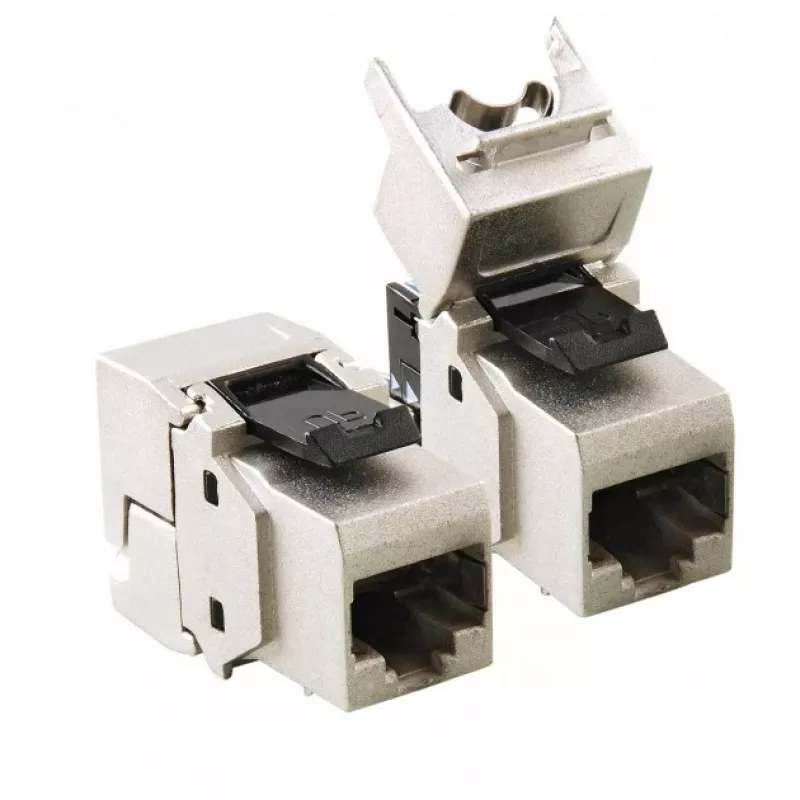

Keystone jack with zinc die-cast housing and a separate dust cover designed for reliable network connections. The module provides Class EA performance according to ISO 11801 AMD1:2009 and AMD2:2010-04 and includes a compact cable manager compatible with conductor sizes AWG24/1 to AWG22/1.

Advantages

The zinc die-cast housing ensures mechanical durability while the separate dust cover protects contacts when not in use. Class EA conformity guarantees high-frequency performance suitable for 10 Gigabit Ethernet applications. Built-in compact cable management simplifies termination for AWG24/1 to AWG22/1 conductors and the jack supports PoE+ (IEEE 802.3at). Strain relief via a cable tie reduces mechanical stress on the cable termination.

Key specifications

• Housing material: zinc die-cast
• Dust cover: separate, removable
• Performance class: EA (ISO 11801 AMD1:2009; AMD2:2010-04)
• Cable manager: compact, for AWG24/1 .. AWG22/1
• Pair wiring: TIA/EIA 568 A/B
• PoE support: PoE+ (IEEE 802.3at)
• Strain relief: via cable tie

How to use

Strip the cable according to standard installation practice, insert conductors into the compact cable manager and follow TIA/EIA 568 A or B pair assignment when terminating. Seat the module in the keystone opening, attach the separate dust cover if required, and secure strain relief with a cable tie to minimise stress on the termination. Verify continuity and performance after installation.

Recommendations

Use this keystone jack for installations requiring Class EA performance and PoE+ capability. Match conductor size to AWG24/1–AWG22/1, adhere to TIA/EIA pair wiring, and perform post-installation tests to confirm link quality.
