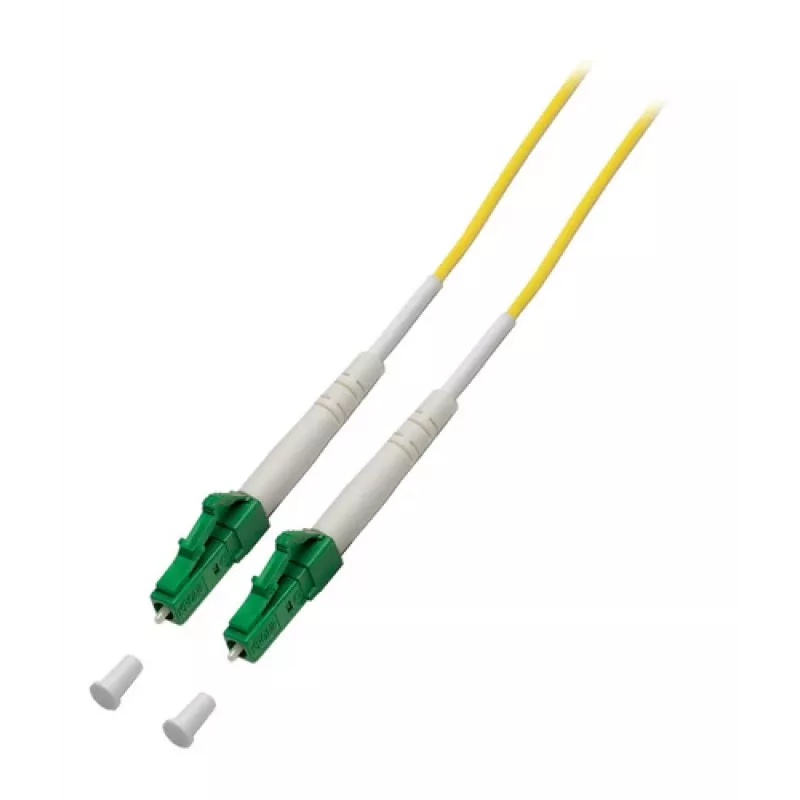

EFB Electronics O2519.1 Cable de parcheo de fibra óptica simplex LC/APC a LC/APC 9/125 OS2 1 m G.657.A2

The EFB Electronics O2519.1 is a high-quality simplex fibre optic patch cable designed for single-mode applications. Featuring LC/APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, FTTH, and LAN networks. The 9/125 µm core/cladding diameter complies with OS2 fibre class, and the bend-insensitive G.657.A2 standard provides excellent resistance to bending and stress. With a 1-meter length and yellow LSZH jacket, this cable is RoHS and REACH compliant.

Advantages

This patch cable offers superior performance with typical insertion loss ≤0.2 dB and return loss ≥60 dB. The LSZH jacket ensures safety in enclosed spaces, while the bend-insensitive design simplifies installation in tight spaces. The simplex configuration is perfect for point-to-point connections.

Suitable for

• Data center cabling
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Any single-mode fibre optic connection requiring LC/APC interfaces

Key specifications

• Fibre Type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connectors: LC/APC to LC/APC
• Cable Length: 1 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 2.0 mm
• Insertion Loss: ≤0.2 dB typical
• Return Loss: ≥60 dB typical
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards: ITU-T G.657.A2, RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC/APC ports. Ideal for use in high-density environments where bend resistance is critical.
