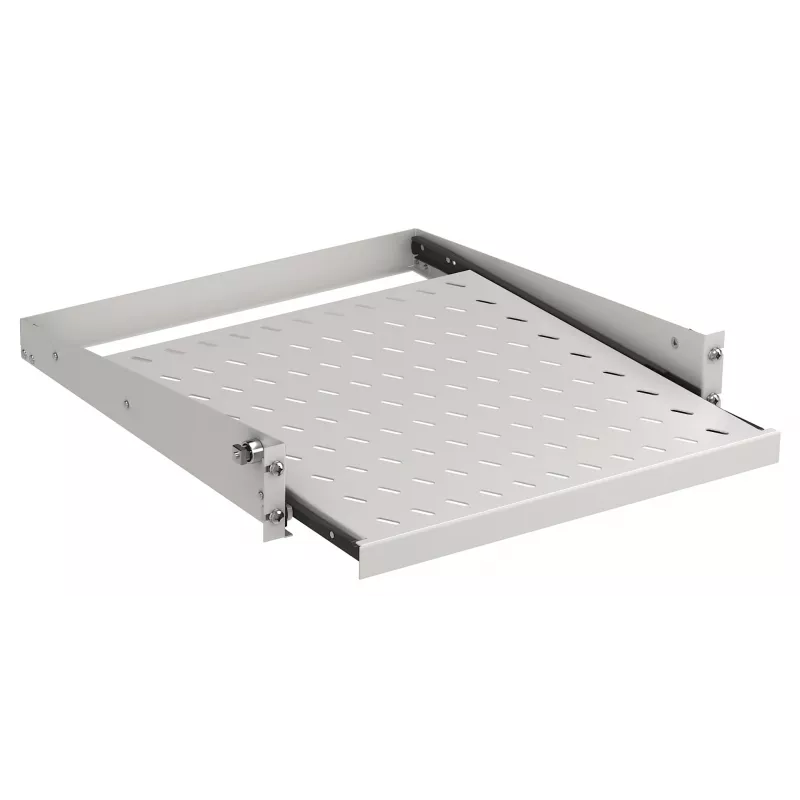

EFB Elektronik bandeja extraíble de 19" 2U, 355 mm de profundidad, montaje frontal, 20 kg, gris claro RAL 7035

Server rooms and network cabinets often lack a stable, accessible surface for non-rackmount devices like keyboards, monitors, or test equipment. This EFB Elektronik 2U extendable shelf solves that by providing a sturdy, sliding platform that pulls out for easy access and tucks away neatly when not in use. With a 20 kg load capacity and front mounting, it's a practical addition to any 19-inch rack.

Who is it for

IT administrators, network engineers, and AV technicians who need to mount non-rackmount equipment in a standard 19-inch cabinet. Ideal for data centers, server rooms, and industrial control environments where space is at a premium and accessibility is key.

Main features

• Extendable design: shelf slides out smoothly for convenient access to equipment.
• 2U height: occupies only 2 rack units, maximizing vertical space.

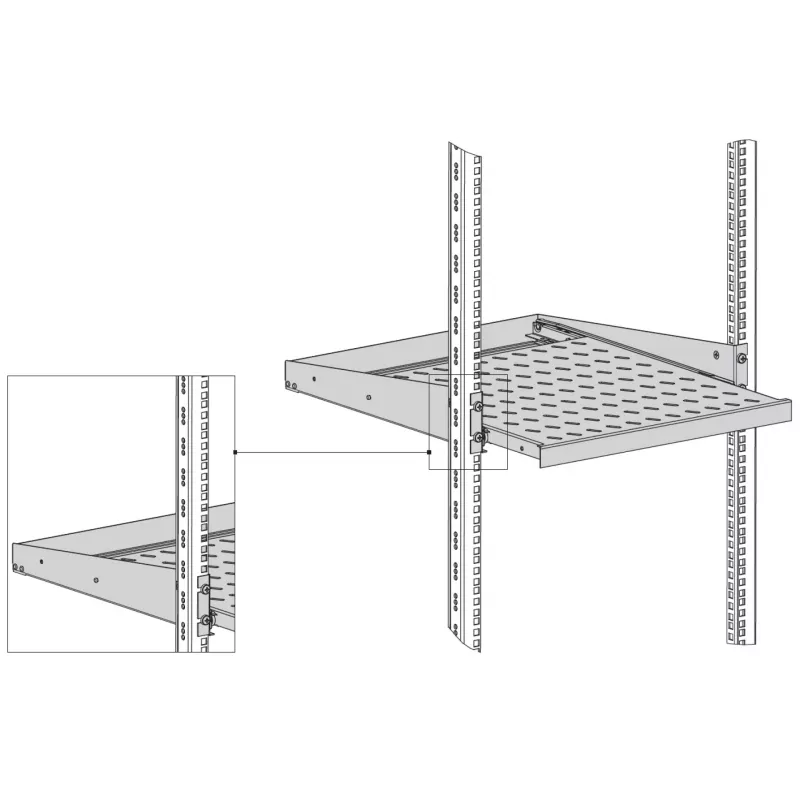

• Front mounting: installs easily onto front rack rails without rear support.
• 20 kg load capacity: supports keyboards, monitors, small UPS units, and more.
• Durable steel construction with powder-coated finish in RAL 7035 light grey.
• 355 mm depth: fits standard 19-inch cabinets with limited depth.

Specifications

• Rack standard: 19 inch
• Rack units: 2U
• Shelf type: extendable / sliding
• Mounting type: front mounting
• Load capacity: 20 kg
• Shelf depth: 355 mm
• Colour: RAL 7035 light grey
• Material: steel
• Finish: powder-coated
• Overall width: 483 mm
• Overall height: 88.9 mm
• Sliding mechanism: yes
• Compatibility: standard 19-inch server and network cabinets
• Application: storage for non-rackmount equipment, keyboards, monitors

Tips

To ensure smooth operation, periodically clean the sliding rails and apply a light lubricant if needed. When mounting, verify that the front rails are securely fastened to support the shelf and its load.
