EFB Elektronik Cable de conexión Lengüeta de soldadura E2000/APC Monomodo (M) 2 m Amarillo

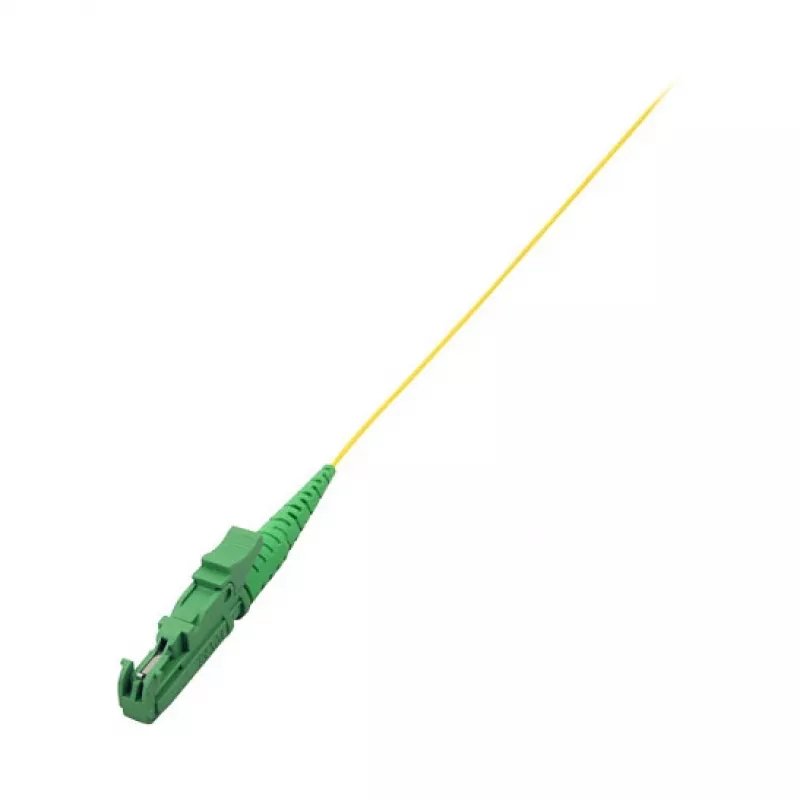

The EFB Elektronik O0770.2 is a high-quality fiber optic connection cable with solder tag, designed for E2000/APC single-mode applications. This duplex patch cable features a 2-meter length, LSZH jacket, and zirconia ceramic ferrule, ensuring reliable performance in data centers, telecommunications, LAN, and FTTx networks.

Advantages

Low insertion loss (≤0.25 dB) and high return loss (≥60 dB) guarantee excellent signal integrity. The APC polish minimizes back reflection, while the LSZH jacket provides safety in confined spaces. Durable construction with 9/125 µm fiber core/cladding ensures long-term stability.

Suitable for

• Data centers
• Telecommunications
• Local Area Networks (LAN)
• FTTx deployments

Key specifications

• Connector Type: E2000/APC to E2000/APC
• Fiber Type: Single-Mode (SM) OS2
• Cable Configuration: Duplex
• Cable Length: 2 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.25 dB
• Return Loss: ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is ideal for high-speed single-mode connections requiring low loss and high return loss.
