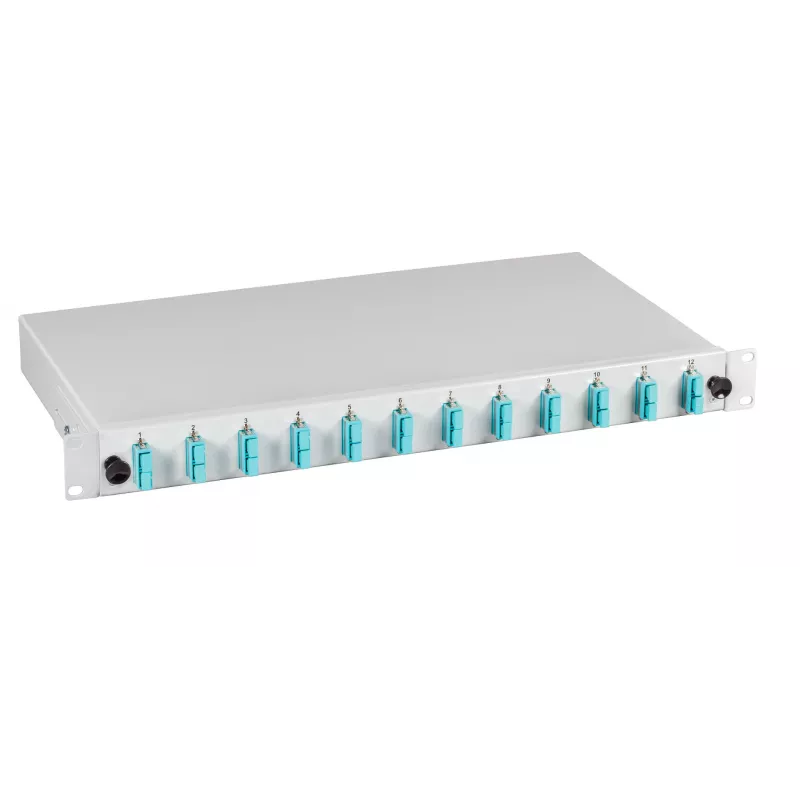

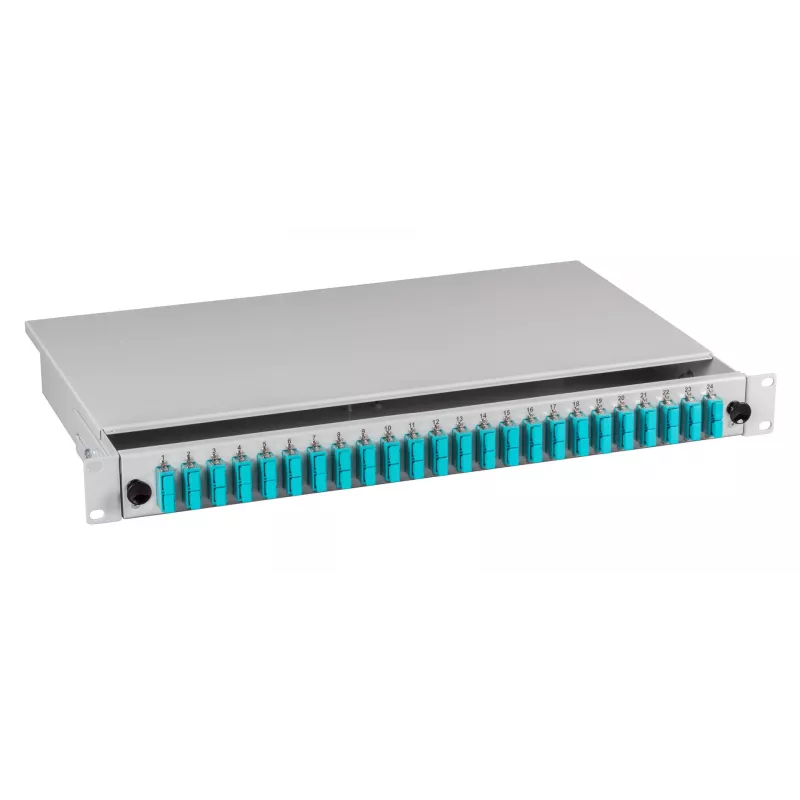

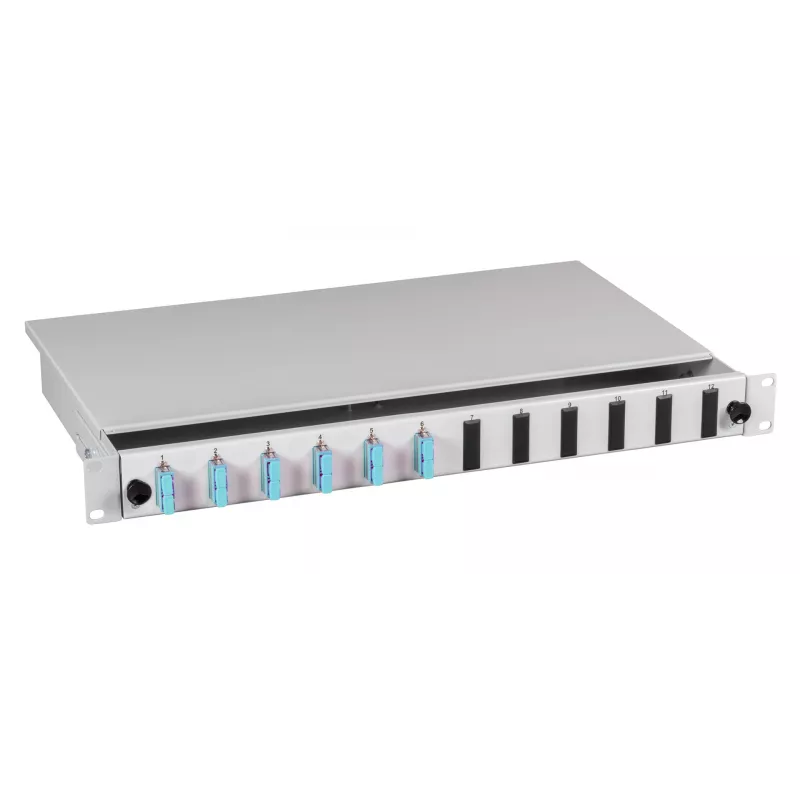

EFB Elektronik caja de empalme de fibra óptica para montaje en rack de 19 inch 1U SC/SC 50/125µm multimodo, 24 pigtails, 12 adaptadores dúplex, cajón, gris claro

This 19-inch rack mount fiber optic splice box provides a robust and organized termination point for multimode 50/125 µm networks. Its sliding drawer design grants full access to 24 SC pigtails and 12 SC duplex adapters, making splicing, patching, and maintenance straightforward in high-density installations.

Advantages

The 1U steel housing saves valuable rack space while protecting sensitive fiber splices. All 24 pigtails are color-coded according to IEC 60304, eliminating guesswork during installation. The extractable drawer locks in both open and closed positions, ensuring safe handling of fibers and splice cassettes.

Suitable for

• Enterprise data centers requiring structured multimode fiber distribution
• Telecommunication rooms and campus backbone cross-connects
• 19-inch rack environments needing a compact, high-density splice solution
• Installations where future moves, adds, and changes demand easy access

Key specifications

• Rack units: 1U, 19-inch mounting standard
• Fiber type: Multimode 50/125 µm
• Adapter type: SC Duplex, 12 adapters (24 fiber positions)
• Pigtails: 24 x SC, 2 m length, IEC 60304 color coding
• Splice capacity: 2 x 12-fiber splice cassettes
• Housing: Steel, light grey (RAL 7035), 4 rear cable entry points

Recommendations

Pair this splice box with standard SC duplex multimode patch cords and fusion splice protectors. For high-density racks, consider using angled adapters or high-density patch panels to optimize cable management.
