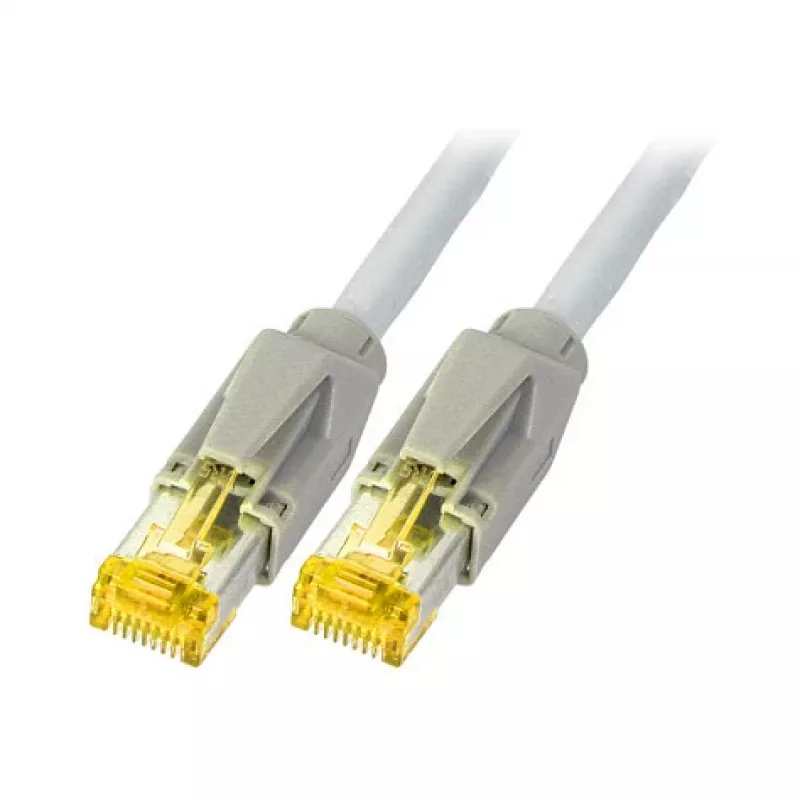

EFB-Elektronik Cable de conexión RJ45 Cat.6A S/FTP LSZH Dätwyler 7702 TM31 Gris 2m

The EFB-Elektronik RJ45 Patch Cable Cat.6A S/FTP LSZH Dätwyler 7702 TM31 is a high-performance network cable designed for demanding data center and enterprise environments. Featuring a robust S/FTP shielding and premium Dätwyler 7702 TM31 core, this 2-meter grey patch cable ensures reliable 10 Gigabit Ethernet connectivity with minimal crosstalk and interference.

Advantages

This cable offers superior signal integrity and noise protection thanks to its S/FTP (Screened/Foiled Twisted Pair) construction. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. Stranded conductors provide flexibility for easy routing and installation.

Suitable for

• Data centers and server rooms requiring high-speed 10GBASE-T connections
• Enterprise networks where signal quality and reliability are critical
• PoE (Power over Ethernet) applications such as IP cameras, access points, and IoT devices
• Installations in public buildings, schools, and hospitals where LSZH materials are mandated

Key specifications

• Cable Type: RJ45 Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 2 meters
• Color: Grey
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Material: Bare Copper
• Conductor Gauge: AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA-568B
• Cable Construction: Stranded
• Core Cable Brand/Model: Dätwyler 7702 TM31
• Flammability Rating: IEC 60332-1-2 compliant
• Halogen-Free: Yes
• Application: Data Network, Ethernet, PoE compatible

Recommendations

For optimal performance in high-speed networks, pair this cable with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
