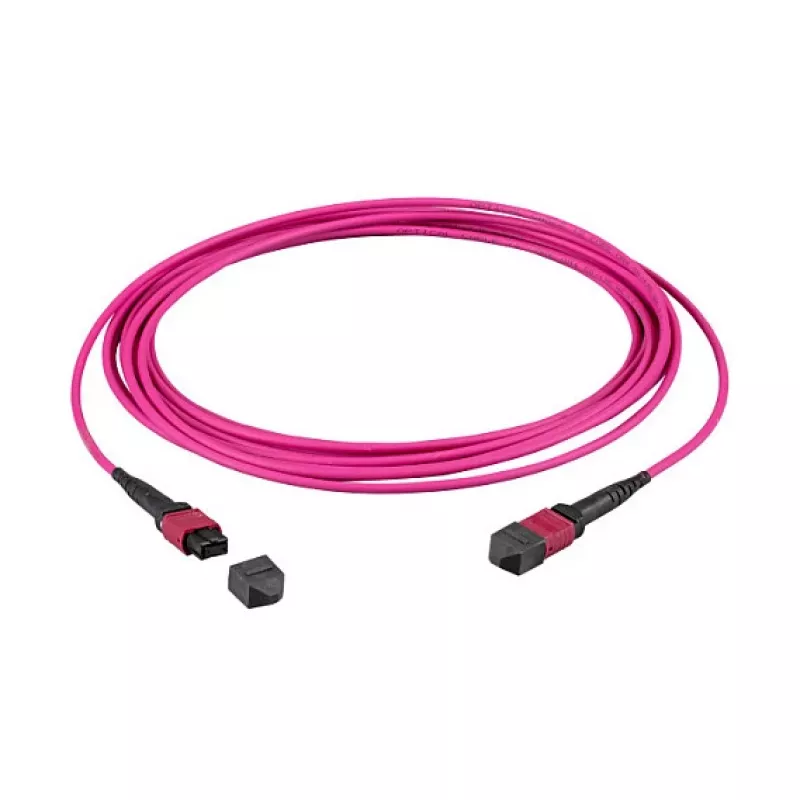

EFB-Elektronik Cable de parcheo MTP hembra a MTP hembra 12 fibras multimodo OM4, LSZH, Erika Violet, Type B, 7,5m

The EFB-Elektronik MTPF12MTPFOM4-7,5 is a high-performance 12-fiber multimode OM4 patch cable designed for demanding data center and enterprise network environments. Featuring MTP female connectors on both ends, this cable ensures reliable, low-loss connections for high-speed applications such as 10G, 40G, and 100G Ethernet. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the erika violet color aids in easy identification. With a length of 7.5 meters and Type B polarity, this cable is ideal for structured cabling systems requiring precise fiber alignment.

Advantages

Optimized for high-bandwidth applications, this MTP patch cable delivers exceptional performance with low insertion loss and high return loss. The LSZH jacket minimizes toxic smoke and corrosive gases in case of fire, making it suitable for use in plenum areas and data centers. The robust construction ensures durability and long-term reliability, while the color-coded jacket simplifies cable management.

Suitable for

• Data center interconnects
• High-speed Ethernet networks (10G, 40G, 100G)
• Fibre Channel storage area networks
• Telecommunications infrastructure
• Structured cabling systems requiring MTP connectivity

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Fiber Count: 12 Fibers
• Connector A: MTP Female
• Connector B: MTP Female
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Erika Violet
• Cable Length: 7.5 meters
• Polarity: Type B
• Core/Cladding Diameter: 50/125 µm
• Insertion Loss (Typical): ≤ 0.35 dB
• Return Loss (Typical): ≥ 20 dB
• Attenuation @ 850nm: ≤ 3.0 dB/km
• Attenuation @ 1300nm: ≤ 1.0 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH
• Standards: IEC 61754-7, TIA/EIA-604-5 (FOCIS 5)
• Application: 10G/40G/100G Ethernet, Fibre Channel, Data Centers
• Cable Diameter: Approx. 3.0 mm

Recommendations

For optimal performance, ensure that connectors are cleaned before each use and that the cable is not bent beyond its minimum bend radius. This cable is compatible with standard MTP adapters and cassettes. Pair with EFB-Elektronik MTP cassettes and panels for a complete solution.
