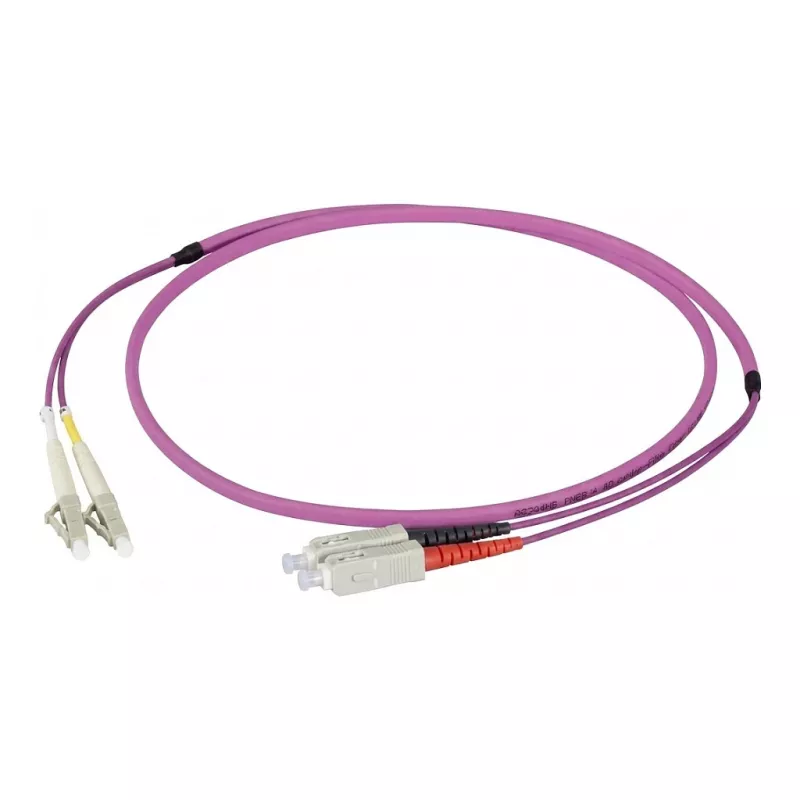

EFB-Elektronik Latiguillo Dúplex LC-LC 50/125 µm OM4 LSZH Erika Violet Flat Twin 3x5 mm 7,5 m

The EFB-Elektronik Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for demanding network environments. With OM4 multimode fiber, it supports high-speed data transmission up to 100 GbE, making it ideal for data centers, enterprise networks, and telecommunications infrastructure. The cable features a flat twin construction (3x5 mm) with a low smoke zero halogen (LSZH) jacket, ensuring safety and reduced toxic emissions in case of fire. The distinctive erika violet color aids in easy identification and cable management.

Advantages

This patch cable offers exceptional bandwidth and low attenuation, ensuring reliable and high-speed data transfer. The LSZH jacket provides enhanced safety in enclosed spaces, while the flat twin design saves space and improves airflow in cable trays. The LC duplex connectors ensure secure and stable connections with low insertion loss.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications systems
• High-speed storage area networks (SAN)
• Fiber-to-the-desk (FTTD) applications

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Connector Type A: LC
• Connector Type B: LC
• Fiber Type: Multimode
• Fiber Class: OM4
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Erika Violet
• Cable Length: 7.5 m
• Cable Construction: Flat Twin
• Outer Cable Dimensions: 3 x 5 mm
• Insertion Loss (Max.): < 0.3 dB
• Return Loss (Min.): > 30 dB
• Operating Temperature: -20°C to +70°C
• Attenuation @ 850nm: 2.3 dB/km
• Attenuation @ 1300nm: 0.6 dB/km
• Bandwidth @ 850nm (OFL): 4700 MHz·km
• Bandwidth @ 1300nm (OFL): 500 MHz·km
• Supported Protocols: 10GbE, 40GbE, 100GbE
• Standards Compliance: IEC 60794-2, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, ensure that connectors are clean and properly mated. Use appropriate cable management to avoid sharp bends and maintain signal integrity. This cable is compatible with standard LC duplex interfaces.
