EFB Elektronik O2513FT.30 Cable de conexión de fibra óptica OS2 SC/UPC a SC/UPC 30 m amarillo

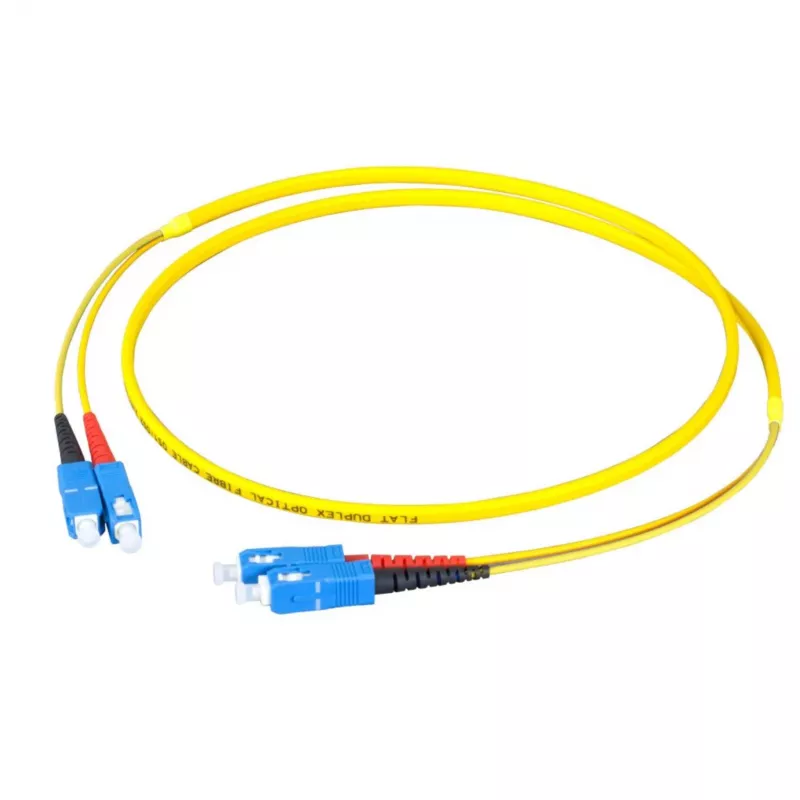

The EFB Elektronik O2513FT.30 is a high-quality fiber optic patch cable designed for indoor single-mode applications. With a length of 30 meters and duplex SC/UPC connectors on both ends, this cable ensures reliable and low-loss connections for data centers, telecommunications, and enterprise networks. The OS2 fiber mode and G.657.A1 bend-insensitive fiber provide excellent performance and durability.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) ensure optimal signal integrity. The LSZH jacket is halogen-free and flame retardant, making it safe for use in confined spaces. The yellow jacket color allows for easy identification of single-mode cables.

Suitable for

• Data center cabling
• Telecommunications networks
• Enterprise LAN backbones
• FTTx applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: OS2 (Single-Mode)
• Fiber Type: G.657.A1 (Bend-Insensitive)
• Connector Type A: SC/UPC
• Connector Type B: SC/UPC
• Cable Length: 30 m
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Fiber Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Insertion Loss (max.): ≤ 0.3 dB
• Return Loss (min.): ≥ 50 dB
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Cable Diameter: 3.0 mm
• Operating Temperature: -20 °C to 70 °C
• Application: Indoor
• Standards Compliance: IEC 60794-2, IEC 60332-1, IEC 61034, IEC 60754

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for high-speed data transmission up to 10 Gbps and beyond.
