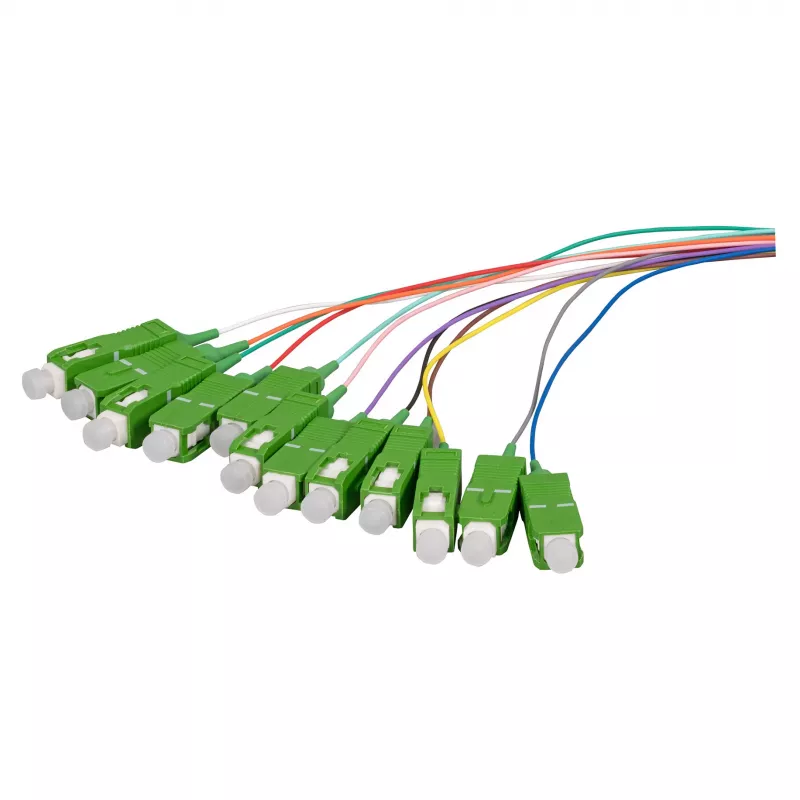

EFB Elektronik Pigtail de fibra SC/APC 9/125µm G.657A2 set de 12 colores 2m

The EFB Elektronik Fiber Pigtail SC/APC 9/125µm G.657A2 12-Color Set 2m is a high-quality fiber optic pigtail set designed for splicing, patch panels, ODFs, and data centers. Each set includes 12 individually color-coded pigtails with SC/APC connectors, ensuring easy identification and organization. The single-mode OS2 fiber with G.657.A2 bend-insensitive technology provides excellent performance and reliability.

Advantages

This pigtail set offers low insertion loss (max. 0.3 dB) and high return loss (min. 60 dB), ensuring optimal signal integrity. The 12-color coding according to DIN VDE 0888 simplifies installation and maintenance. The LSZH jacket material enhances safety by reducing smoke and toxic fumes in case of fire.

Suitable for

• Splicing in fiber optic networks
• Patch panels and ODFs
• Data centers and telecommunications
• FTTH (Fiber to the Home) applications

Key specifications

• Connector: SC/APC
• Fiber type: Single-mode OS2, G.657.A2
• Core/Cladding: 9/125 µm
• Length: 2 m
• Number of pigtails: 12
• Color coding: DIN VDE 0888 (12 colors)
• Jacket: 0.9 mm, LSZH
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 60 dB
• Ferrule: Zirconia ceramic
• Polish: APC
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with compatible SC/APC adapters and ensure proper cleaning before splicing. This pigtail set is ideal for high-density fiber management systems.
