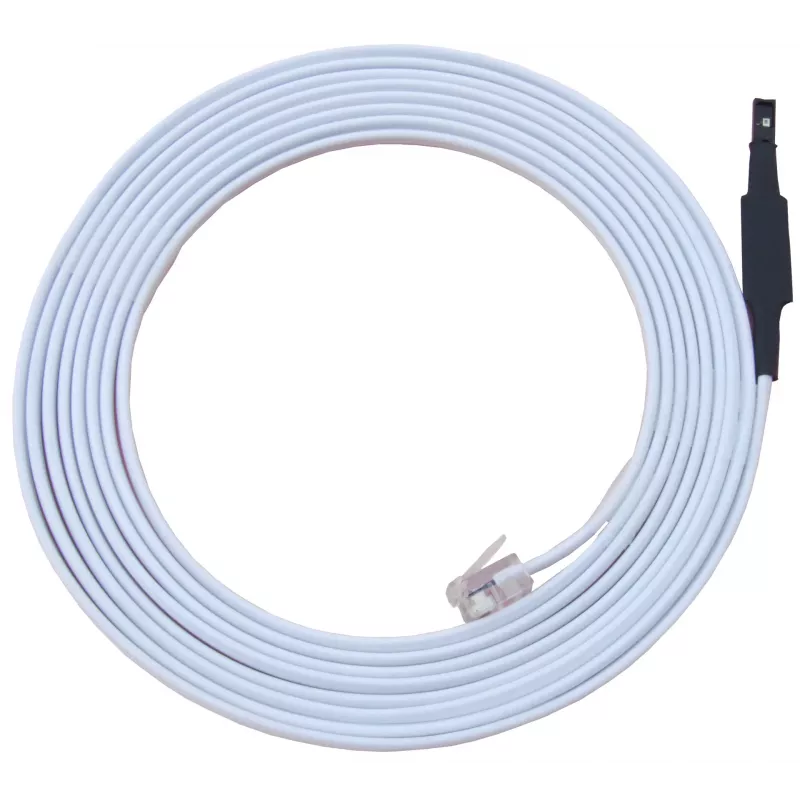

EFB Elektronik Sensor de humedad para DCM1002.1

The EFB Elektronik Humidity Sensor for DCM1002.1 is a high-precision digital sensor designed to monitor relative humidity and temperature in data center environments. It seamlessly integrates with the EFB DCM1002.1 Data Center Manager, providing accurate environmental data for optimal climate control and energy efficiency.

Advantages

This sensor offers reliable and precise measurements, ensuring your data center operates within safe environmental parameters. With a wide humidity measurement range of 0-100% RH and temperature range of -20°C to +80°C, it is suitable for various monitoring applications. The digital capacitive sensor technology delivers fast response times and long-term stability.

Suitable for

• Data center environmental monitoring
• Server room climate control
• HVAC system integration
• Industrial humidity and temperature sensing

Key specifications

• Product Type: Humidity and Temperature Sensor
• Compatibility: EFB Elektronik DCM1002.1 Data Center Manager
• Measured Parameters: Relative Humidity, Temperature
• Humidity Measurement Range: 0 - 100% RH
• Humidity Accuracy (20-80% RH): ±2% RH
• Humidity Accuracy (0-20%, 80-100% RH): ±3% RH
• Temperature Measurement Range: -20°C to +80°C
• Temperature Accuracy (5-60°C): ±0.3°C
• Temperature Accuracy (-20-5°C, 60-80°C): ±0.5°C
• Sensor Type: Digital, Capacitive (Humidity)
• Interface: RJ45
• Cable Length: 3 meters
• Ingress Protection (IP Rating): IP30
• Operating Temperature (Sensor): -20°C to +80°C
• Storage Temperature: -40°C to +85°C
• Power Supply: Powered via DCM1002.1

Recommendations

For optimal performance, install the sensor in a location representative of the overall environment, away from direct airflow or heat sources. Regularly calibrate according to manufacturer guidelines to maintain accuracy.
