EFB FTTH Cable de acometida interior de 3 mm LSOH, 2 fibras G.657.A2, CPR Dca

The EFB FTTH Indoor Drop Cable is a high-quality, bend-insensitive single-mode fiber optic cable designed for indoor fiber-to-the-home (FTTH) installations. With a compact 3 mm diameter and LSOH (Low Smoke Zero Halogen) jacket, it ensures safety and ease of installation in residential and commercial environments. The cable features 2 fibers conforming to ITU-T G.657.A2 standard, offering excellent bend performance and low attenuation.

Advantages

This drop cable provides reliable and high-speed data transmission for FTTH networks. Its bend-insensitive design allows for tight bends without signal loss, making it ideal for installations in confined spaces. The LSOH jacket reduces toxic smoke and halogen emissions in case of fire, enhancing safety. The cable is CPR Dca rated, meeting European fire safety standards for indoor use.

Suitable for

• FTTH indoor installations
• Fiber optic connections in apartments, offices, and homes
• Indoor cabling for telecommunications networks
• Bend-sensitive routing in corners and conduits

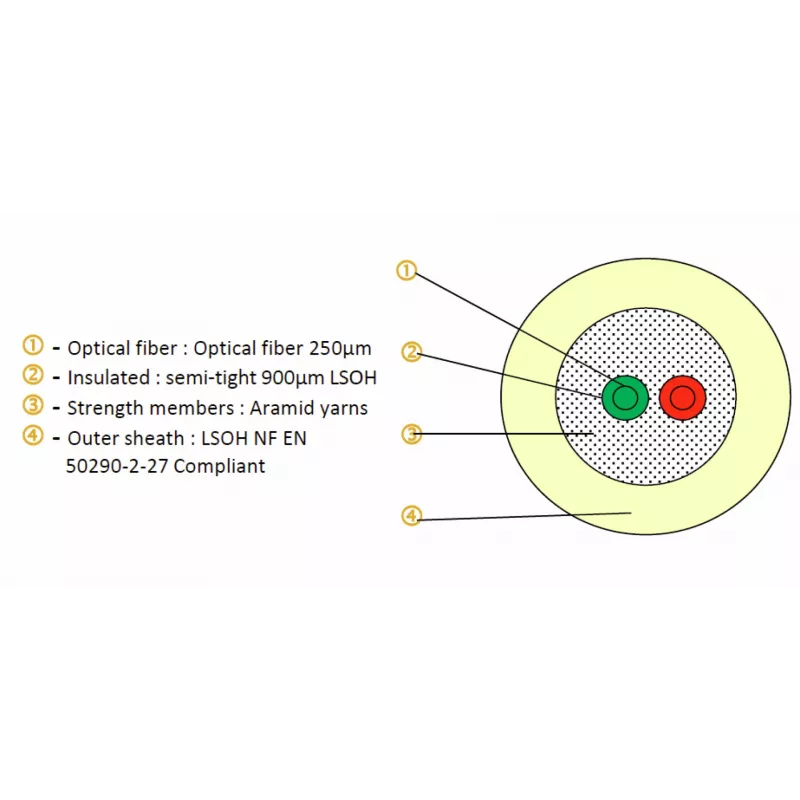

Key specifications

• Cable Type: FTTH Indoor Drop Cable
• Fiber Count: 2
• Fiber Type: Single-mode (SM) G.657.A2
• Cable Diameter: 3 mm
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• CPR Fire Performance: Dca
• Core/Cladding: 9/125 µm
• Minimum Bend Radius (Static): 7.5 mm
• Minimum Bend Radius (Dynamic): 15 mm
• Attenuation @ 1310nm: < 0.4 dB/km
• Attenuation @ 1550nm: < 0.3 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Cable Color: White

Recommendations

For optimal performance, use with compatible FTTH termination equipment and ensure proper handling to avoid excessive bending. This cable is suitable for indoor use only; for outdoor applications, consider an outdoor-rated cable.
