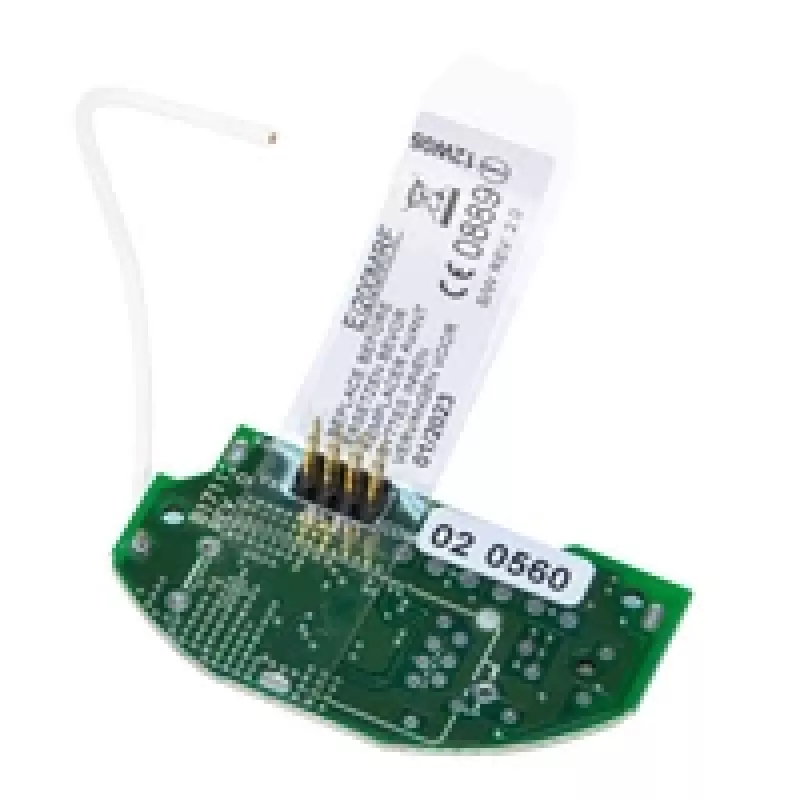

Ei Electronics Ei200MRF Módulo de interconexión inalámbrica para detector de CO - 868 MHz, 100 m de alcance, blanco

The Ei Electronics Ei200MRF is a wireless interlink module designed to connect compatible Ei Electronics carbon monoxide alarms, enabling them to communicate wirelessly. When one alarm detects CO, all interlinked alarms sound simultaneously, providing early warning throughout the property. The module operates at 868 MHz and can transmit, receive, and re-transmit RF signals to ensure reliable coverage.

Advantages

Wireless interconnection eliminates the need for hardwiring between alarms, making installation simple and flexible. The module supports up to 12 devices in a network, and its re-transmission capability extends the wireless range to cover larger homes or multiple floors. It is compatible with the Ei RadioLINK+ system for secure digital communication.

Suitable for

• Homes with multiple rooms or floors requiring interconnected CO alarms
• Retrofitting existing Ei Electronics CO alarms with wireless interlink capability
• New installations where wiring between alarms is impractical

Key specifications

• Product Type: Wireless Interlink Module
• Compatibility: Ei Electronics Ei208, Ei208D, Ei207D, Ei206D CO Alarms
• Wireless Technology: Radio Frequency (RF) at 868 MHz
• Interlink Type: Wireless Interconnection
• Functionality: Transmit, Receive, and Re-transmit RF signals
• Maximum Interlinked Devices: Up to 12
• Power Supply: Powered by the connected CO alarm
• Wireless Range: Up to 100m (free field), typically 30m indoors
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 15% to 95% RH (non-condensing)
• Housing Material: ABS Plastic
• Colour: White
• Approvals: CE, EN 50291-1:2018 (relevant for CO alarm compatibility)
• System Compatibility: Ei Electronics RadioLINK+ system

Recommendations

For optimal performance, install the module in a location that ensures good wireless coverage. Test the interlink function after installation. This module is not a standalone alarm; it must be used with a compatible Ei Electronics CO alarm.
