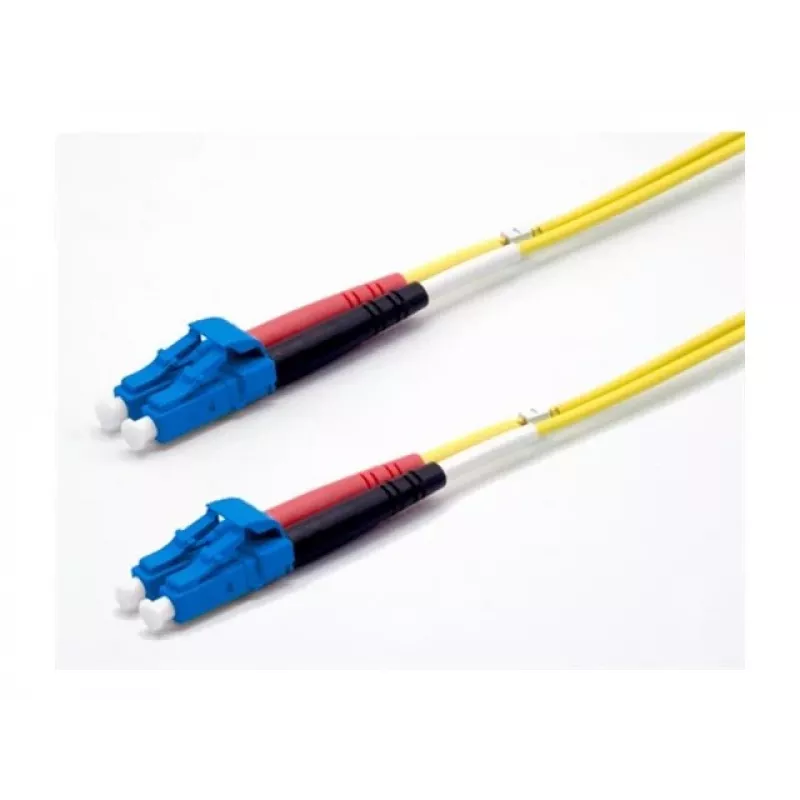

Ekivalan Cable de conexión de fibra óptica monomodo dúplex OS2 LC/LC, 9/125 µm, LSZH, amarillo, 50 m COZ008LCLC2SJ0500A

High-speed optical links over long distances demand a cable that maintains signal integrity without compromise. This 50-metre OS2 single-mode duplex patch cable with LC connectors on both ends delivers reliable performance for data centres, telecom rooms, and enterprise networks. Its 9/125 µm core and cladding are optimised for low attenuation, while the yellow LSZH jacket ensures safety in plenum and riser environments.

Who is it for

Network engineers and installers who need a dependable fibre connection between switches, routers, patch panels, or media converters. Ideal for backbone cabling, SAN, and FTTx deployments where single-mode fibre is specified.

Main features

• OS2 single-mode fibre, 9/125 µm, for long-reach transmission
• Duplex LC connectors on both ends for easy polarity management
• LSZH jacket: low smoke, zero halogen for safer indoor use
• 50 m length, ideal for structured cabling runs
• Ceramic ferrule for precise alignment and low insertion loss

Specifications

• Cable length: 50 m
• Fibre type: OS2 single-mode
• Core/cladding diameter: 9/125 µm
• Connector 1: LC Duplex
• Connector 2: LC Duplex
• Jacket material: LSZH
• Jacket colour: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation @ 1310 nm: ≤ 0.35 dB/km
• Attenuation @ 1550 nm: ≤ 0.25 dB/km
• Minimum bend radius: 10 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Tips

When routing this cable, respect the minimum bend radius to avoid microbending losses. Use dust caps on unused connectors to keep ferrules clean.
