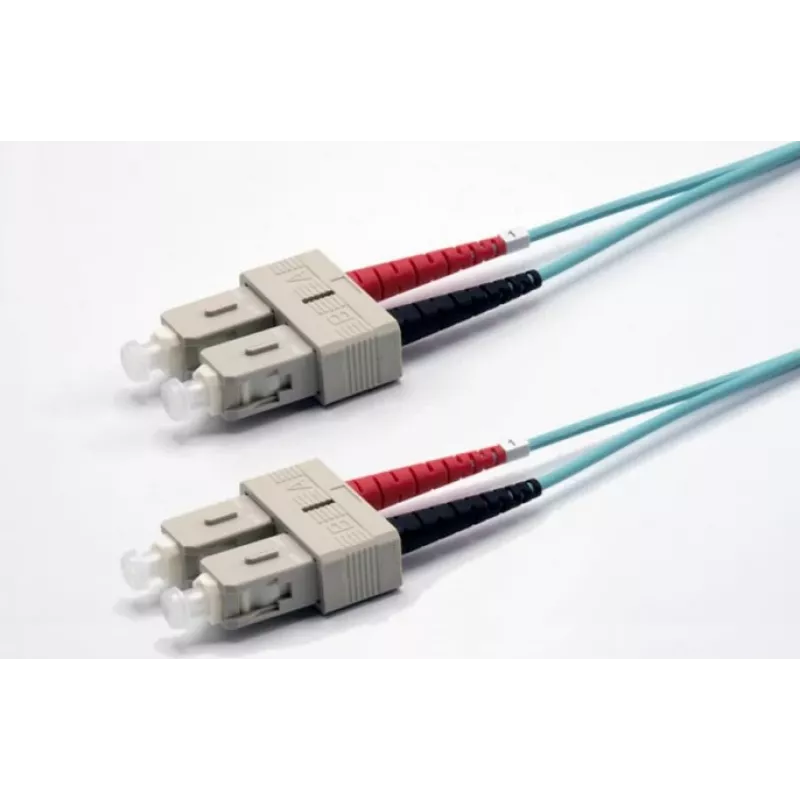

Ekivalan cable de conexión de fibra óptica OM3 dúplex SC/SC 1m aqua COZOM3DCDC2SA0010A

Data centers and high-speed networks often suffer from signal loss and interference when using outdated copper cabling. This OM3 duplex fiber patch cable provides a reliable 10 Gigabit Ethernet connection over short distances, ensuring clean, high-bandwidth transmission for demanding applications.

Who is it for

Network administrators and IT professionals who need a dependable, low-loss link between fiber optic equipment such as switches, routers, and servers in data centers, LANs, and SANs. It is ideal for installations where space is limited and a 1-meter length is sufficient.

Main features

• OM3 multimode fiber supports 10 Gigabit Ethernet up to 300 meters at 850 nm.
• Duplex construction with SC connectors on both ends for easy, secure connections.
• Aqua LSZH jacket is flame-retardant and low-smoke, suitable for indoor use.
• Low insertion loss (≤0.3 dB) and high return loss (≥30 dB) ensure signal integrity.
• 50/125 µm core/cladding diameter meets industry standards for OM3 fiber.

Specifications

• Cable type: Fiber optic patch cable, duplex
• Fiber type: OM3 multimode
• Core/cladding diameter: 50/125 µm
• Connectors: SC to SC, PC polish
• Length: 1.0 m
• Jacket material: LSZH
• Jacket colour: Aqua
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Bandwidth: 1500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Standards compliance: IEC 60793, TIA/EIA-568-C.3, ISO/IEC 11801

Tips

To maintain performance, avoid bending the cable beyond its specified bending radius and keep connectors clean using appropriate fiber cleaning tools. For longer runs, consider a higher OM class or single-mode fiber.
