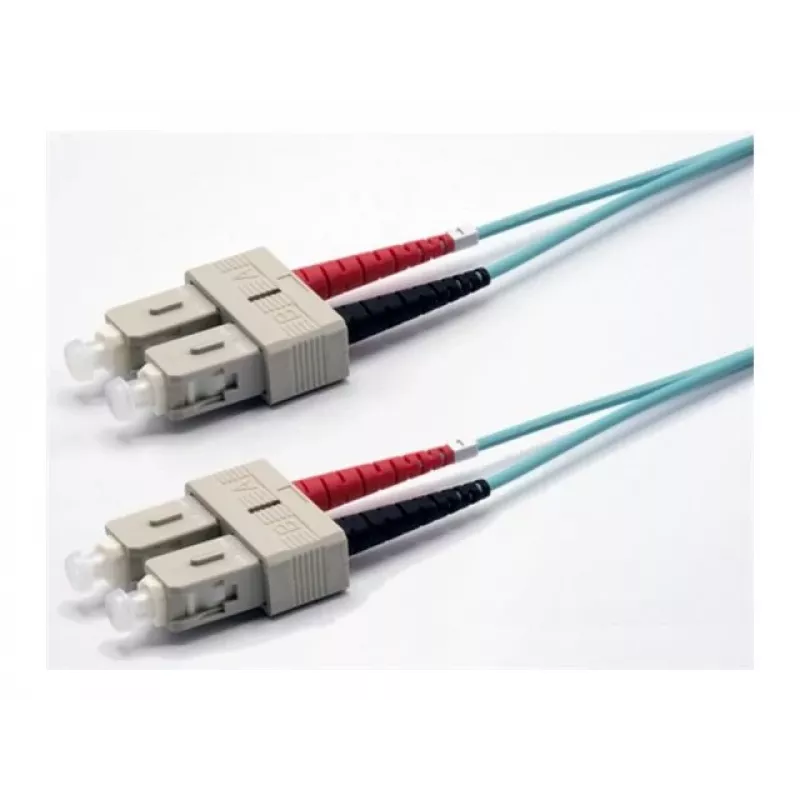

Ekivalan Cable de red de fibra óptica OM3 dúplex SC/SC 7 m aqua COZOM3DCDC2SA0070A

This Ekivalan OM3 duplex patch cable stands out with its 50/125 µm core and SC connectors on both ends, engineered for high-speed multimode links up to 100GbE. The aqua LSZH jacket keeps installations safe and tidy, while the 7-metre length bridges common rack-to-rack distances.

Highlights

• OM3 multimode fibre, 50/125 µm core/cladding
• Duplex SC to SC connectors
• 7.0 m length, aqua LSZH jacket
• Supports 1GbE, 10GbE, 40GbE, 100GbE
• Low insertion loss: < 0.3 dB

In daily use

The duplex construction keeps transmit and receive channels separate, simplifying polarity management in structured cabling. With a minimum return loss of 30 dB, signal reflections stay low, and the LSZH jacket emits minimal smoke and no halogen in the event of fire, making it suitable for enclosed spaces.

Full specifications

• Cable type: Fibre optic patch cable
• Fibre mode: Multimode
• Fibre class: OM3
• Core/cladding diameter: 50/125 µm
• Connector 1: SC
• Connector 2: SC
• Cable structure: Duplex
• Cable length: 7.0 m
• Jacket colour: Aqua
• Jacket material: LSZH
• Maximum insertion loss: < 0.3 dB
• Minimum return loss: > 30 dB
• Supported data rates: 1GbE, 10GbE, 40GbE, 100GbE
• Attenuation at 850 nm: 3.5 dB/km
• Attenuation at 1300 nm: 1.5 dB/km
• Operating temperature: -20°C to +70°C
• Compliance: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173

Final note

Built for dependable multimode performance in data centres and enterprise networks, this patch cable delivers the bandwidth and reliability modern fibre links demand.
