Eldon nVent Zócalo frontal/trasero 200x600 mm PF2060

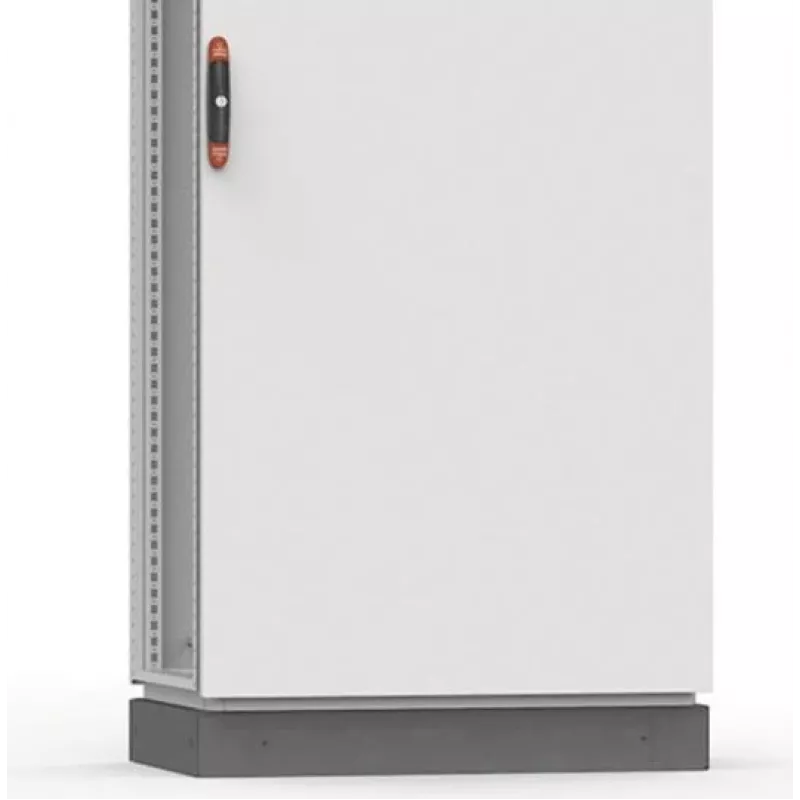

The Eldon nVent PF2060 plinth front/rear panel is a robust steel accessory designed for floor-standing enclosures. It provides a 200 mm high base for cable entry and improved stability, raising the enclosure off the floor. Suitable for nVent Eldon MAS, MCS, and MKS series enclosures with 600 mm width.

Advantages

Enhances cable management with ample space for cable entry. Increases enclosure stability and raises it from the floor for better airflow and protection. Powder coated for corrosion resistance and durability.

Suitable for

• Floor-standing enclosures requiring cable entry space
• nVent Eldon MAS, MCS, MKS series enclosures
• Indoor industrial and commercial applications

Key specifications

• Product Type: Plinth Front/Rear
• Material: Steel
• Finish: Powder Coated
• Colour: RAL 7035 (Light Grey)
• Plinth Height: 200 mm
• Enclosure Width Compatibility: 600 mm
• Mounting Type: Internal (from inside the enclosure)
• Units per Package: 1

Recommendations

For optimal cable management and stability, pair with matching rear plinth and side panels. Ensure enclosure width matches 600 mm.
